ECO-S2DA471DA Equivalent & Substitute Parts

Part Overview

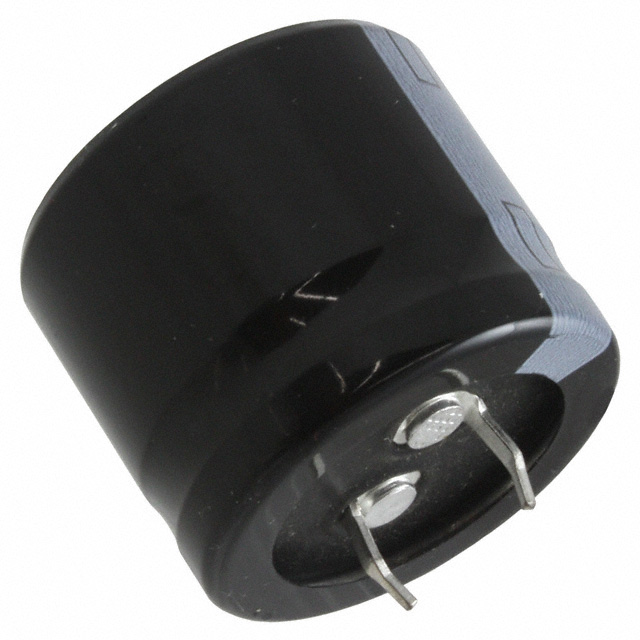

The ECO-S2DA471DA is a 470 µF, 200 V aluminum electrolytic capacitor in radial, can snap-in package manufactured by Panasonic Electronic Components. This component is classified as obsolete, making equivalent and substitute parts necessary for ongoing system support and new design implementations. The part operates across a temperature range of -40°C to 105°C with a 3000-hour lifetime rating at 105°C, suitable for general-purpose applications requiring stable capacitance and low equivalent series resistance.

Key Parameters

Parameter	Value
Capacitance	470 µF
Voltage Rating	200 V
Tolerance	±20%
ESR @ 120Hz	353 mOhm
Lifetime @ 105°C	3000 Hours
Operating Temperature	-40°C to 105°C
Lead Spacing	0.394" (10.00 mm)
Case Diameter	1.181" (30.00 mm)
Package Type	Radial, Can - Snap-In
Mounting Type	Through Hole
Polarization	Polar

Substitute Part Grouping Explanation

Substitute parts are classified into two categories based on electrical and mechanical compatibility:

Direct Equivalents (Same Voltage Rating - 200V): Direct substitutes maintain the original 200 V voltage specification and are mechanically and electrically interchangeable with the ECO-S2DA471DA. These parts share identical capacitance (470 µF), tolerance (±20%), lead spacing (10.00 mm), case diameter (30.00 mm), and mounting configuration (through-hole, snap-in). Variations in ESR and ripple current ratings remain within acceptable operational parameters for general-purpose applications.

Upgrade Options (Higher Voltage Rating - 250V): Upgrade substitutes provide 250 V voltage rating while maintaining all other critical parameters: 470 µF capacitance, ±20% tolerance, 10.00 mm lead spacing, 30.00 mm case diameter, and through-hole snap-in mounting. These parts are suitable for applications where higher voltage margin is beneficial, though they are not required for 200 V circuit operation.

Parameter Comparison

Part Number	Manufacturer	Capacitance	Voltage	Tolerance	ESR @ Frequency	Lifetime @ 105°C	Operating Temp	Lead Spacing	Case Diameter	Height (Max)	Product Status	RoHS Status
ECO-S2DA471DA	Panasonic	470 µF	200 V	±20%	353 mOhm @ 120Hz	3000 Hrs	-40°C to 105°C	10.00 mm	30.00 mm	27.00 mm	Obsolete	REACH Affected
B43504F2477M80	EPCOS - TDK	470 µF	200 V	±20%	270 mOhm @ 100Hz	3000 Hrs	-40°C to 105°C	10.00 mm	30.00 mm	27.20 mm	Active	ROHS3 Compliant
B43504F2477M87	EPCOS - TDK	470 µF	200 V	±20%	270 mOhm @ 100Hz	3000 Hrs	-40°C to 105°C	10.00 mm	30.00 mm	27.20 mm	Active	ROHS3 Compliant
LGU2D471MELB	Nichicon	470 µF	200 V	±20%	Not Specified	3000 Hrs	-40°C to 105°C	10.00 mm	30.00 mm	25.00 mm	Active	ROHS3 Compliant
250MXG470MEFCSN30X25	Rubycon	470 µF	250 V	±20%	Not Specified	3000 Hrs	-25°C to 105°C	10.00 mm	30.00 mm	27.00 mm	Active	ROHS3 Compliant
B43508G2477M	EPCOS - TDK	470 µF	250 V	±20%	250 mOhm @ 100Hz	3000 Hrs	-40°C to 105°C	10.00 mm	30.00 mm	27.00 mm	Active	ROHS3 Compliant
B43508G2477M2	EPCOS - TDK	470 µF	250 V	±20%	250 mOhm @ 100Hz	3000 Hrs	-40°C to 105°C	10.00 mm	30.00 mm	27.00 mm	Active	ROHS3 Compliant
B43508G2477M60	EPCOS - TDK	470 µF	250 V	±20%	250 mOhm @ 100Hz	3000 Hrs	-40°C to 105°C	10.00 mm	30.00 mm	27.00 mm	Active	ROHS3 Compliant
B43508G2477M62	EPCOS - TDK	470 µF	250 V	±20%	250 mOhm @ 100Hz	3000 Hrs	-40°C to 105°C	10.00 mm	30.00 mm	27.00 mm	Active	ROHS3 Compliant
B43508G2477M67	EPCOS - TDK	470 µF	250 V	±20%	250 mOhm @ 100Hz	3000 Hrs	-40°C to 105°C	10.00 mm	30.00 mm	27.00 mm	Active	ROHS3 Compliant
B43508G2477M7	EPCOS - TDK	470 µF	250 V	±20%	250 mOhm @ 100Hz	3000 Hrs	-40°C to 105°C	10.00 mm	30.00 mm	27.00 mm	Active	ROHS3 Compliant

Engineering Selection Recommendations

Direct Equivalent Selection (200V Category):

B43504F2477M80 and B43504F2477M87 from EPCOS - TDK Electronics are active production parts with ROHS3 compliance. Both maintain 470 µF capacitance, 200 V voltage rating, and ±20% tolerance. ESR is reduced to 270 mOhm at 100Hz compared to the original 353 mOhm at 120Hz, representing improved performance characteristics. Lead spacing and case diameter match the original specification exactly. These parts are suitable for direct replacement in existing designs.

LGU2D471MELB from Nichicon is an active production part with ROHS3 compliance. It maintains all critical electrical parameters and mechanical dimensions. Height is reduced to 25.00 mm compared to the original 27.00 mm, which may provide space advantages in compact layouts. This part is suitable for direct replacement where vertical clearance permits.

Upgrade Option Selection (250V Category):

All B43508G series parts from EPCOS - TDK Electronics (B43508G2477M, B43508G2477M2, B43508G2477M60, B43508G2477M62, B43508G2477M67, B43508G2477M7) are active production parts with ROHS3 compliance. These parts provide 250 V voltage rating while maintaining 470 µF capacitance and ±20% tolerance. ESR is 250 mOhm at 100Hz. All variants share identical electrical and mechanical specifications with differences in packaging or internal configuration only. These parts are suitable for applications requiring higher voltage margin.

250MXG470MEFCSN30X25 from Rubycon is an active production part with ROHS3 compliance. It provides 250 V voltage rating with 470 µF capacitance and ±20% tolerance. Operating temperature range is -25°C to 105°C, which is narrower at the lower end compared to the original -40°C specification. This part is suitable for applications where the lower temperature limit is not a constraint.

Frequently Asked Questions (FAQ)

Q: Can B43504F2477M80 or B43504F2477M87 be used as direct replacements for ECO-S2DA471DA?

A: Yes. Both parts maintain identical capacitance (470 µF), voltage rating (200 V), tolerance (±20%), lead spacing (10.00 mm), case diameter (30.00 mm), and through-hole snap-in mounting. ESR is lower (270 mOhm vs. 353 mOhm), which represents improved performance. Height difference is minimal (27.20 mm vs. 27.00 mm).

Q: What is the difference between direct equivalents and upgrade options?

A: Direct equivalents (B43504F2477M80, B43504F2477M87, LGU2D471MELB) maintain the original 200 V voltage rating. Upgrade options (B43508G series, 250MXG470MEFCSN30X25) provide 250 V voltage rating. Both categories share identical capacitance, tolerance, lead spacing, and case diameter. Upgrade options are suitable when higher voltage margin is desired but are not required for 200 V circuit operation.

Q: Does LGU2D471MELB fit in the same physical space as ECO-S2DA471DA?

A: LGU2D471MELB has a reduced height of 25.00 mm compared to the original 27.00 mm. Lead spacing (10.00 mm) and case diameter (30.00 mm) are identical. Verify vertical clearance in your application before selection.

Q: Are all substitute parts RoHS compliant?

A: All active production substitute parts listed are ROHS3 compliant. The original ECO-S2DA471DA is marked as REACH Affected. All substitute parts are REACH Unaffected.

Q: Can B43508G series parts be used in place of ECO-S2DA471DA?

A: B43508G series parts are suitable for applications where 250 V voltage rating is acceptable. All other parameters—capacitance (470 µF), tolerance (±20%), lead spacing (10.00 mm), case diameter (30.00 mm), and through-hole snap-in mounting—are compatible. These parts provide lower ESR (250 mOhm vs. 353 mOhm) and are active production items with ROHS3 compliance.

Q: What is the inventory status of these substitute parts?

A: B43504F2477M80 (1144 pcs), B43504F2477M87 (1001 pcs), LGU2D471MELB (913 pcs), 250MXG470MEFCSN30X25 (914 pcs), B43508G2477M (812 pcs), B43508G2477M2 (845 pcs), B43508G2477M60 (766 pcs), B43508G2477M62 (273,882 pcs), B43508G2477M67 (1069 pcs), and B43508G2477M7 (956 pcs) are all available as new original stock.
