ECO-S1VA562DA Equivalent & Substitute Parts

Part Overview

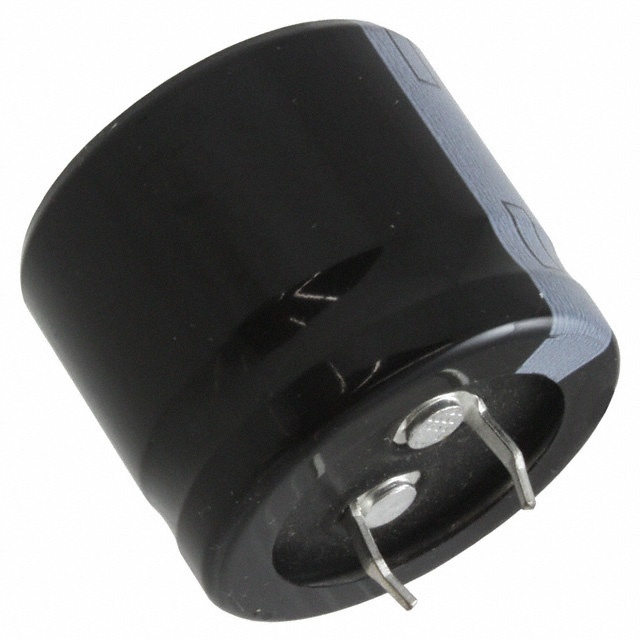

The ECO-S1VA562DA is a 5600 µF, 35 V aluminum electrolytic capacitor in radial, can snap-in package manufactured by Panasonic Electronic Components. This part is classified as obsolete, making equivalent and substitute parts necessary for ongoing system support and new designs. The TS-HA series capacitor is rated for 3000 hours at 105°C and is suitable for general-purpose applications requiring through-hole mounting with 10.00 mm lead spacing.

Key Parameters

Parameter	Value
Capacitance	5600 µF
Voltage Rating	35 V
Tolerance	±20%
Package Type	Radial, Can - Snap-In
Lead Spacing	0.394" (10.00 mm)
Diameter	1.181" (30.00 mm)
Height (Seated Max)	1.063" (27.00 mm)
Mounting Type	Through Hole
Operating Temperature Range	-40°C to 105°C
Polarization	Polar
Application	General Purpose

Substitute Part Grouping Explanation

Substitute parts for the ECO-S1VA562DA are classified based on electrical and mechanical compatibility. All substitute candidates maintain the following critical parameters:

Capacitance: 5600 µF (exact match)
Voltage Rating: 35 V (exact match)
Tolerance: ±20% (exact match)
Package: Radial, Can - Snap-In (exact match)
Lead Spacing: 0.394" (10.00 mm) (exact match)
Physical Dimensions: 1.181" Dia × 1.063" Height (exact match)
Mounting: Through Hole (exact match)
Operating Temperature: -40°C to 105°C (exact match)
Polarization: Polar (exact match)

Substitute parts are grouped by product status and compliance certifications. Direct manufacturer substitutes maintain equivalent electrical performance. Upgrade substitutes offer extended lifetime ratings. Parametric equivalents provide functional interchangeability with variations in ripple current specifications.

Parameter Comparison

Parameter	ECO-S1VA562DA (Panasonic)	381LX562M035K012 (CDE)	LGY1V562MELB25 (Nichicon)	B41252C7568M (EPCOS)	LGU1V562MELB (Nichicon)
Capacitance	5600 µF	5600 µF	5600 µF	5600 µF	5600 µF
Voltage Rating	35 V	35 V	35 V	35 V	35 V
Tolerance	±20%	±20%	±20%	±20%	±20%
Lifetime @ 105°C	3000 Hrs	3000 Hrs	5000 Hrs	2000 Hrs	3000 Hrs
ESR @ 120 Hz	74 mOhm	—	—	—	—
Ripple Current @ 120 Hz	2.4 A	2.8 A	2.0 A	2.43 A	2.12 A
Lead Spacing	0.394" (10.00 mm)	0.394" (10.00 mm)	0.394" (10.00 mm)	0.394" (10.00 mm)	0.394" (10.00 mm)
Diameter	1.181" (30.00 mm)	1.181" (30.00 mm)	1.181" (30.00 mm)	1.181" (30.00 mm)	1.181" (30.00 mm)
Height (Seated Max)	1.063" (27.00 mm)	1.063" (27.00 mm)	1.063" (27.00 mm)	1.063" (27.00 mm)	1.063" (27.00 mm)
Package Type	Radial, Can - Snap-In	Radial, Can - Snap-In	Radial, Can - Snap-In	Radial, Can - Snap-In	Radial, Can - Snap-In
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Operating Temperature	-40°C to 105°C	-40°C to 105°C	-40°C to 105°C	-40°C to 105°C	-40°C to 105°C
Polarization	Polar	Polar	Polar	Polar	Polar
Product Status	Obsolete	Active	Active	Active	Active
RoHS Status	Non-compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant

Engineering Selection Recommendations

381LX562M035K012 (Cornell Dubilier Electronics) — Direct manufacturer substitute with active product status and ROHS3 compliance. Electrical performance is equivalent to the original part with matching 3000-hour lifetime rating at 105°C. Ripple current specification of 2.8 A at 120 Hz exceeds the original 2.4 A rating, providing margin for thermal management.

LGY1V562MELB25 (Nichicon) — Upgrade substitute offering extended lifetime of 5000 hours at 105°C compared to the original 3000-hour rating. Active product status with ROHS3 compliance. Suitable for applications requiring enhanced reliability and extended service life.

B41252C7568M (EPCOS - TDK Electronics) — Similar substitute with active product status and ROHS3 compliance. Lifetime rating of 2000 hours at 105°C is lower than the original specification. Ripple current of 2.43 A at 120 Hz is comparable to the original part.

LGU1V562MELB (Nichicon) — Parametric equivalent with active product status and ROHS3 compliance. Lifetime rating matches the original at 3000 hours at 105°C. Ripple current specification of 2.12 A at 120 Hz is within acceptable range for general-purpose applications.

All substitute parts maintain identical physical dimensions, lead spacing, and mounting configuration, ensuring direct mechanical compatibility with existing PCB layouts.

Frequently Asked Questions (FAQ)

Q: Can I use any of these substitute parts as a direct replacement for the ECO-S1VA562DA?

A: All listed substitute parts maintain identical capacitance (5600 µF), voltage rating (35 V), tolerance (±20%), physical dimensions, lead spacing (10.00 mm), and mounting type (through-hole, radial snap-in). They are mechanically and electrically compatible for direct substitution in PCB designs.

Q: What is the difference between the substitute parts?

A: The primary differences are product status, lifetime ratings at 105°C, and compliance certifications. The 381LX562M035K012, LGY1V562MELB25, B41252C7568M, and LGU1V562MELB are all active products with ROHS3 compliance, whereas the original ECO-S1VA562DA is obsolete and non-compliant. Lifetime ratings range from 2000 to 5000 hours at 105°C.

Q: Which substitute offers the best reliability?

A: The LGY1V562MELB25 offers the highest lifetime rating at 5000 hours at 105°C, providing extended service life compared to the original 3000-hour specification. The 381LX562M035K012 and LGU1V562MELB match the original 3000-hour rating.

Q: Are all substitutes RoHS compliant?

A: Yes. All substitute parts are ROHS3 compliant. The original ECO-S1VA562DA is RoHS non-compliant, making these substitutes necessary for applications requiring regulatory compliance.

Q: Will these parts fit in the same PCB footprint?

A: Yes. All substitute parts maintain identical lead spacing (0.394" / 10.00 mm), diameter (1.181" / 30.00 mm), and seated height (1.063" / 27.00 mm). They are designed for direct PCB layout compatibility without modification.

Q: What is the difference in ripple current specifications?

A: Ripple current ratings vary slightly among substitutes. The 381LX562M035K012 offers 2.8 A at 120 Hz, the B41252C7568M offers 2.43 A, the LGU1V562MELB offers 2.12 A, and the LGY1V562MELB25 offers 2.0 A at 120 Hz. The original part is rated at 2.4 A. Selection depends on application ripple current requirements.

Q: Can I use these parts interchangeably in my design?

A: Yes, within the constraints of your application's ripple current and lifetime requirements. All parts share identical electrical ratings (5600 µF, 35 V, ±20%) and physical dimensions. Verify that the ripple current specification of your chosen substitute meets or exceeds your application's requirements.
