ECO-S1CP103CA Equivalent & Substitute Parts

Part Overview

The ECO-S1CP103CA is a 10000 µF, 16 V aluminum electrolytic capacitor in radial, can snap-in package manufactured by Panasonic Electronic Components. This part is classified as obsolete, making equivalent and substitute parts necessary for ongoing system support and new designs. The capacitor is rated for general purpose applications with a 3000-hour lifetime at 85°C and operates across the temperature range of -40°C to 85°C.

Key Parameters

Parameter	Value
Capacitance	10000 µF
Voltage Rating	16 V
Tolerance	±20%
ESR @ 120Hz	75 mOhm
Lifetime @ Temperature	3000 Hrs @ 85°C
Operating Temperature Range	-40°C ~ 85°C
Package Type	Radial, Can - Snap-In
Lead Spacing	0.394" (10.00 mm)
Diameter	0.984" (25.00 mm)
Height	1.063" (27.00 mm)
Mounting Type	Through Hole
Polarization	Polar

Substitute Part Grouping Explanation

Substitute parts for the ECO-S1CP103CA are classified into four categories based on electrical and mechanical compatibility:

Direct Equivalent (380LX103M016J012): Maintains identical electrical specifications including 75 mOhm ESR @ 120Hz and 3000-hour lifetime @ 85°C. Physical dimensions and lead spacing are identical. This part is manufactured by Cornell Dubilier Electronics and is in active production status.

Upgraded Performance (381LX103M016J012, LGU1C103MELA, LGY1C103MELA25): These parts maintain the same capacitance, voltage rating, tolerance, and physical dimensions. They offer extended operating temperature range (-40°C ~ 105°C) and longer lifetime ratings (3000 or 5000 hours @ 105°C). These upgrades provide improved thermal performance while maintaining mechanical compatibility.

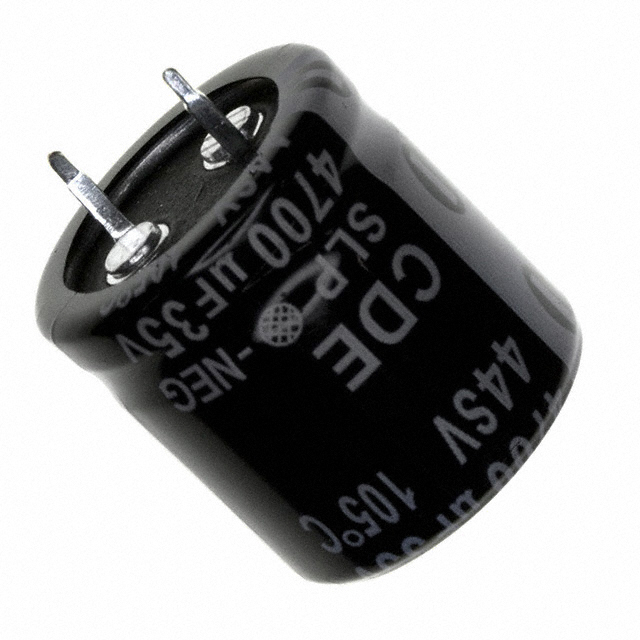

Similar Specification (SLP103M016C1P3, SLPX103M016A3P3): These parts share the same capacitance, voltage, tolerance, and lead spacing. They feature lower ESR values (66 mOhm @ 120Hz) and different ripple current ratings. Physical dimensions vary: SLP103M016C1P3 has a height of 0.984" (25.00 mm), and SLPX103M016A3P3 has a diameter of 0.866" (22.00 mm) and height of 1.181" (30.00 mm).

Parametric Equivalent (109LBB016M2CC): Matches core electrical parameters with 66.3 mOhm ESR @ 120Hz and identical physical dimensions to the main part. Manufactured by Cornell Dubilier / Illinois Capacitor.

Parameter Comparison

Part Number	Manufacturer	Capacitance	Voltage	Tolerance	ESR @ 120Hz	Lifetime @ Temp	Operating Temp	Diameter	Height	Status
ECO-S1CP103CA	Panasonic	10000 µF	16 V	±20%	75 mOhm	3000 Hrs @ 85°C	-40°C ~ 85°C	0.984" (25.00 mm)	1.063" (27.00 mm)	Obsolete
380LX103M016J012	Cornell Dubilier	10000 µF	16 V	±20%	75 mOhm	3000 Hrs @ 85°C	-40°C ~ 85°C	0.984" (25.00 mm)	1.063" (27.00 mm)	Active
381LX103M016J012	Cornell Dubilier	10000 µF	16 V	±20%	—	3000 Hrs @ 105°C	-40°C ~ 105°C	0.984" (25.00 mm)	1.063" (27.00 mm)	Active
LGU1C103MELA	Nichicon	10000 µF	16 V	±20%	—	3000 Hrs @ 105°C	-40°C ~ 105°C	0.984" (25.00 mm)	1.063" (27.00 mm)	Active
LGY1C103MELA25	Nichicon	10000 µF	16 V	±20%	—	5000 Hrs @ 105°C	-40°C ~ 105°C	0.984" (25.00 mm)	1.063" (27.00 mm)	Active
SLP103M016C1P3	Cornell Dubilier	10000 µF	16 V	±20%	66 mOhm	3000 Hrs @ 105°C	-40°C ~ 105°C	0.984" (25.00 mm)	0.984" (25.00 mm)	Active
SLPX103M016A3P3	Cornell Dubilier	10000 µF	16 V	±20%	66 mOhm	3000 Hrs @ 85°C	-40°C ~ 85°C	0.866" (22.00 mm)	1.181" (30.00 mm)	Active
109LBB016M2CC	Cornell Dubilier / Illinois Capacitor	10000 µF	16 V	±20%	66.3 mOhm	3000 Hrs @ 85°C	-40°C ~ 85°C	0.984" (25.00 mm)	1.063" (27.00 mm)	Active

Engineering Selection Recommendations

For Direct Replacement: The 380LX103M016J012 from Cornell Dubilier provides the most direct substitution. It maintains identical electrical specifications, physical dimensions, and thermal ratings. This part is in active production status and ROHS3 compliant.

For Enhanced Thermal Performance: The 381LX103M016J012 and LGU1C103MELA offer extended operating temperature range to 105°C with identical mechanical fit. These are suitable for applications requiring improved thermal margin. The LGY1C103MELA25 provides the longest lifetime rating at 5000 hours @ 105°C.

For Dimensional Constraints: The SLP103M016C1P3 maintains the original diameter but reduces height to 0.984" (25.00 mm). The SLPX103M016A3P3 has a smaller diameter of 0.866" (22.00 mm) and increased height of 1.181" (30.00 mm), requiring verification of available board space.

For Compliance: All substitute parts listed are ROHS3 compliant and in active production status, ensuring long-term availability and regulatory compliance.

Frequently Asked Questions (FAQ)

Q: Can I use 380LX103M016J012 as a direct replacement for ECO-S1CP103CA?

A: Yes. The 380LX103M016J012 maintains identical capacitance (10000 µF), voltage rating (16 V), tolerance (±20%), ESR (75 mOhm @ 120Hz), lifetime (3000 Hrs @ 85°C), and physical dimensions (0.984" diameter, 1.063" height, 10.00 mm lead spacing). It is a direct electrical and mechanical equivalent.

Q: What is the advantage of using 381LX103M016J012 or LGY1C103MELA25 over the direct equivalent?

A: These parts extend the operating temperature range to -40°C ~ 105°C and provide longer lifetime ratings (3000 or 5000 hours @ 105°C). They are suitable for applications requiring improved thermal performance or extended service life while maintaining identical mechanical compatibility.

Q: Are there dimensional differences I need to consider?

A: Most substitute parts maintain the original dimensions (0.984" diameter, 1.063" height). The SLP103M016C1P3 has a reduced height of 0.984" (25.00 mm). The SLPX103M016A3P3 has a smaller diameter of 0.866" (22.00 mm) and increased height of 1.181" (30.00 mm). Verify available board space before selection.

Q: What is the difference between ESR specifications?

A: The main part and 380LX103M016J012 specify 75 mOhm ESR @ 120Hz. Alternative parts such as SLP103M016C1P3, SLPX103M016A3P3, and 109LBB016M2CC specify lower ESR values of 66 to 66.3 mOhm @ 120Hz, indicating improved high-frequency performance characteristics.

Q: Are all substitute parts RoHS compliant?

A: Yes. All substitute parts listed are ROHS3 compliant and in active production status, ensuring regulatory compliance and long-term availability.

Q: Can I use SLPX103M016A3P3 if my PCB has limited space?

A: The SLPX103M016A3P3 has a smaller diameter (0.866" vs. 0.984") but increased height (1.181" vs. 1.063"). Verify that your PCB layout accommodates both the reduced radial footprint and the increased vertical clearance before selection.
