ECE-P2GP272HA Equivalent & Substitute Parts

Part Overview

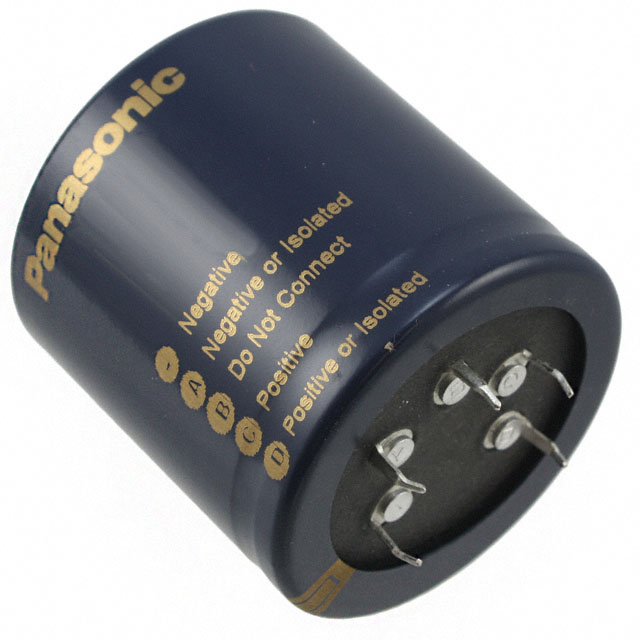

The ECE-P2GP272HA is a 2700 µF, 400 V aluminum electrolytic capacitor manufactured by Panasonic Electronic Components in the T-UP series. This radial, can-style snap-in capacitor with 5 leads is designed for general-purpose applications requiring high capacitance and voltage ratings. The part is currently obsolete, making equivalent substitutes necessary for ongoing system maintenance and new designs requiring compatible specifications.

Substiute Parts

ECE-P2GP272HA

Panasonic Electronic ComponentsIn Stock: 654ECE-P2GP272HA Datasheet

Current PartRFQ

382LX272M400B102VS

Cornell Dubilier Electronics (CDE)In Stock: 1142382LX272M400B102VS Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the ECE-P2GP272HA is determined by strict equivalence across the following critical parameters:

• Capacitance value: 2700 µF (exact match required)
• Voltage rating: 400 V (exact match required)
• Tolerance: ±20% (exact match required)
• Package configuration: Radial, Can - Snap-In - 5 Lead (exact match required)
• Mounting type: Through Hole (exact match required)
• Operating temperature range: -25°C ~ 85°C (minimum requirement)
• Lifetime specification: 3000 Hrs @ 85°C (minimum requirement)
• Polarization: Polar (exact match required)
• Physical dimensions: 1.969" Dia (50.00mm) (exact match required)

The substitute part 382LX272M400B102VS from Cornell Dubilier Electronics meets all these criteria and is classified as an active product with current availability.

Parameter Comparison

Engineering Selection Recommendations

The 382LX272M400B102VS from Cornell Dubilier Electronics is a direct functional equivalent to the obsolete ECE-P2GP272HA. Both parts share identical electrical specifications (2700 µF, 400 V, ±20% tolerance) and mechanical packaging (Radial, Can - Snap-In - 5 Lead, 50mm diameter). The substitute part maintains the same operating temperature range and lifetime rating.

The 382LX272M400B102VS is currently in active production with confirmed inventory availability. This part carries ROHS3 compliance and REACH unaffected status, meeting modern regulatory requirements. The height difference of 2.079mm (107.00mm vs. 105.00mm) is within typical mechanical tolerance for snap-in capacitor installations and does not affect electrical performance or standard PCB layout compatibility.

Frequently Asked Questions (FAQ)

Q: Can the 382LX272M400B102VS directly replace the ECE-P2GP272HA in existing designs?

A: Yes. Both parts are electrically and mechanically equivalent across all critical parameters: 2700 µF capacitance, 400 V voltage rating, ±20% tolerance, identical package type (Radial, Can - Snap-In - 5 Lead), and matching operating temperature range (-25°C ~ 85°C). The 2.079mm height difference is within standard mechanical tolerances for through-hole snap-in installations.

Q: What is the significance of the product status difference?

A: The ECE-P2GP272HA is obsolete and no longer manufactured by Panasonic. The 382LX272M400B102VS is an active product in current production by Cornell Dubilier Electronics, ensuring long-term availability and supply chain continuity.

Q: Are there compliance differences between these parts?

A: The 382LX272M400B102VS carries ROHS3 compliance and REACH unaffected status. The original ECE-P2GP272HA compliance information is not specified in available documentation. For applications requiring specific regulatory compliance, the CDE substitute meets modern environmental standards.

Q: Does the ESR specification affect substitution eligibility?

A: The ECE-P2GP272HA specifies 73 mOhm @ 120 Hz ESR. The 382LX272M400B102VS does not provide ESR data in available specifications. Both parts meet the identical 3000 Hrs @ 85°C lifetime requirement, which is the controlling reliability parameter for this application category.

Q: Are the snap-in lead configurations identical?

A: Yes. Both parts use the same Radial, Can - Snap-In - 5 Lead configuration with 50mm diameter housings, ensuring direct mechanical and electrical compatibility in existing PCB layouts and mounting fixtures.
