ECE-P2DP103HA Equivalent & Substitute Parts

Part Overview

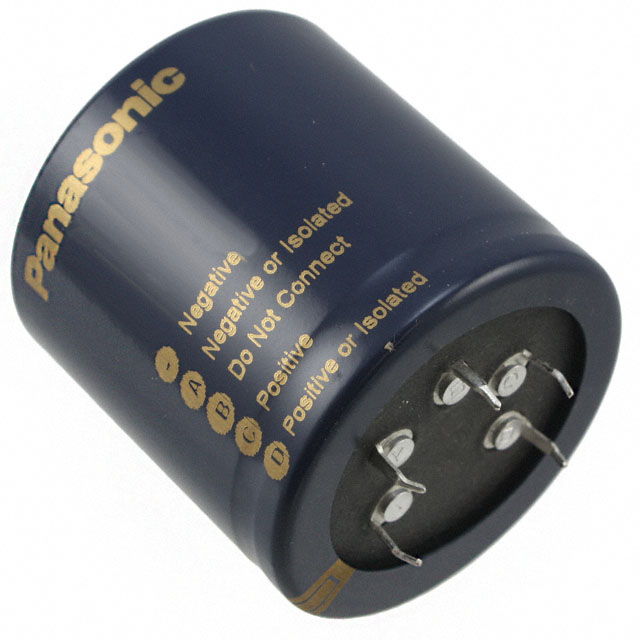

The ECE-P2DP103HA is a 10000 µF, 200 V aluminum electrolytic capacitor manufactured by Panasonic Electronic Components. This radial, can-style snap-in capacitor with 5 leads is designed for general purpose applications requiring high capacitance and voltage ratings. The part is classified as obsolete, making identification of equivalent substitute components essential for ongoing system support and procurement planning.

Substiute Parts

ECE-P2DP103HA

Panasonic Electronic ComponentsIn Stock: 1170ECE-P2DP103HA Datasheet

Current PartRFQ

382LX103M200B102VS

Cornell Dubilier Electronics (CDE)In Stock: 1784382LX103M200B102VS Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the ECE-P2DP103HA is determined by strict equivalence across the following critical parameters:

• Capacitance value: 10000 µF (exact match required)
• Voltage rating: 200 V (exact match required)
• Tolerance: ±20% (exact match required)
• Package type: Radial, Can - Snap-In - 5 Lead (exact match required)
• Physical dimensions: 1.969" diameter, maximum height compatibility
• Operating temperature range: -40°C ~ 85°C (minimum requirement)
• Lifetime rating: 3000 Hrs @ 85°C (minimum requirement)
• Polarization: Polar (exact match required)
• Mounting: Through Hole (exact match required)

The substitute part 382LX103M200B102VS from Cornell Dubilier Electronics meets all critical electrical and mechanical parameters for direct substitution.

Parameter Comparison

Engineering Selection Recommendations

The 382LX103M200B102VS from Cornell Dubilier Electronics is a direct functional equivalent to the obsolete ECE-P2DP103HA. Both components share identical electrical specifications (10000 µF, 200 V, ±20% tolerance) and mechanical form factors (radial snap-in package, 50mm diameter, through-hole mounting).

The substitute part offers the advantage of active product status, ensuring continued availability and supply chain stability. The 382LX103M200B102VS carries ROHS3 compliance and REACH unaffected status, meeting modern regulatory requirements. The height difference of 2mm (107mm vs. 105mm maximum) is within typical PCB layout tolerances for through-hole mounted capacitors and does not constitute a functional limitation.

Frequently Asked Questions (FAQ)

Q: Can the 382LX103M200B102VS be used as a direct replacement for the ECE-P2DP103HA?

A: Yes. Both components have identical capacitance (10000 µF), voltage rating (200 V), tolerance (±20%), package type (radial snap-in 5-lead), and operating temperature range (-40°C ~ 85°C). The physical dimensions are compatible for through-hole PCB mounting.

Q: What is the significance of the height difference between the two parts?

A: The ECE-P2DP103HA has a maximum seated height of 4.134" (105.00mm), while the 382LX103M200B102VS measures 4.213" (107.00mm). This 2mm difference is typical among equivalent aluminum electrolytic capacitors and does not affect electrical performance or standard PCB layout requirements.

Q: Why is the ECE-P2DP103HA listed as obsolete?

A: Panasonic has discontinued this part number. The 382LX103M200B102VS from Cornell Dubilier Electronics is an active equivalent that provides the same electrical and mechanical functionality for new designs and system maintenance.

Q: Are there compliance differences between the two parts?

A: The 382LX103M200B102VS carries ROHS3 compliance and REACH unaffected status. The ECE-P2DP103HA compliance information is not specified in available documentation. For applications requiring regulatory compliance certification, the Cornell Dubilier part is the appropriate selection.

Q: What parameters must match exactly for substitution?

A: Capacitance value, voltage rating, tolerance, package type, polarization, and operating temperature range must all match exactly. The 382LX103M200B102VS meets all these requirements for the ECE-P2DP103HA.
