EB-CP-RJ45-F1 Equivalent & Substitute Parts

Part Overview

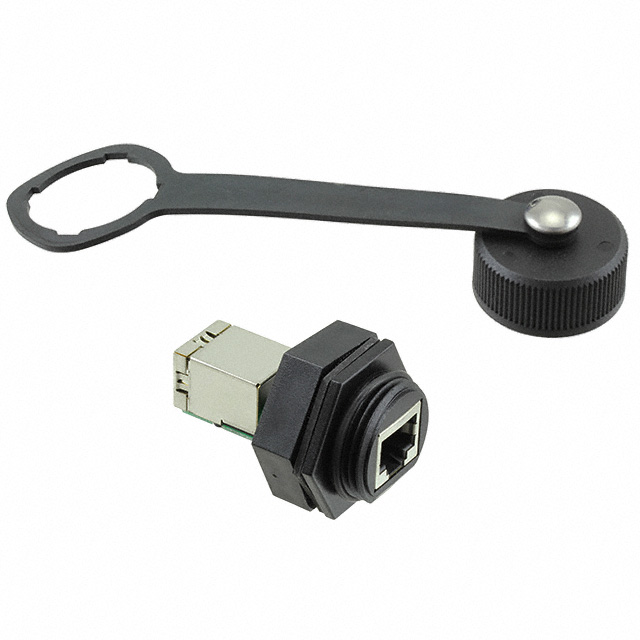

The EB-CP-RJ45-F1 is a modular jack connector manufactured by Red Lion Controls, designed for 8-position 8-contact (8p8c) RJ45 Ethernet applications. This unshielded, straight-orientation connector features panel mount bulkhead installation with IDC termination, circular threaded coupling, cover, and strain relief. The connector meets IP67 ingress protection standards for dust-tight and waterproof operation.

The EB-CP-RJ45-F1 is classified as obsolete. Identifying equivalent substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing system maintenance and production requirements.

Substiute Parts

EB-CP-RJ45-F1

Red Lion ControlsIn Stock: 1007EB-CP-RJ45-F1 Datasheet

Current PartRFQ

EB-RJF-BLKHD-1

Red Lion ControlsIn Stock: 1123EB-RJF-BLKHD-1 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the EB-CP-RJ45-F1 is based on strict equivalence of the following critical parameters:

Electrical & Functional Parameters:

• Connector type: Jack
• Contact configuration: 8p8c (RJ45, Ethernet)
• Port and row count: 1 port, 1 row
• Termination method: IDC
• Shielding: Unshielded

Mechanical & Environmental Parameters:

• Mounting type: Panel Mount, Bulkhead
• Orientation: Straight
• Ingress protection: IP67 (Dust Tight, Waterproof)
• Tab direction: User Selectable
• Features: Circular Threaded Coupling, Strain Relief

Regulatory & Compliance Parameters:

• Moisture Sensitivity Level: 1 (Unlimited)
• REACH Status: REACH Unaffected
• ECCN: EAR99

The substitute part EB-RJF-BLKHD-1 maintains all critical parameters required for functional and mechanical compatibility with the obsolete EB-CP-RJ45-F1.

Parameter Comparison

Engineering Selection Recommendations

The EB-RJF-BLKHD-1 is the manufacturer-recommended substitute for the obsolete EB-CP-RJ45-F1. Both connectors are manufactured by Red Lion Controls and maintain functional and mechanical equivalence across all critical parameters.

Product Status Consideration: The EB-CP-RJ45-F1 is obsolete, while the EB-RJF-BLKHD-1 is active. The active status of the substitute part ensures ongoing availability and supply chain support.

Compliance & Certification: Both parts maintain REACH Unaffected status and EAR99 ECCN classification. The EB-RJF-BLKHD-1 provides additional ROHS3 compliance certification and specified operating temperature range (-40°C ~ 85°C), supporting broader regulatory requirements.

Inventory & Availability: The EB-RJF-BLKHD-1 is available in bulk packaging with 1051 pieces in stock, compared to 983 pieces of the obsolete EB-CP-RJ45-F1.
