Switchcraft E3M Circular Connector - Equivalent & Substitute Parts

Part Overview

The Switchcraft E3M is a 3-position circular connector receptacle with male pins, designed for panel mount applications in audio and instrumentation systems. This connector features a shielded XLR configuration with solder termination, latch lock fastening, and operates across a temperature range of -55°C to 85°C. The product is currently active and ROHS3 compliant, making it suitable for modern electronic assemblies requiring reliable signal transmission in professional audio and measurement applications.

Substitute parts are identified when equivalent electrical and mechanical parameters align with the main part specifications, enabling direct replacement in compatible system designs.

Substiute Parts

E3M

Switchcraft Inc.In Stock: 814E3M Datasheet

Current PartRFQ

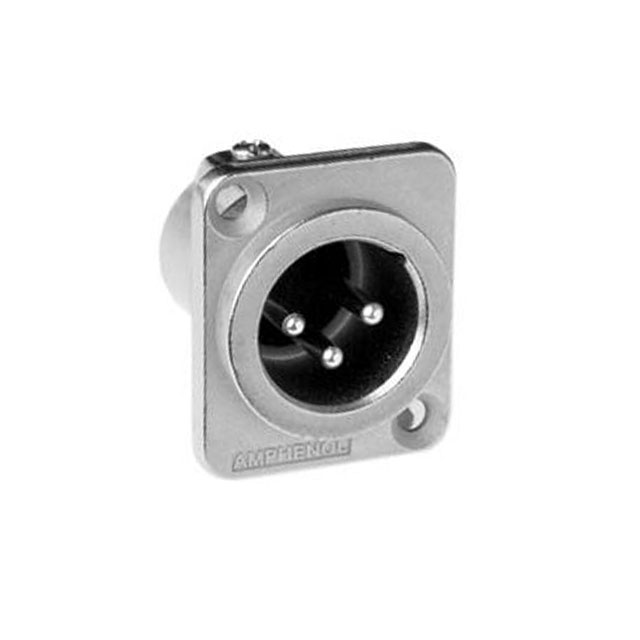

AC3MMDZ

Amphenol AudioIn Stock: 1785AC3MMDZ Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Switchcraft E3M is determined by the following critical parameters:

• Connector Configuration: Receptacle with male pins, 3-position XLR format
• Mechanical Interface: Panel mount with flange mounting feature and keyed orientation
• Electrical Characteristics: Shielded design with silver contact finish
• Termination Method: Solder-based connection
• Environmental Compliance: ROHS3 and REACH compliance status

The substitute part AC3MMDZ from Amphenol Audio meets the core electrical and mechanical requirements for XLR 3-position receptacle applications. Both parts share identical connector type, position count, shell size, mounting configuration, material composition, and compliance certifications. Variations in fastening type (latch lock versus push-pull) and operating temperature range represent design differences that do not preclude functional substitution in standard audio and instrumentation circuits.

Parameter Comparison

Engineering Selection Recommendations

Both the Switchcraft E3M and Amphenol AC3MMDZ connectors are active products with current manufacturing status and full ROHS3 compliance, ensuring availability and regulatory alignment for new designs and production environments.

The Switchcraft E3M provides an extended operating temperature range of -55°C to 85°C, suitable for applications requiring operation in extreme thermal conditions. The Amphenol AC3MMDZ operates within -25°C to 75°C and includes IP40 ingress protection rating, making it appropriate for environments with moderate environmental exposure.

Termination method differences exist between the parts: the E3M uses standard solder termination, while the AC3MMDZ employs solder cup termination. Fastening mechanisms also differ, with the E3M utilizing latch lock and the AC3MMDZ using push-pull engagement. These variations do not affect electrical performance in standard audio and instrumentation applications but may influence mechanical assembly procedures and connector engagement characteristics.

Selection between these parts should be based on specific application requirements regarding temperature extremes, environmental protection needs, and assembly methodology preferences.

Frequently Asked Questions (FAQ)

Q: Can the Amphenol AC3MMDZ directly replace the Switchcraft E3M in all applications?

A: Both connectors share identical XLR 3-position receptacle configuration, panel mount flange design, keyed orientation, and shielded architecture. Direct mechanical and electrical compatibility exists for standard audio and instrumentation circuits. Differences in fastening type and operating temperature range may affect suitability in specific thermal or mechanical engagement scenarios.

Q: What is the significance of the operating temperature range difference?

A: The Switchcraft E3M operates from -55°C to 85°C, while the Amphenol AC3MMDZ operates from -25°C to 75°C. Applications requiring operation below -25°C or above 75°C necessitate the Switchcraft E3M. Standard indoor audio and instrumentation environments typically operate within the Amphenol range.

Q: How do solder and solder cup termination methods differ?

A: Both termination methods create permanent electrical connections suitable for panel-mounted receptacles. Solder termination requires direct wire soldering to connector pins, while solder cup termination uses a cup-shaped contact for wire insertion and soldering. Assembly procedures differ, but electrical performance characteristics remain equivalent.

Q: What does the IP40 ingress protection rating on the Amphenol part indicate?

A: IP40 protection provides resistance to solid objects larger than 1mm and protects against splashing water from any direction. The Switchcraft E3M does not specify an ingress protection rating. Applications in environments with moisture or particulate exposure may benefit from the Amphenol part's specified protection level.

Q: Are both parts suitable for professional audio applications?

A: Both connectors are designed for audio and instrumentation applications with shielded XLR 3-position configuration. Both maintain ROHS3 compliance and REACH unaffected status, meeting regulatory requirements for professional audio equipment manufacturing.

Q: What packaging considerations apply to these parts?

A: The Switchcraft E3M is supplied in standard packaging with 722 pieces available in new original stock. The Amphenol AC3MMDZ is supplied in bulk packaging with 1722 pieces available in new original stock. Packaging format does not affect connector performance or compatibility.
