E2A-M18LS08-M1-B3 Equivalent & Substitute Parts

Part Overview

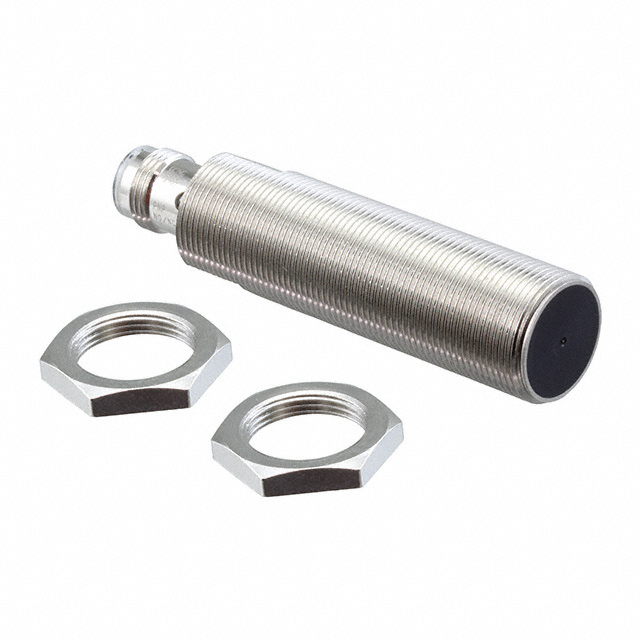

The E2A-M18LS08-M1-B3 is an inductive proximity sensor manufactured by Omron Automation and Safety, designed for non-contact object detection in industrial applications. This sensor operates with an 8mm sensing distance and features PNP output configuration with both normally closed and normally open switching capability. The product is classified as obsolete, making identification of compatible substitute parts essential for system maintenance and component procurement.

Substiute Parts

E2A-M18LS08-M1-B3

Omron Automation and SafetyIn Stock: 1125E2A-M18LS08-M1-B3 Datasheet

Current PartRFQ

E2E-X8B3DL18-M1

Omron Automation and SafetyIn Stock: 984E2E-X8B3DL18-M1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The E2E-X8B3DL18-M1 qualifies as a direct substitute for the E2A-M18LS08-M1-B3 based on the following critical parameters:

• Sensor Type: Both are inductive proximity sensors
• Sensing Distance: Identical at 0.315" (8mm)
• Output Type: Both provide PNP-NC/NO, 3-Wire configuration
• Response Frequency: Both operate at 500Hz
• Mechanical Package: Both use Cylinder, Threaded - M18 form factor
• Termination Style: Both employ connector-based termination
• Body Material: Both feature Nickel-Plated Brass construction
• Shielding: Both are shielded designs
• Ingress Protection: Both meet IP67 and IP69K ratings
• Indicator: Both include LED indication

The E2E-X8B3DL18-M1 represents the next-generation equivalent from Omron's E2E NEXT series, maintaining functional and mechanical compatibility while offering enhanced specifications.

Parameter Comparison

Engineering Selection Recommendations

The E2E-X8B3DL18-M1 is the appropriate substitute for the obsolete E2A-M18LS08-M1-B3. The substitute part maintains identical functional specifications across all critical parameters including sensing distance, output configuration, response frequency, and mechanical form factor.

The E2E-X8B3DL18-M1 offers the following advantages:

• Active product status ensures ongoing availability and manufacturer support
• Enhanced operating temperature range (-40°C ~ 85°C versus -40°C ~ 70°C)
• ROHS3 compliance provides updated regulatory alignment
• REACH compliance status documented

The substitute part operates within a slightly reduced maximum supply voltage range (10V ~ 30V versus 10V ~ 32V). This difference is non-critical for standard industrial applications operating within the 10V ~ 30V window.

Frequently Asked Questions (FAQ)

Q: Can the E2E-X8B3DL18-M1 directly replace the E2A-M18LS08-M1-B3 in existing installations?

A: Yes. Both sensors share identical sensing distance, output type, response frequency, mechanical package, and termination style. The M18 threaded connector interface and 3-wire PNP configuration ensure direct compatibility with existing wiring and mounting hardware.

Q: What is the significance of the voltage supply range difference?

A: The E2A-M18LS08-M1-B3 supports 10V ~ 32V while the E2E-X8B3DL18-M1 supports 10V ~ 30V. For applications operating within the 10V ~ 30V range, this difference has no practical impact. Applications requiring operation above 30V would need to retain the original part or identify alternative solutions.

Q: Does the extended operating temperature range of the E2E-X8B3DL18-M1 affect compatibility?

A: No. The extended upper temperature limit (85°C versus 70°C) represents an enhancement. Applications operating within the original -40°C ~ 70°C range experience no compatibility issues.

Q: Are the connector interfaces identical between these two models?

A: Yes. Both sensors use connector-based termination with M18 threaded cylindrical packages. Existing connector assemblies and wiring harnesses are compatible without modification.

Q: What compliance certifications should be considered for new installations?

A: The E2E-X8B3DL18-M1 carries ROHS3 and REACH compliance certifications, representing current regulatory standards. For new system designs and procurement, the E2E-X8B3DL18-M1 is the appropriate selection.
