NKK Switches E2012 Toggle Switch SPDT Equivalent & Substitute Parts

Part Overview

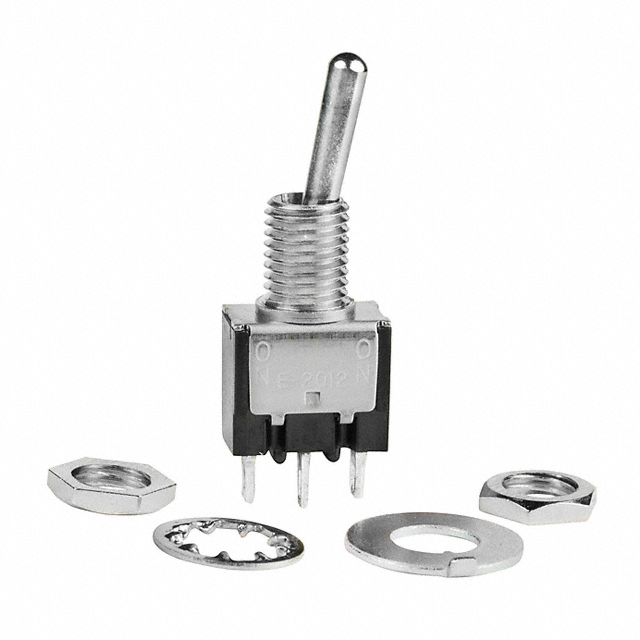

The NKK Switches E2012 is a panel-mounted toggle switch with SPDT (Single Pole Double Throw) circuit configuration, rated for 3A at 125V AC. This component features a standard round actuator with solder lug termination and operates across a temperature range of -10°C to 70°C. The E2012 is classified as obsolete, making identification of functionally equivalent alternatives necessary for ongoing system maintenance and new design implementations where this switch type is required.

Substiute Parts

E2012

NKK SwitchesIn Stock: 859E2012 Datasheet

Current PartRFQ

100SP1T1B1M1QEH

E-SwitchIn Stock: 1631100SP1T1B1M1QEH Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the E2012 is determined by the following critical parameters:

Circuit and Function Compatibility: The substitute must maintain SPDT circuit configuration with On-On switch function to preserve electrical behavior in the application.

Electrical Ratings: The substitute must meet or exceed the current rating (3A minimum) and voltage rating (125V AC minimum) of the original component. Higher ratings provide operational margin without compromising functionality.

Mechanical Interface: Panel mount configuration with solder lug termination is required. The panel cutout diameter (6.50mm nominal) and bushing thread specification (M6 x 0.75) define the physical mounting interface and must be compatible with existing panel designs.

Actuator Specifications: Standard round actuator type with actuator length within acceptable tolerance of 10.50mm ensures consistent user interface and panel clearance.

Operating Environment: The substitute must support the operating temperature range or provide extended capability. Temperature range compatibility ensures reliable operation across the specified environmental conditions.

The E-Switch 100SP1T1B1M1QEH meets these substitution criteria through equivalent circuit topology, superior electrical ratings, compatible mechanical interface, and active product status with modern compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

The E-Switch 100SP1T1B1M1QEH provides functional equivalence to the obsolete NKK E2012 with enhanced electrical performance and modern compliance status. The substitute delivers superior current capacity (5A versus 3A), extended temperature operating range (-30°C to 85°C versus -10°C to 70°C), and doubled electrical life rating (40,000 cycles versus 20,000 cycles).

The substitute achieves RoHS3 compliance, addressing regulatory requirements for new designs and manufacturing environments where RoHS compliance is mandated. The active product status ensures long-term availability and supply chain continuity.

Mechanical interface differences exist: the panel cutout diameter is 6.35mm (versus 6.50mm) and the bushing thread is 1/4-40 (versus M6 x 0.75). These dimensional variations require panel modification or adapter consideration for direct replacement in existing installations. Actuator length tolerance (10.41mm versus 10.50mm) is within acceptable mechanical clearance for standard panel applications.

Frequently Asked Questions (FAQ)

Q: Can the E-Switch 100SP1T1B1M1QEH directly replace the NKK E2012 in existing panel assemblies?

A: Direct mechanical replacement requires panel modification due to bushing thread differences (1/4-40 versus M6 x 0.75) and panel cutout diameter variation (6.35mm versus 6.50mm). Electrical functionality is compatible; mechanical interface adaptation is necessary.

Q: What are the key electrical differences between these switches?

A: The substitute provides higher current capacity (5A AC/DC versus 3A AC), includes DC voltage rating (28V), and extends the operating temperature range. Both maintain SPDT circuit configuration and On-On switch function.

Q: Is the substitute suitable for new product designs?

A: Yes. The E-Switch 100SP1T1B1M1QEH is active product status with RoHS3 compliance, making it appropriate for new designs. The enhanced electrical ratings and extended temperature range provide design margin beyond the original E2012 specifications.

Q: What compliance certifications differ between the two parts?

A: The NKK E2012 is RoHS non-compliant. The E-Switch 100SP1T1B1M1QEH achieves RoHS3 compliance. Both parts are REACH Unaffected and classified as EAR99 for export control purposes.

Q: Are there packaging differences?

A: The NKK E2012 is supplied in standard packaging. The E-Switch 100SP1T1B1M1QEH is supplied in bulk packaging. Packaging format does not affect electrical or mechanical performance.
