Bulgin DX1118/RD LED Panel Indicator Red 2V Equivalent & Substitute Parts

Part Overview

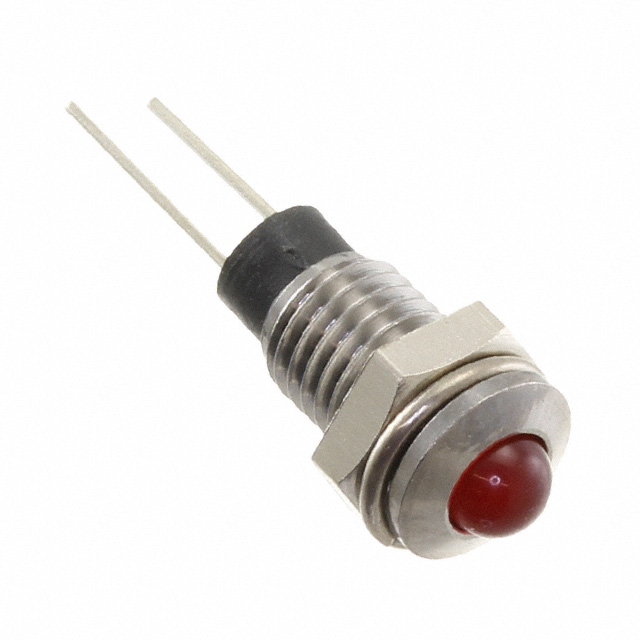

The Bulgin DX1118/RD is an active LED panel indicator designed for 2V applications with a 30mA maximum current rating. This red LED features a 4.00mm domed lens, round panel cutout of 0.24" (6.10mm), and PC pin termination. The component is ROHS3 compliant and carries MSL Level 1 (unlimited moisture sensitivity). Substitute parts are identified when identical electrical ratings, mechanical dimensions, and termination styles are maintained across the Bulgin DX series.

Substiute Parts

DX1118/RD

BulginIn Stock: 776DX1118/RD Datasheet

Current PartRFQ

DX1116/RD

BulginIn Stock: 20348DX1116/RD Datasheet

Parametric EquivalentRFQ

DX1119/RD

BulginIn Stock: 914DX1119/RD Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the DX1118/RD are qualified based on strict parameter matching within the Bulgin DX series. The following electrical and mechanical parameters must be identical for substitution:

• Voltage rating: 2V
• Maximum current: 30mA
• Lamp color: Red
• Lens diameter: 4.00mm
• Lens style: Round with domed top
• Panel cutout shape: Round
• Panel cutout dimensions: 0.24" (6.10mm)
• Millicandela rating: 2.5mcd
• Termination style: PC Pin
• RoHS compliance: ROHS3 Compliant
• MSL rating: Level 1 (Unlimited)

All substitute parts maintain identical compliance certifications (ROHS3, REACH Unaffected, ECCN EAR99, HTSUS 8541.41.0000) and active product status.

Parameter Comparison

Engineering Selection Recommendations

All three parts—DX1118/RD, DX1116/RD, and DX1119/RD—are functionally equivalent for 2V red LED panel indicator applications. Selection between these parts may be based on inventory availability and lead time considerations. All parts maintain active product status and identical ROHS3, REACH, and export compliance certifications. No technical differentiation exists between these parts based on provided specifications.

Frequently Asked Questions (FAQ)

Q: Can DX1116/RD or DX1119/RD be used as direct replacements for DX1118/RD?

A: Yes. All three parts share identical electrical ratings (2V, 30mA), mechanical dimensions (4.00mm lens, 0.24" panel cutout), lens style (round domed), and termination method (PC pin). They are parametric equivalents within the Bulgin DX series.

Q: Are there any compliance or certification differences between these parts?

A: No. All three parts carry identical ROHS3 compliance, REACH unaffected status, MSL Level 1 rating, and export classifications (ECCN EAR99, HTSUS 8541.41.0000).

Q: What determines substitution eligibility for these LED panel indicators?

A: Substitution is determined by matching voltage, current rating, lamp color, lens dimensions and style, panel cutout geometry, millicandela output, termination style, and compliance certifications. All three parts meet these criteria.

Q: Are there inventory or packaging differences?

A: All parts are supplied in bulk packaging. Inventory levels differ: DX1118/RD (751 pcs), DX1116/RD (20,299 pcs), and DX1119/RD (834 pcs). Selection may depend on availability requirements.

Q: Can these parts be used interchangeably in existing designs?

A: Yes, provided the design accommodates the round 0.24" panel cutout and PC pin termination. No circuit modifications are required due to identical electrical specifications.
