DX10BM-80S Equivalent & Substitute Parts

Part Overview

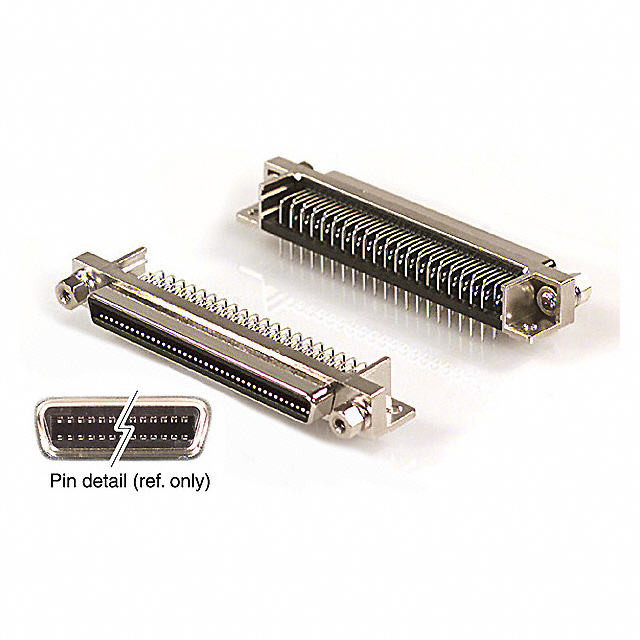

The DX10BM-80S is an 80-position miniature high-density (HD) receptacle connector manufactured by Hirose Electric Co Ltd, designed for panel mount, through-hole, right-angle solder applications. This connector features outer shroud contacts with female screwlock (M2.6) mating interface and gold-plated contacts. The DX10BM-80S is classified as obsolete, making identification of equivalent substitute parts essential for ongoing system support, maintenance, and new design implementations where this connector type is specified.

Substiute Parts

DX10BM-80S

Hirose Electric Co LtdIn Stock: 953DX10BM-80S Datasheet

Current PartRFQ

DX10BM-80S(50)

Hirose Electric Co LtdIn Stock: 899DX10BM-80S(50) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the DX10BM-80S is determined by strict equivalence across the following critical parameters:

• Connector Position Count: 80 positions (fixed requirement)
• Row Configuration: 2 rows (fixed requirement)
• Connector Type: Receptacle (fixed requirement)
• Connector Style: Outer Shroud Contacts (fixed requirement)
• Miniature HD Classification: Miniature High Density type (fixed requirement)
• Mounting Configuration: Panel Mount, Through Hole, Right Angle (fixed requirement)
• Termination Method: Solder (fixed requirement)
• Mating Interface: Female Screwlock M2.6 (fixed requirement)
• Contact Finish: Gold plating (fixed requirement)

The substitute part DX10BM-80S(50) maintains identical electrical and mechanical specifications across all critical parameters, with the primary distinction being packaging format and product status transition from obsolete to active.

Parameter Comparison

Engineering Selection Recommendations

The DX10BM-80S(50) is the direct substitute for the obsolete DX10BM-80S. Selection of this substitute part is based on the following engineering factors:

Product Status: The DX10BM-80S is classified as obsolete, while DX10BM-80S(50) maintains active product status with ongoing manufacturer support and availability.

Regulatory Compliance: DX10BM-80S(50) achieves RoHS compliance, whereas the original part is RoHS non-compliant. This compliance upgrade aligns with current environmental and regulatory requirements for component procurement.

Electrical and Mechanical Equivalence: Both parts maintain identical specifications across all critical connector parameters: 80-position configuration, 2-row layout, receptacle type, outer shroud contacts, miniature HD classification, panel mount through-hole right-angle orientation, solder termination, M2.6 female screwlock interface, and gold contact finish.

Packaging Consideration: DX10BM-80S(50) is supplied in tray packaging, which may differ from the original part's packaging format. Verify packaging compatibility with receiving and assembly processes.

Inventory Availability: DX10BM-80S(50) is available in active inventory (818 pcs new original in stock), ensuring supply chain continuity for replacement and new applications.

Frequently Asked Questions (FAQ)

Q: Can DX10BM-80S(50) be used as a direct replacement for DX10BM-80S in existing designs?

A: Yes. DX10BM-80S(50) is electrically and mechanically equivalent to DX10BM-80S across all critical connector parameters. The connector maintains identical position count (80), row configuration (2), receptacle type, outer shroud contacts, miniature HD classification, panel mount through-hole right-angle mounting, solder termination, M2.6 female screwlock interface, and gold contact finish. The primary differences are product status (active vs. obsolete) and RoHS compliance (compliant vs. non-compliant).

Q: What is the significance of the "(50)" designation in DX10BM-80S(50)?

A: The "(50)" designation indicates the packaging format. DX10BM-80S(50) is supplied in tray packaging. Verify that tray packaging is compatible with your receiving, storage, and assembly processes.

Q: Are there any compliance differences between DX10BM-80S and DX10BM-80S(50)?

A: Yes. DX10BM-80S(50) is RoHS compliant, while DX10BM-80S is RoHS non-compliant. Both parts maintain identical REACH status (REACH Unaffected) and ECCN classification (EAR99). The RoHS compliance upgrade in DX10BM-80S(50) aligns with current environmental regulations and procurement standards.

Q: What are the key parameters that define substitution eligibility for this connector?

A: Substitution eligibility is determined by equivalence across these parameters: 80-position count, 2-row configuration, receptacle connector type, outer shroud contacts, miniature high-density classification, panel mount through-hole right-angle mounting, solder termination, M2.6 female screwlock mating interface, and gold contact finish. Any deviation in these parameters disqualifies a part as a direct substitute.

Q: Is DX10BM-80S(50) available for immediate procurement?

A: DX10BM-80S(50) is classified as active product status with 818 pcs new original in stock, indicating current availability. Confirm specific lead times and quantity requirements with your supplier.
