DX10BM-100SE(50) Equivalent & Substitute Parts

Part Overview

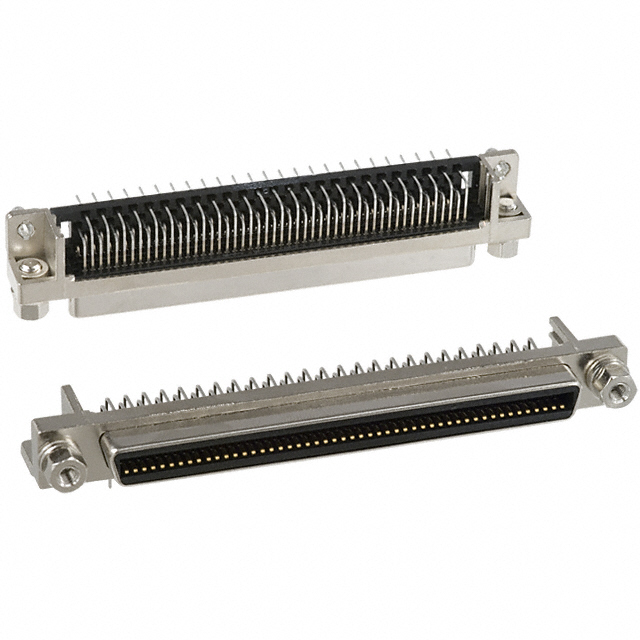

The DX10BM-100SE(50) is a 100-position miniature high-density D-Sub receptacle connector manufactured by Hirose Electric Co Ltd. This connector is designed for panel mount, through-hole, right-angle solder termination applications with board lock features and gold-plated contacts. The part is currently in Last Time Buy status, making identification of equivalent substitute parts essential for ongoing procurement and design continuity.

Substiute Parts

DX10BM-100SE(50)

Hirose Electric Co LtdIn Stock: 853DX10BM-100SE(50) Datasheet

Current PartRFQ

PHEC100R-R211LF

Amphenol ICC (FCI)In Stock: 1199PHEC100R-R211LF Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the DX10BM-100SE(50) is based on the following critical parameters that must remain constant:

• Connector Type & Position Count: 100-position receptacle configuration
• Row Configuration: 2-row arrangement
• Mounting & Termination: Panel mount, through-hole, right-angle solder termination
• Connector Style: Outer shroud contacts with board lock feature
• Contact System: Gold-plated contacts
• Electrical Classification: D-Sub, D-shaped connector category
• Compliance: RoHS compliant, MSL 1 rating

The substitute part PHEC100R-R211LF from Amphenol ICC (FCI) meets all these critical parameters, enabling direct functional replacement in applications requiring 100-position D-Sub receptacle connectors with identical mounting and termination characteristics.

Parameter Comparison

Engineering Selection Recommendations

The PHEC100R-R211LF from Amphenol ICC (FCI) is the qualified substitute for the DX10BM-100SE(50). Selection of this substitute is supported by:

• Functional Equivalence: Identical 100-position, 2-row receptacle configuration with matching mounting and termination specifications
• Active Product Status: The substitute maintains active production status, ensuring long-term availability and supply chain continuity
• Compliance Alignment: Both parts share identical ECCN (EAR99) and HTSUS classifications, with equivalent MSL 1 ratings and RoHS compliance
• Contact System Compatibility: Gold-plated contact finish on both parts ensures electrical performance consistency
• Board Lock Feature: Both connectors incorporate board lock functionality for mechanical stability

The transition from DX10BM-100SE(50) to PHEC100R-R211LF is appropriate for applications requiring 100-position D-Sub receptacle connectors with through-hole, right-angle solder termination and panel mount configuration.

Frequently Asked Questions (FAQ)

Q: Can PHEC100R-R211LF directly replace DX10BM-100SE(50) in existing designs?

A: Yes. Both connectors share identical position count (100), row configuration (2), mounting type (panel mount, through-hole, right-angle), termination method (solder), and contact finish (gold). The outer shroud contact style and board lock features are present on both parts.

Q: What is the significance of the Last Time Buy status for DX10BM-100SE(50)?

A: Last Time Buy status indicates that the DX10BM-100SE(50) is no longer in active production. Identifying and qualifying substitute parts is necessary for continued procurement and design support beyond existing inventory.

Q: Are there differences in contact finish thickness between the two parts?

A: The PHEC100R-R211LF specifies a contact finish thickness of 10.0µin (0.25µm), while the DX10BM-100SE(50) does not provide this specification. Both parts use gold plating and are suitable for solder termination applications.

Q: Do both connectors meet the same compliance requirements?

A: Yes. Both the DX10BM-100SE(50) and PHEC100R-R211LF are RoHS compliant, carry MSL 1 (Unlimited) ratings, and share identical ECCN (EAR99) and HTSUS (8536.69.4040) classifications.

Q: What packaging format is used for these connectors?

A: Both parts are supplied in tray packaging, suitable for automated assembly and standard component handling procedures.
