DTP04-4P-LE07 Equivalent & Substitute Parts

Part Overview

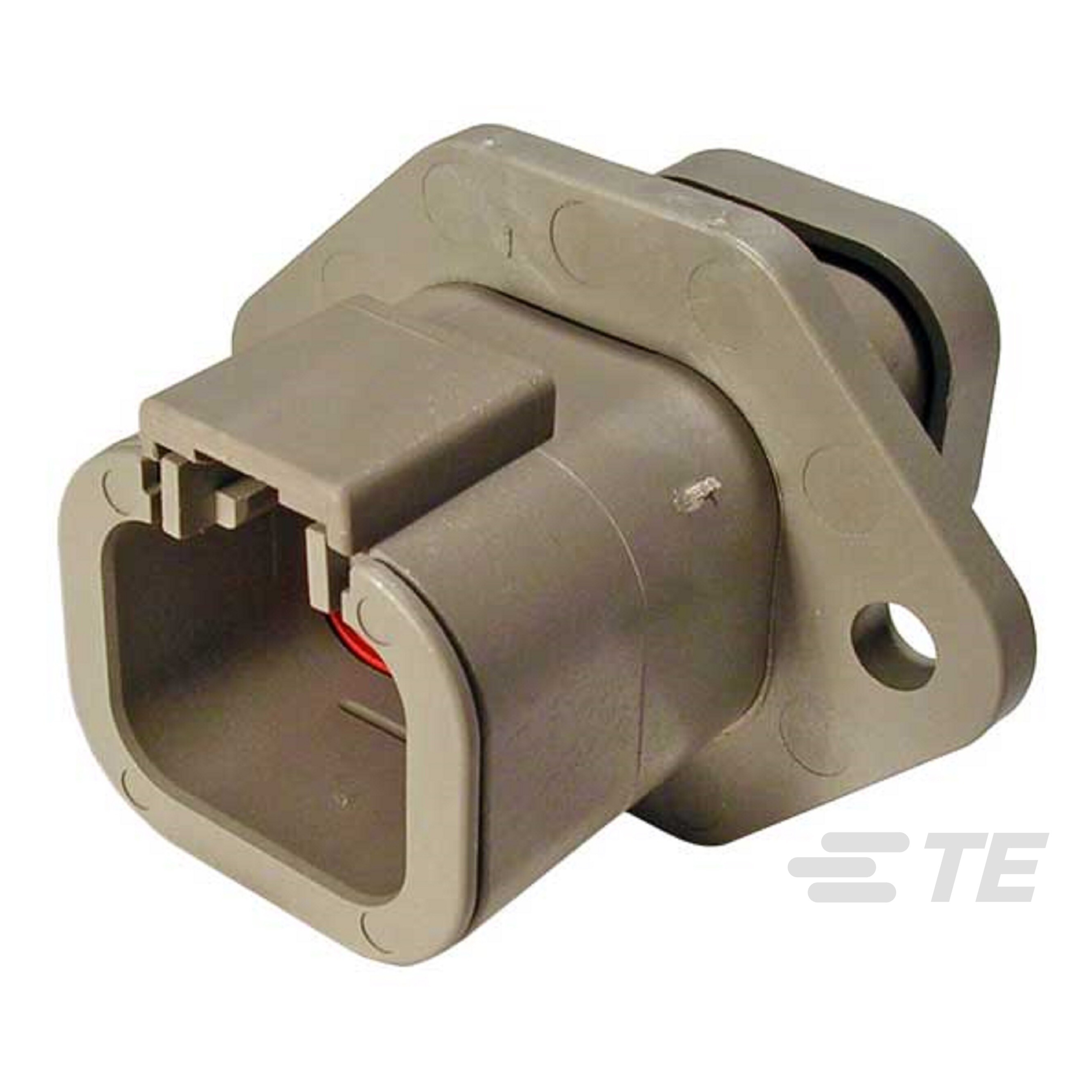

The DTP04-4P-LE07 is a 4-position rectangular connector housing manufactured by TE Connectivity Deutsch Connectors. This receptacle connector is designed for panel mount applications with crimp termination and latch holder fastening. The housing features sealed construction with gray polyamide insulation material rated for -55°C to 125°C operation. As an active product with ROHS3 compliance, the DTP04-4P-LE07 remains in production. Substitute parts are identified to provide alternative sourcing options when primary inventory is unavailable or when procurement requirements necessitate qualified alternatives meeting equivalent electrical and mechanical specifications.

Substiute Parts

DTP04-4P-LE07

TE Connectivity Deutsch ConnectorsIn Stock: 1346DTP04-4P-LE07 Datasheet

Current PartRFQ

ATP04-4P-PM02

Amphenol Sine Systems CorpIn Stock: 810ATP04-4P-PM02 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the DTP04-4P-LE07 are qualified based on the following critical parameters that determine functional and mechanical compatibility:

Primary Substitution Criteria:

• Connector Type: Receptacle
• Number of Positions: 4
• Contact Type: Male Pin
• Mounting Type: Panel Mount
• Contact Termination: Crimp
• Fastening Type: Latch Holder
• Operating Temperature Range: -55°C ~ 125°C
• RoHS Compliance: ROHS3 Compliant

The ATP04-4P-PM02 manufactured by Amphenol Sine Systems Corp satisfies these core substitution parameters. Both connectors are receptacle housings with 4-position capacity, male pin contacts, panel mount configuration, crimp termination, and latch holder fastening. Both operate across the -55°C to 125°C temperature range and maintain ROHS3 compliance. The gray color and sealed features are consistent across both parts.

Parameter Comparison

Engineering Selection Recommendations

Both the DTP04-4P-LE07 and ATP04-4P-PM02 are active products with current manufacturing status. Selection between these parts should be based on the following factors:

Compliance & Regulatory: Both parts maintain ROHS3 compliance, REACH unaffected status, and EAR99 export classification, making them equivalent from a regulatory standpoint.

Inventory & Availability: The DTP04-4P-LE07 currently maintains 1286 pieces in stock, while the ATP04-4P-PM02 has 755 pieces available. Selection may depend on procurement lead time requirements and supply chain considerations.

Packaging Considerations: The DTP04-4P-LE07 is supplied in box packaging, while the ATP04-4P-PM02 is supplied in bulk packaging. This distinction may affect handling, storage, and integration into assembly processes.

Contact Inclusion: The ATP04-4P-PM02 is specified as a housing without included contacts (base product number ATP04-4P). Verify that contacts are procured separately if selecting this substitute.

Both parts are suitable for direct substitution in applications requiring 4-position rectangular connectors with the specified electrical and mechanical characteristics.

Frequently Asked Questions (FAQ)

Q: Can ATP04-4P-PM02 directly replace DTP04-4P-LE07 in existing designs?

A: Yes, the ATP04-4P-PM02 meets all critical substitution parameters including connector type, position count, contact type, mounting configuration, termination method, and operating temperature range. Both are ROHS3 compliant receptacle housings with identical row configuration and fastening mechanisms.

Q: What is the difference in pitch and row spacing between these parts?

A: The DTP04-4P-LE07 specifies 0.264" (6.71mm) pitch and 0.400" (10.16mm) row spacing. The ATP04-4P-PM02 does not provide pitch and row spacing specifications in available documentation. Confirm mechanical compatibility with your application requirements before substitution.

Q: Are contacts included with the ATP04-4P-PM02?

A: No. The ATP04-4P-PM02 is supplied as a housing only. Contacts must be procured separately. The DTP04-4P-LE07 documentation does not specify whether contacts are included, so verify contact requirements for your application.

Q: What is the difference between box and bulk packaging?

A: The DTP04-4P-LE07 is supplied in box packaging, which typically provides individual part protection and organized presentation. The ATP04-4P-PM02 is supplied in bulk packaging, which may require additional handling procedures during receiving and storage. Select based on your assembly and inventory management requirements.

Q: Are both parts suitable for sealed applications?

A: Yes. Both the DTP04-4P-LE07 and ATP04-4P-PM02 feature sealed construction, making them appropriate for applications requiring environmental protection.

Q: What is the moisture sensitivity level (MSL) for these parts?

A: The DTP04-4P-LE07 has MSL listed as Not Applicable. The ATP04-4P-PM02 has MSL 1 (Unlimited), indicating no moisture sensitivity restrictions. Both parts can be stored and handled without special moisture control measures.
