DTMH06-2SA Equivalent & Substitute Parts

Part Overview

The DTMH06-2SA is a 2-position rectangular connector plug housing manufactured by TE Connectivity Deutsch Connectors. This connector is classified as a free-hanging, in-line plug with female socket contacts and crimp termination. The part is actively produced and stocked, with 1117 units available in inventory. Substitute parts are identified when equivalent electrical and mechanical parameters are required but the primary part is unavailable or when alternative color or series options are needed for specific application requirements.

Substiute Parts

DTMH06-2SA

TE Connectivity Deutsch ConnectorsIn Stock: 1180DTMH06-2SA Datasheet

Current PartRFQ

DT06-2S-E004

TE Connectivity Deutsch ConnectorsIn Stock: 13767DT06-2S-E004 Datasheet

Parametric EquivalentRFQ

DTMH06-2SB

TE Connectivity Deutsch ConnectorsIn Stock: 1536DTMH06-2SB Datasheet

Parametric EquivalentRFQ

DTP06-2S

TE Connectivity Deutsch ConnectorsIn Stock: 12577DTP06-2S Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the DTMH06-2SA are qualified based on the following critical parameters that must remain constant across all equivalent options:

Mandatory Matching Parameters:

• Connector Type: Plug
• Contact Type: Female Socket
• Number of Positions: 2
• Number of Rows: 1
• Mounting Type: Free Hanging (In-Line)
• Contact Termination: Crimp
• Fastening Type: Latch Lock
• Insulation Material: Plastic
• Features: IP68, IP6K9K
• RoHS Status: ROHS3 Compliant

Allowable Variations:

• Color (Gray or Black)
• Series designation (DTMH, DT, DTP)
• Operating Temperature upper limit (125°C or 150°C)
• REACH Status (Vendor Undefined or REACH Unaffected)

The three identified substitute parts maintain all mandatory parameters while offering variations in color, series, and thermal operating range. These substitutes are suitable for applications where the primary part is unavailable or where alternative color coding or thermal specifications are acceptable.

Parameter Comparison

Engineering Selection Recommendations

DTMH06-2SA (Primary Part) Select this part when gray color coding is required and the full operating temperature range of -55°C to 150°C is necessary. This part maintains the DTMH series designation and is ROHS3 compliant with active production status.

DTMH06-2SB (Same Series Alternative) This substitute is suitable when black color coding is required while maintaining the DTMH series and full -55°C to 150°C operating temperature range. Both DTMH06-2SA and DTMH06-2SB are functionally equivalent with only color differentiation. ROHS3 compliance and active product status are maintained.

DT06-2S-E004 (Cross-Series Alternative) This part is suitable for applications where black color coding is acceptable and the operating temperature range of -55°C to 125°C is sufficient. The DT series designation represents a cross-series substitute with equivalent electrical and mechanical parameters. ROHS3 compliance and REACH Unaffected status apply. Higher inventory availability (13750 units) may support supply chain requirements.

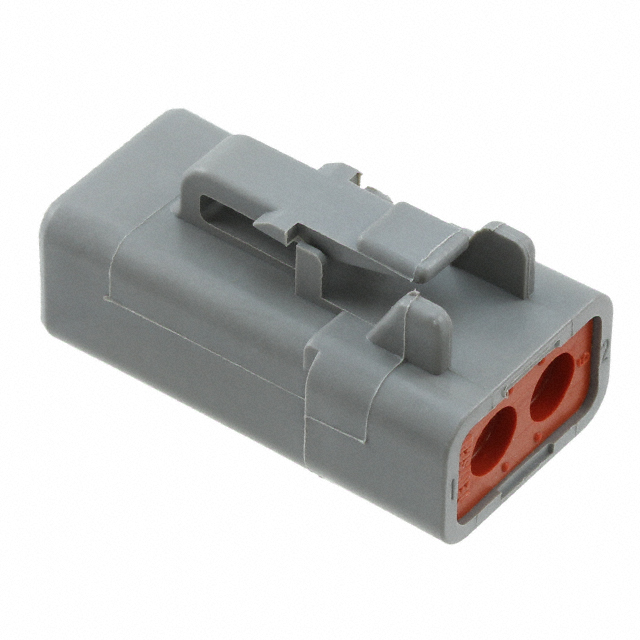

DTP06-2S (Cross-Series Alternative) This part is suitable for applications where gray color coding is required and the operating temperature range of -55°C to 125°C is sufficient. The DTP series designation represents a cross-series substitute with equivalent electrical and mechanical parameters. ROHS3 compliance and REACH Unaffected status apply. Higher inventory availability (12484 units) may support supply chain requirements.

All substitute parts are actively produced, ROHS3 compliant, and maintain the critical electrical and mechanical specifications of the primary part. Selection between substitutes depends on color requirement and thermal operating range tolerance.

Frequently Asked Questions (FAQ)

Q: Can DTMH06-2SB be used as a direct replacement for DTMH06-2SA? A: Yes. DTMH06-2SB is a direct functional equivalent with identical electrical and mechanical parameters. The only difference is color (black versus gray). Both parts maintain the same operating temperature range (-55°C to 150°C), series designation (DTMH), and all critical specifications.

Q: What is the difference between DTMH06-2SA and DT06-2S-E004? A: Both parts are 2-position rectangular connector plugs with female socket contacts and identical mounting, termination, and fastening specifications. The primary differences are: series designation (DTMH versus DT), color (gray versus black), and operating temperature upper limit (150°C versus 125°C). DT06-2S-E004 has significantly higher inventory availability.

Q: Can I use DTP06-2S if my application requires the full -55°C to 150°C temperature range? A: No. DTP06-2S is rated only to 125°C maximum operating temperature. If your application requires operation above 125°C, use DTMH06-2SA or DTMH06-2SB instead.

Q: Are all substitute parts ROHS3 compliant? A: Yes. All four parts (DTMH06-2SA, DTMH06-2SB, DT06-2S-E004, and DTP06-2S) are ROHS3 compliant.

Q: What does "Contacts Not Included" mean? A: This designation indicates that the connector housing is supplied without pre-installed contacts. Contacts must be obtained separately and crimped into the housing according to the connector specification.

Q: Can I mix parts from different series (DTMH, DT, DTP) in the same assembly? A: All substitute parts maintain identical connector type, contact type, number of positions, mounting type, and fastening specifications. Mixing series is permissible from an electrical and mechanical standpoint, though design consistency may favor using parts from the same series.

Q: What is the significance of IP68 and IP6K9K ratings? A: IP68 indicates complete dust protection and submersion capability. IP6K9K indicates protection against high-pressure water jets. These ratings are maintained across all substitute parts, confirming equivalent environmental protection specifications.
