DTM06-12SC-E007 Equivalent & Substitute Parts

Part Overview

The DTM06-12SC-E007 is a 12-position rectangular connector plug housing manufactured by TE Connectivity Deutsch Connectors. This connector features female socket contacts, crimp termination, and latch lock fastening, designed for free-hanging in-line applications. The housing is constructed from plastic insulation material with IP68 and IP6K9K ratings, providing sealed protection suitable for harsh environmental conditions. The part operates across a temperature range of -55°C to 125°C and is ROHS3 compliant. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector series, allowing for functional interchangeability in applications where color or material variations are acceptable.

Key Parameters

Parameter	Value
Connector Type	Plug
Contact Type	Female Socket
Number of Positions	12
Number of Rows	2
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Features	IP68, IP6K9K, Shrink Boot Adapter
Operating Temperature	-55°C ~ 125°C
RoHS Status	ROHS3 Compliant
Product Status	Active

Substitute Part Grouping Explanation

Substitute parts for the DTM06-12SC-E007 are classified based on electrical and mechanical parameter equivalence. The critical parameters determining substitution eligibility are: connector type (plug), contact type (female socket), number of positions (12), number of rows (2), mounting type (free hanging in-line), contact termination (crimp), fastening type (latch lock), operating temperature range (-55°C to 125°C), and compliance certifications (ROHS3).

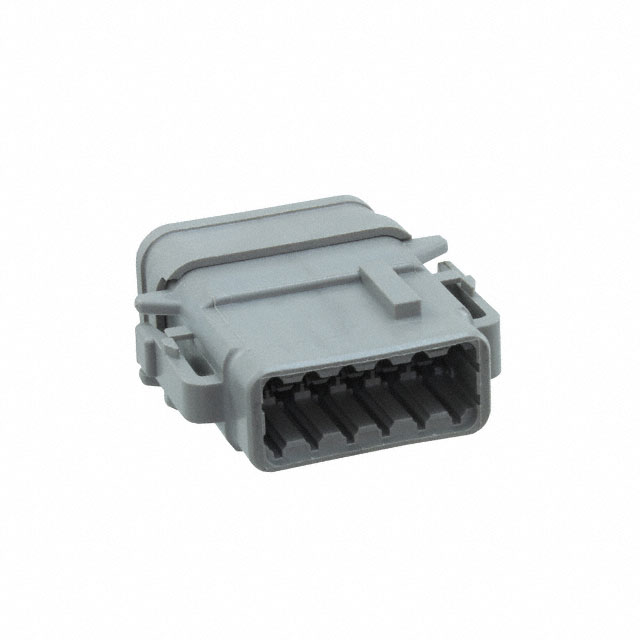

Parametric Equivalents maintain all critical electrical and mechanical parameters while varying only in housing color or insulation material composition. These parts are DTM06-12SA-E007 (gray, plastic), DTM06-12SB-E007 (black, polyamide nylon glass filled), and DTM06-12SD-E007 (brown, plastic). The DT06-12SA-E008 represents a parametric equivalent from the DT series with gray housing and polyamide nylon glass filled insulation.

Similar Parts maintain the same electrical and mechanical specifications but originate from a different manufacturer. The ATM06-12SC-SR1GN from Amphenol Sine Systems Corp is classified as a similar part, featuring equivalent 12-position plug housing with female socket contacts, crimp termination, and latch lock fastening, though with different series designation and thermoplastic insulation material.

Parameter Comparison

Parameter	DTM06-12SC-E007	DTM06-12SA-E007	DTM06-12SB-E007	DTM06-12SD-E007	DT06-12SA-E008	ATM06-12SC-SR1GN
Manufacturer	TE Connectivity Deutsch	TE Connectivity Deutsch	TE Connectivity Deutsch	TE Connectivity Deutsch	TE Connectivity Deutsch	Amphenol Sine Systems
Series	DTM	DTM	DTM	DTM	DT	ATMSeries™SR01
Connector Type	Plug	Plug	Plug	Plug	Plug	Plug
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket
Number of Positions	12	12	12	12	12	12
Number of Rows	2	2	2	2	2	2
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp	Crimp	Crimp	Crimp
Fastening Type	Latch Lock	Latch Lock	Latch Lock	Latch Lock	Latch Lock	Latch Lock
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Housing Color	Green	Gray	Black	Brown	Gray	Green
Insulation Material	Plastic	Plastic	Polyamide (PA), Nylon, Glass Filled	Plastic	Polyamide (PA), Nylon, Glass Filled	Thermoplastic
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Product Status	Active	Active	Active	Active	Active	Active

Engineering Selection Recommendations

All listed substitute and similar parts maintain active product status with ROHS3 compliance certification, ensuring regulatory alignment with current environmental standards. The parametric equivalents DTM06-12SA-E007, DTM06-12SB-E007, and DTM06-12SD-E007 are direct substitutes within the DTM series, differing only in housing color and insulation material composition while preserving all electrical and mechanical specifications.

The DT06-12SA-E008 represents a cross-series parametric equivalent from the DT product line, maintaining identical electrical and mechanical parameters with the distinction of polyamide nylon glass filled insulation material. This part is suitable for applications where material composition requirements align with glass-filled nylon specifications.

The ATM06-12SC-SR1GN from Amphenol Sine Systems Corp is classified as a similar part from an alternative manufacturer. This connector maintains equivalent 12-position plug housing configuration with female socket contacts, crimp termination, and latch lock fastening. The ATM06-12SC-SR1GN features thermoplastic insulation material and includes sealed and strain relief features. Selection of this part requires confirmation that cross-manufacturer compatibility is acceptable within the application context.

Frequently Asked Questions (FAQ)

Q: What parameters must remain constant for a part to be considered a direct substitute for the DTM06-12SC-E007?

A: Direct substitutes must maintain the following parameters: 12-position plug housing configuration, female socket contact type, 2-row arrangement, free-hanging in-line mounting, crimp contact termination, latch lock fastening, IP68 and IP6K9K protection ratings, -55°C to 125°C operating temperature range, and ROHS3 compliance. Housing color and insulation material composition may vary between direct substitutes.

Q: Can the DTM06-12SA-E007 be used as a direct replacement for the DTM06-12SC-E007?

A: Yes. The DTM06-12SA-E007 is a parametric equivalent within the DTM series. Both parts share identical electrical and mechanical specifications, including 12-position configuration, female socket contacts, crimp termination, latch lock fastening, and operating temperature range. The primary difference is housing color (gray versus green) and insulation material (plastic in both cases).

Q: What is the difference between parametric equivalents and similar parts?

A: Parametric equivalents maintain all critical electrical and mechanical specifications while potentially varying in housing color or insulation material composition. Similar parts originate from different manufacturers but maintain equivalent electrical and mechanical parameters. The ATM06-12SC-SR1GN is a similar part from Amphenol, suitable for applications where cross-manufacturer compatibility is acceptable.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. All listed substitute and similar parts carry ROHS3 compliance certification, ensuring regulatory alignment with current environmental standards for restricted substances.

Q: Does the DTM06-12SC-E007 include contacts?

A: No. The DTM06-12SC-E007 is a connector housing only. Contacts are not included and must be sourced separately. This specification applies to all listed substitute and similar parts.

Q: What is the significance of the IP68 and IP6K9K ratings?

A: IP68 rating indicates complete dust protection and submersion capability up to specified depths. IP6K9K rating indicates protection against high-pressure water jets. Both ratings are maintained across all listed substitute parts, ensuring equivalent environmental sealing performance.

Q: Can the DT06-12SA-E008 be used interchangeably with DTM series parts?

A: The DT06-12SA-E008 is a parametric equivalent from the DT series with identical electrical and mechanical specifications. However, cross-series compatibility should be confirmed within the specific application context, as series designation changes may indicate design variations beyond the provided parameters.
