DTF2-2RN2-LH Equivalent & Substitute Parts

Part Overview

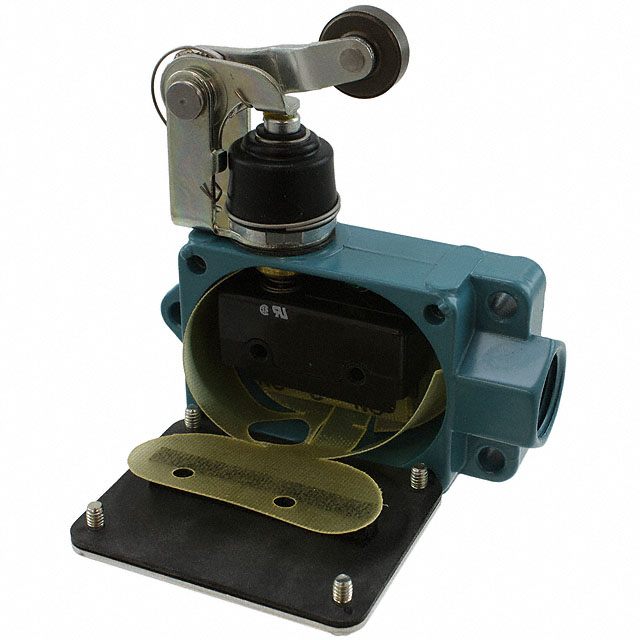

The DTF2-2RN2-LH is an active snap action switch manufactured by Honeywell Sensing and Productivity Solutions. This DPDT (Double Pole Double Throw) chassis mount switch is rated for 10A AC at 125V and features a lever roller actuator with left-side mounting. The switch operates with On-Momentary function and screw terminal connections, designed for applications requiring reliable snap action switching in industrial and commercial environments.

Substitute parts are identified when equivalent electrical and mechanical performance can be achieved through alternative manufacturers while maintaining compatibility with the application's core requirements.

Substiute Parts

DTF2-2RN2-LH

Honeywell Sensing and Productivity SolutionsIn Stock: 929DTF2-2RN2-LH Datasheet

Current PartRFQ

ZE-NA2-2S

Omron Automation and SafetyIn Stock: 1124ZE-NA2-2S Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution analysis for the DTF2-2RN2-LH is based on the following critical parameters that determine functional equivalence:

Electrical Compatibility Parameters:

• Voltage rating (AC/DC): Must meet or exceed 125V AC/DC
• Current rating: Must support minimum 10A AC operation
• Circuit configuration: DPDT topology required for dual-pole switching
• Switch function: On-Momentary operation maintained

Mechanical Compatibility Parameters:

• Actuator type: Lever with roller mechanism
• Mounting type: Chassis mount configuration
• Termination: Screw terminal connections
• Operating temperature range: Must encompass or overlap -32°C to 71°C

Regulatory Compliance:

• RoHS compliance status
• Product active status

The identified substitute ZE-NA2-2S from Omron Automation and Safety presents a circuit configuration difference (SPDT vs. DPDT) and therefore represents a partial functional alternative suitable only for applications where single-pole switching is acceptable. This substitution requires circuit redesign evaluation.

Parameter Comparison

Engineering Selection Recommendations

DTF2-2RN2-LH (Primary Component): The DTF2-2RN2-LH remains the specified component for applications requiring DPDT switching topology. This part is active in production, RoHS compliant, and provides the dual-pole configuration necessary for simultaneous control of two independent circuits. Current availability is 849 units in stock.

ZE-NA2-2S (Conditional Substitute): The ZE-NA2-2S from Omron can serve as a substitute only in applications where SPDT (single-pole double-throw) functionality is acceptable. This substitution introduces the following considerations:

• Circuit topology change from DPDT to SPDT eliminates one switching pole
• Current rating increases from 10A to 15A AC, providing additional capacity margin
• DC current rating increases from 300mA to 500mA
• Operating temperature range expands from -32°C to 71°C to -10°C to 80°C
• IP65 ingress protection rating provides enhanced environmental sealing
• Operating force reduces from 1134gf to 640gf, requiring less actuator pressure
• Release force increases from 57gf to 230gf
• Pretravel decreases from 0.310" to 0.197"
• Both parts maintain screw terminal connections and chassis mount configuration
• Both parts are RoHS compliant and active in production
• Current availability is 1092 units in stock

Substitution of ZE-NA2-2S for DTF2-2RN2-LH requires verification that the application circuit design can function with single-pole switching and that the altered actuation characteristics (reduced operating force, increased release force, reduced pretravel) are compatible with the mechanical interface.

Frequently Asked Questions (FAQ)

Q: Can the ZE-NA2-2S directly replace the DTF2-2RN2-LH in all applications?

A: No. The ZE-NA2-2S has SPDT configuration while the DTF2-2RN2-LH has DPDT configuration. Direct replacement is only possible in applications designed for single-pole switching. Applications requiring simultaneous control of two independent circuits cannot use the ZE-NA2-2S without circuit redesign.

Q: What is the primary difference between these two switches?

A: The circuit configuration differs fundamentally. The DTF2-2RN2-LH provides two independent switching poles (DPDT), while the ZE-NA2-2S provides one switching pole (SPDT). Both maintain identical voltage ratings, screw terminal connections, and chassis mount configuration.

Q: Are the actuation characteristics compatible between these parts?

A: No. The DTF2-2RN2-LH requires 1134gf operating force with 57gf release force and 0.310" pretravel. The ZE-NA2-2S requires 640gf operating force with 230gf release force and 0.197" pretravel. These differences affect mechanical interface design and may require actuator mechanism adjustment.

Q: Do both parts meet RoHS compliance requirements?

A: Yes. The DTF2-2RN2-LH is RoHS Compliant. The ZE-NA2-2S is ROHS3 Compliant. Both meet current RoHS standards.

Q: What is the temperature operating range difference?

A: The DTF2-2RN2-LH operates from -32°C to 71°C. The ZE-NA2-2S operates from -10°C to 80°C. The Omron part has a narrower low-temperature limit but extends higher on the upper end.

Q: Does the ZE-NA2-2S offer any performance advantages?

A: The ZE-NA2-2S provides higher current ratings (15A AC vs. 10A AC; 500mA DC vs. 300mA DC), IP65 ingress protection, lower operating force requirement, and longer electrical life (500,000 cycles) and mechanical life (10,000,000 cycles). These advantages apply only when SPDT functionality is acceptable.

Q: Are packaging and termination methods identical?

A: Yes. Both parts use screw terminal connections and chassis mount configuration. Both are supplied in bulk packaging.
