DTE6-2RN Equivalent & Substitute Parts

Part Overview

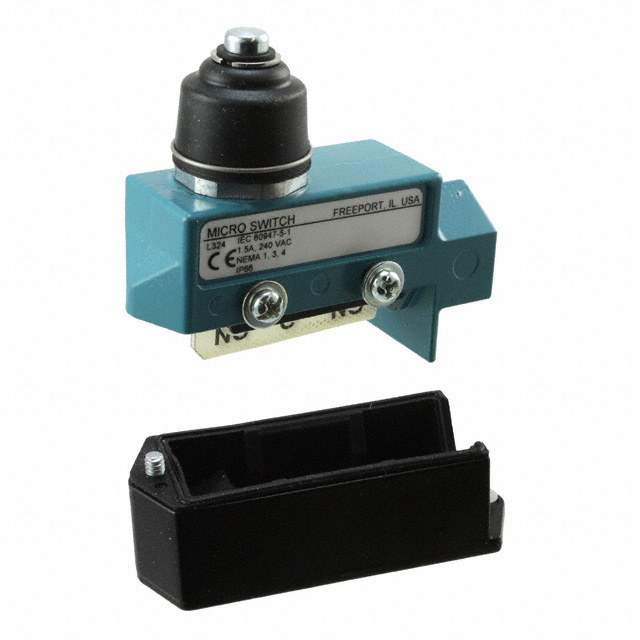

The DTE6-2RN is an active, RoHS-compliant snap action switch manufactured by Honeywell Sensing and Productivity Solutions. This DPDT (Double Pole Double Throw) chassis mount switch is designed for applications requiring 10A AC at 125V with a round pin plunger actuator and screw terminal connections. The switch features IP66 ingress protection and an actuator seal boot, making it suitable for industrial control applications. Substitute parts are identified to address inventory availability, extended lead times, or specific application requirements while maintaining functional compatibility within defined electrical and mechanical parameters.

Substiute Parts

DTE6-2RN

Honeywell Sensing and Productivity SolutionsIn Stock: 1063DTE6-2RN Datasheet

Current PartRFQ

ZE-N-2S

Omron Automation and SafetyIn Stock: 35458ZE-N-2S Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the DTE6-2RN with the ZE-N-2S is permissible under the following conditions:

Electrical Compatibility Parameters:

• Both switches operate at 125V AC nominal voltage
• Both switches support 125V DC voltage rating
• The ZE-N-2S provides higher current capacity (15A AC vs. 10A AC), making it suitable for applications within or below the DTE6-2RN's current specification
• Both switches feature On-Momentary switch function

Mechanical Compatibility Parameters:

• Both switches use round pin plunger actuators
• Both switches employ chassis mount configuration
• Both switches utilize screw terminal termination
• Operating positions are equivalent (1.812" vs. 1.805")

Environmental & Compliance Parameters:

• Both switches meet RoHS compliance requirements
• Both switches carry MSL Rating 1 (Unlimited moisture sensitivity)
• Both switches are classified under ECCN EAR99

Circuit Configuration Limitation: The ZE-N-2S operates as SPDT (Single Pole Double Throw), whereas the DTE6-2RN is DPDT (Double Pole Double Throw). This represents a functional difference that must be evaluated against specific application requirements. Substitution is valid only when the application circuit design accommodates SPDT functionality or when only one pole is utilized in the original design.

Parameter Comparison

Engineering Selection Recommendations

Primary Selection Criteria:

The DTE6-2RN remains the specified component when DPDT circuit functionality is required and the operating temperature range of -32°C to 71°C is mandatory. The DTE6-2RN's IP66 ingress protection rating provides superior environmental sealing compared to the ZE-N-2S IP65 rating.

Substitution Conditions:

The ZE-N-2S is functionally equivalent when all of the following conditions are met:

1. The application circuit design operates with SPDT functionality or utilizes only one pole of the original DPDT configuration
2. The operating temperature range of -10°C to 80°C satisfies application requirements
3. The reduced ingress protection rating of IP65 is acceptable for the intended environment
4. Current requirements do not exceed 15A AC or 500mA DC
5. REACH compliance requirements are satisfied by the substitute part's REACH Affected status

Compliance Considerations:

Both parts maintain active product status and RoHS compliance. The ZE-N-2S carries ROHS3 certification, representing compliance with the current RoHS standard revision. The DTE6-2RN's REACH Unaffected status differs from the ZE-N-2S REACH Affected designation; regulatory requirements must be evaluated for the specific application jurisdiction.

Frequently Asked Questions (FAQ)

Q: Can the ZE-N-2S directly replace the DTE6-2RN in all applications?

A: No. The ZE-N-2S is SPDT (Single Pole Double Throw) while the DTE6-2RN is DPDT (Double Pole Double Throw). Direct substitution is valid only when the application circuit design requires or accommodates SPDT functionality. If the original design utilizes both poles of the DPDT configuration, the ZE-N-2S cannot serve as a direct replacement.

Q: What are the key electrical differences between these switches?

A: The ZE-N-2S provides higher current ratings (15A AC and 500mA DC) compared to the DTE6-2RN (10A AC and 300mA DC). Both switches operate at identical voltage ratings of 125V AC and 125V DC. The higher current capacity of the ZE-N-2S makes it suitable for applications within the DTE6-2RN's electrical specification.

Q: Are the mechanical dimensions compatible?

A: Yes. Both switches feature round pin plunger actuators with equivalent operating positions (1.812" vs. 1.805"), chassis mount configurations, and screw terminal terminations. The operating force of the ZE-N-2S (800gf) falls within the DTE6-2RN's operating force range (737 ~ 1673gf).

Q: What is the difference in ingress protection ratings?

A: The DTE6-2RN provides IP66 (Dust Tight, Water Resistant) protection, while the ZE-N-2S provides IP65 (Dust Tight, Water Resistant) protection. IP66 offers superior sealing against water jets. Selection depends on the environmental conditions of the application.

Q: How do the operating temperature ranges differ?

A: The DTE6-2RN operates from -32°C to 71°C, while the ZE-N-2S operates from -10°C to 80°C. The DTE6-2RN supports lower temperature operation, while the ZE-N-2S supports higher temperature operation. Application requirements determine which range is appropriate.

Q: Are both switches RoHS compliant?

A: Yes. The DTE6-2RN is RoHS Compliant, and the ZE-N-2S is ROHS3 Compliant. Both meet RoHS requirements. The ROHS3 designation indicates compliance with the current RoHS standard revision.

Q: What is the significance of REACH status differences?

A: The DTE6-2RN carries REACH Unaffected status, while the ZE-N-2S carries REACH Affected status. This indicates different regulatory classifications under REACH (Registration, Evaluation, Authorization and Restriction of Chemicals). Regulatory compliance requirements must be evaluated for the specific application jurisdiction.

Q: Can the ZE-N-2S be used in applications requiring the full -32°C to 71°C temperature range?

A: The ZE-N-2S operates from -10°C to 80°C. It cannot be used in applications requiring operation below -10°C. If the application requires the full -32°C to 71°C range of the DTE6-2RN, the ZE-N-2S is not suitable.

Q: What packaging is available for both switches?

A: Both the DTE6-2RN and ZE-N-2S are supplied in Bulk packaging. The DTE6-2RN has 1023 pieces in stock, while the ZE-N-2S has 35397 pieces in stock.
