DT06-3S-C008 Equivalent & Substitute Parts

Part Overview

The DT06-3S-C008 is a 3-position rectangular connector housing manufactured by TE Connectivity Deutsch Connectors. This plug-type connector features female socket contacts, crimp termination, and latch lock fastening. The housing is constructed from glass-filled polyamide (PA66) with IP68 rating for environmental sealing. The part is classified as obsolete, necessitating identification of equivalent substitute components for ongoing applications and new designs requiring this connector type.

Key Parameters

Parameter	Value
Manufacturer Part Number	DT06-3S-C008
Manufacturer	TE Connectivity Deutsch Connectors
Category	Rectangular Connectors
Series	DT
Connector Type	Plug
Contact Type	Female Socket
Number of Positions	3
Number of Rows	2
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Operating Temperature Range	-55°C to 125°C
Features	IP68
Product Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the DT06-3S-C008 are identified based on strict electrical and mechanical parameter alignment within the DT series rectangular connector family. The substitution criteria are:

Critical Matching Parameters:

Connector Type: Plug
Contact Type: Female Socket
Number of Positions: 3
Number of Rows: 2
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Fastening Type: Latch Lock
Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
Operating Temperature Range: -55°C to 125°C
Features: IP68 (minimum requirement)
Moisture Sensitivity Level: 1 (Unlimited)

All identified substitute parts maintain these core parameters, ensuring functional and mechanical compatibility. Variations in color, packaging, and product status are noted but do not affect substitution eligibility based on electrical and mechanical specifications.

Parameter Comparison

Parameter	DT06-3S-C008	DT06-3S	DT06-3S-EF02
Manufacturer Part Number	DT06-3S-C008	DT06-3S	DT06-3S-EF02
Connector Type	Plug	Plug	Plug
Contact Type	Female Socket	Female Socket	Female Socket
Number of Positions	3	3	3
Number of Rows	2	2	2
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp
Fastening Type	Latch Lock	Latch Lock	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Operating Temperature Range	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C
Features	IP68	IP68, IP6K9K	IP68
Color	Black	Gray	Black
Product Status	Obsolete	Discontinued at DiGi Electronics	Active
RoHS Status	Not specified	ROHS3 Compliant	ROHS3 Compliant
REACH Status	Not specified	REACH Unaffected	REACH Unaffected
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)

Engineering Selection Recommendations

DT06-3S-EF02 is the primary recommended substitute for the obsolete DT06-3S-C008. This part maintains all critical electrical and mechanical parameters while offering active product status. The DT06-3S-EF02 carries ROHS3 compliance and REACH unaffected status, supporting regulatory requirements for new designs and manufacturing environments. Current inventory availability (939 pieces) ensures supply continuity.

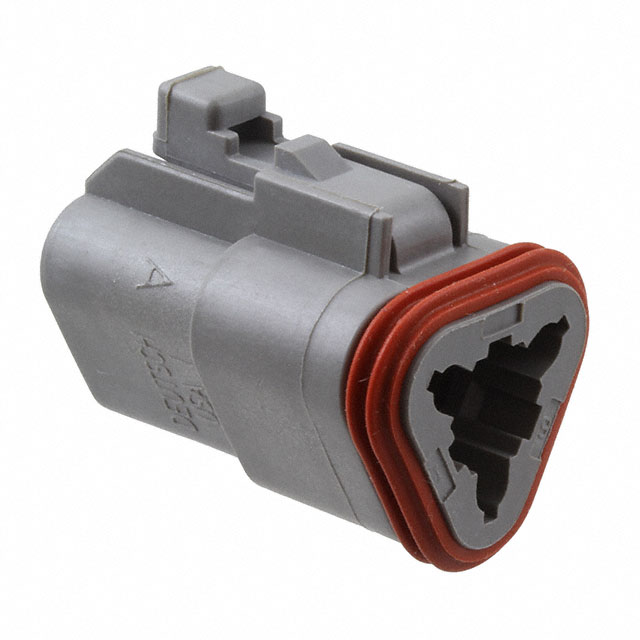

DT06-3S serves as a secondary substitute option. This part is discontinued at DiGi Electronics but remains available through alternative distribution channels. The DT06-3S provides enhanced environmental protection through IP6K9K rating in addition to IP68 sealing. ROHS3 compliance and REACH unaffected status are confirmed. The gray color variant may require design consideration if color matching is specified.

Both substitute parts are manufactured by TE Connectivity Deutsch Connectors within the DT series, ensuring design compatibility and interchangeability based on the specified electrical and mechanical parameters.

Frequently Asked Questions (FAQ)

Q: Can DT06-3S-EF02 directly replace DT06-3S-C008 in existing applications?

A: Yes. Both parts share identical electrical and mechanical specifications: 3-position plug connector with female socket contacts, crimp termination, latch lock fastening, and IP68 environmental rating. The operating temperature range (-55°C to 125°C) and insulation material (PA66 glass-filled polyamide) are identical. Color difference (black for both) does not affect functional compatibility.

Q: What is the difference between DT06-3S and DT06-3S-EF02?

A: The primary differences are product status and environmental rating. DT06-3S-EF02 is active and carries IP68 rating. DT06-3S is discontinued at DiGi Electronics and provides enhanced IP6K9K rating in addition to IP68. Both maintain identical core electrical and mechanical parameters. Color differs (gray for DT06-3S, black for DT06-3S-EF02).

Q: Are contacts included with these connector housings?

A: No. All three parts (DT06-3S-C008, DT06-3S, DT06-3S-EF02) are connector housings only. Contacts must be sourced separately and are not included with the housing.

Q: What packaging options are available for substitute parts?

A: DT06-3S-C008 was supplied in standard packaging. DT06-3S and DT06-3S-EF02 are available in bulk packaging, suitable for production environments and high-volume applications.

Q: Do the substitute parts meet current regulatory compliance standards?

A: DT06-3S-EF02 and DT06-3S both carry ROHS3 compliance and REACH unaffected status, meeting current regulatory requirements for electronic component manufacturing and distribution.

Q: What is the moisture sensitivity level for these connectors?

A: All three parts carry MSL 1 (Unlimited), indicating no moisture sensitivity restrictions during storage, handling, or assembly.
