DT06-2S-CE01 Equivalent & Substitute Parts

Part Overview

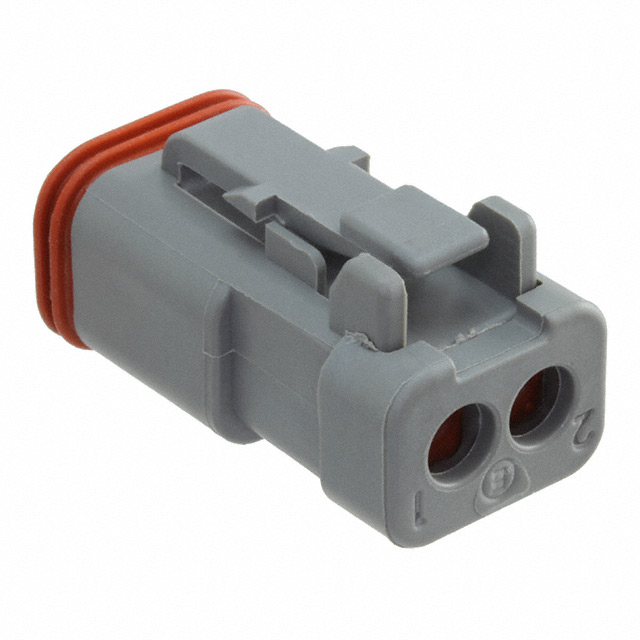

The DT06-2S-CE01 is a 2-position rectangular connector housing manufactured by TE Connectivity Deutsch Connectors. This plug housing is designed for free-hanging, in-line applications with crimp contact termination and latch lock fastening. The connector features a gray polyamide (nylon, glass-filled) insulation material and operates across a temperature range of -55°C to 125°C. The part is actively produced and ROHS3 compliant. Substitute parts are identified to provide alternative sourcing options when the primary part is unavailable or when inventory requirements necessitate alternative manufacturers.

Substiute Parts

DT06-2S-CE01

TE Connectivity Deutsch ConnectorsIn Stock: 1837DT06-2S-CE01 Datasheet

Current PartRFQ

AT06-2S-MM01

Amphenol Sine Systems CorpIn Stock: 3450AT06-2S-MM01 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the DT06-2S-CE01 are identified based on functional and electrical equivalence. The following parameters establish substitution eligibility:

Critical Matching Parameters:

• Connector Type: Plug
• Contact Type: Female Socket
• Number of Positions: 2
• Number of Rows: 1
• Mounting Type: Free Hanging (In-Line)
• Contact Termination: Crimp
• Fastening Type: Latch Lock
• Operating Temperature Range: -55°C ~ 125°C
• RoHS Compliance: ROHS3 Compliant

Allowable Variations:

• Manufacturer and series designation
• Insulation material composition (polyamide versus thermoplastic)
• Moisture Sensitivity Level (MSL)
• Color shade within gray specification
• Feature set (sealed versus cap with reduced wire seals)

The AT06-2S-MM01 manufactured by Amphenol Sine Systems Corp meets all critical matching parameters and qualifies as a direct substitute for the DT06-2S-CE01.

Parameter Comparison

Engineering Selection Recommendations

Both the DT06-2S-CE01 and AT06-2S-MM01 are active products with full regulatory compliance. Selection between these parts is based on availability, supply chain requirements, and inventory management:

DT06-2S-CE01 (TE Connectivity Deutsch Connectors): Primary specification part. ROHS3 compliant. Moisture Sensitivity Level not applicable. Features cap (cover) and reduced wire seals. Polyamide (PA) nylon glass-filled insulation material.

AT06-2S-MM01 (Amphenol Sine Systems Corp): Qualified substitute. ROHS3 compliant. Moisture Sensitivity Level 1 (unlimited). Features sealed design. Thermoplastic insulation material. Higher current inventory availability (3398 pcs versus 1780 pcs).

Both parts satisfy identical electrical and mechanical requirements for 2-position rectangular connector housing applications with crimp termination and latch lock fastening across the full operating temperature range of -55°C to 125°C.

Frequently Asked Questions (FAQ)

Q: Can AT06-2S-MM01 be used as a direct replacement for DT06-2S-CE01?

A: Yes. Both parts are 2-position plug housings with female socket contacts, crimp termination, latch lock fastening, and identical operating temperature ranges. Both are ROHS3 compliant and active products.

Q: What are the differences between these two connector housings?

A: The primary differences are manufacturer, insulation material composition (polyamide versus thermoplastic), and feature design (cap with reduced wire seals versus sealed). The AT06-2S-MM01 has a defined Moisture Sensitivity Level of 1 (unlimited), while the DT06-2S-CE01 lists MSL as not applicable.

Q: Are contacts included with these connector housings?

A: No. Both the DT06-2S-CE01 and AT06-2S-MM01 are housings only. Contacts must be sourced separately and crimped into the housing.

Q: Do these connectors support the same wire gauge and crimp specifications?

A: Both connectors use crimp contact termination and are designed for identical mounting and fastening configurations. Specific wire gauge and crimp tool specifications are determined by the contact part numbers, which are not included with the housing.

Q: What is the difference between the cap (cover) and sealed features?

A: The DT06-2S-CE01 includes a cap (cover) with reduced wire seals. The AT06-2S-MM01 features a sealed design. Both provide environmental protection appropriate for their respective feature sets.

Q: Are both parts suitable for outdoor or harsh environment applications?

A: Both connectors operate across -55°C to 125°C and feature environmental protection. The DT06-2S-CE01 includes IP68 and IP6K9K ratings. Specific environmental suitability depends on the complete connector assembly, including contacts and mating configuration.

Q: What is the significance of ROHS3 compliance for these parts?

A: ROHS3 compliance indicates conformance to the Restriction of Hazardous Substances Directive. Both parts meet this regulatory requirement for use in regulated markets and applications.
