DT06-2S-C017 Equivalent & Substitute Parts

Part Overview

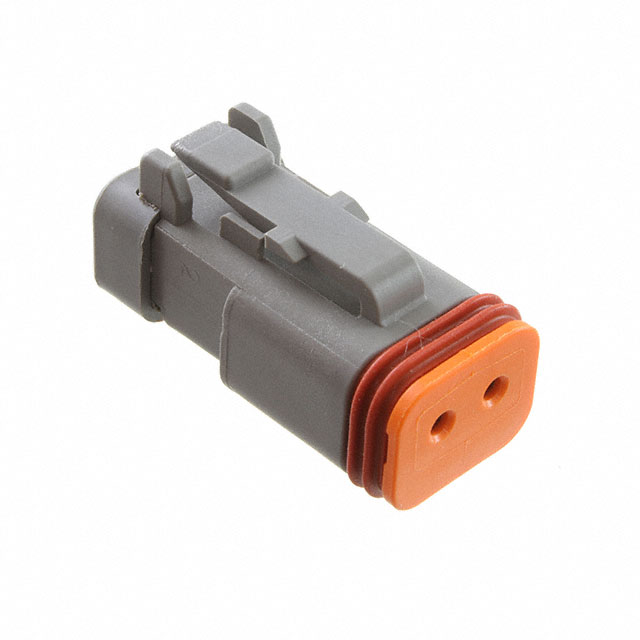

The DT06-2S-C017 is a 2-position rectangular connector plug housing manufactured by TE Connectivity Deutsch Connectors. This connector is designed for applications requiring sealed, in-line connections with crimp termination and latch lock fastening. The part is classified as Active product status with full RoHS3 compliance and REACH unaffected designation. Substitute parts are identified when original inventory is unavailable, when procurement lead times require alternative sourcing, or when design flexibility permits cross-manufacturer compatibility within specified electrical and mechanical parameters.

Substiute Parts

DT06-2S-C017

TE Connectivity Deutsch ConnectorsIn Stock: 2404DT06-2S-C017 Datasheet

Current PartRFQ

DT06-2S-EP06

TE Connectivity Deutsch ConnectorsIn Stock: 5306DT06-2S-EP06 Datasheet

Parametric EquivalentRFQ

AT06-2S-SS01

Amphenol Sine Systems CorpIn Stock: 1762AT06-2S-SS01 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the DT06-2S-C017 are grouped into two categories based on substitution relationship type:

Parametric Equivalent: DT06-2S-EP06 shares identical core functional parameters with the main part. Both are TE Connectivity Deutsch Connectors from the DT series with 2-position plug housings, female socket contacts, crimp termination, latch lock fastening, and identical operating temperature range. Both maintain RoHS3 compliance and REACH unaffected status. The primary difference is color specification, where DT06-2S-C017 specifies Gray while DT06-2S-EP06 does not specify color. Both feature IP68 and IP6K9K sealing with sealed gasket protection.

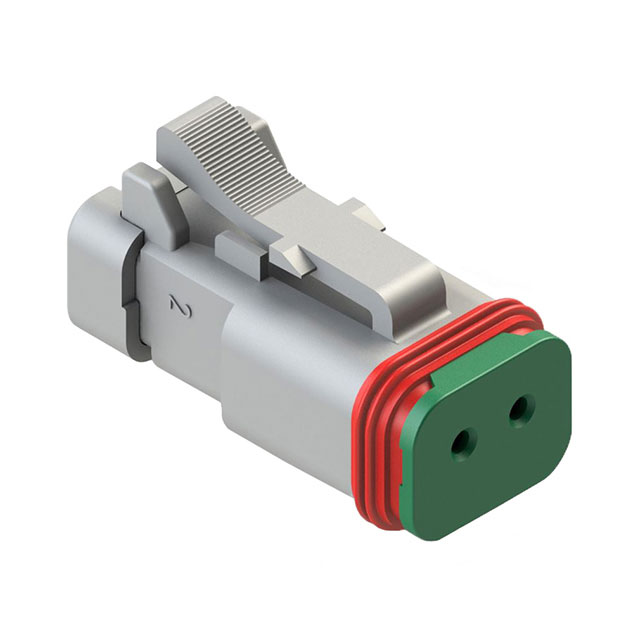

Similar Manufacturer Part: AT06-2S-SS01 is manufactured by Amphenol Sine Systems Corp and functions as a cross-manufacturer alternative. This part maintains compatibility across all critical parameters: 2-position plug housing, female socket contacts, crimp termination, latch lock fastening, and identical -55°C ~ 125°C operating temperature range. Both parts are RoHS3 compliant and REACH unaffected. The AT06-2S-SS01 differs in insulation material composition (Thermoplastic versus Polyamide PA66) and sealing features (Cap/Cover and Sealed versus IP68/IP6K9K/Sealed Gasket).

Substitution eligibility is determined by matching: connector type, contact type, number of positions, number of rows, mounting type, contact termination method, fastening type, and operating temperature range.

Parameter Comparison

Engineering Selection Recommendations

DT06-2S-EP06 Selection: This part is the primary parametric equivalent and is recommended when DT06-2S-C017 inventory is unavailable. Both parts are manufactured by TE Connectivity Deutsch Connectors within the same DT series, ensuring design continuity and supply chain consistency. DT06-2S-EP06 maintains all critical functional parameters and compliance certifications. Current inventory of 5219 pieces provides superior availability compared to the main part. Selection of this equivalent does not require design modification or re-qualification.

AT06-2S-SS01 Selection: This cross-manufacturer alternative is suitable when TE Connectivity Deutsch Connectors parts are unavailable and design specifications permit use of an alternative manufacturer. The AT06-2S-SS01 maintains all core functional parameters and compliance requirements. This part is manufactured by Amphenol Sine Systems Corp and represents a different product line with distinct insulation material and sealing feature specifications. Cross-manufacturer substitution requires confirmation that application requirements are compatible with Thermoplastic insulation material and Cap/Cover sealing features rather than the IP68/IP6K9K sealed gasket design of the original part.

All three parts maintain Active product status, RoHS3 compliance, and REACH unaffected designation, confirming regulatory equivalence for applications subject to these compliance frameworks.

Frequently Asked Questions (FAQ)

Q: Can DT06-2S-EP06 be used as a direct replacement for DT06-2S-C017?

A: Yes. DT06-2S-EP06 is a parametric equivalent with identical connector type, contact type, number of positions, mounting type, contact termination, fastening type, and operating temperature range. Both parts are manufactured by TE Connectivity Deutsch Connectors within the DT series. The primary specification difference is color designation. Both parts are RoHS3 compliant and REACH unaffected.

Q: What are the key differences between DT06-2S-C017 and AT06-2S-SS01?

A: Both parts share identical core functional parameters: 2-position plug housing, female socket contacts, crimp termination, latch lock fastening, and -55°C ~ 125°C operating temperature. The differences are: (1) Manufacturer—TE Connectivity Deutsch Connectors versus Amphenol Sine Systems Corp; (2) Insulation material—Polyamide PA66 Glass Filled versus Thermoplastic; (3) Sealing features—IP68/IP6K9K/Sealed Gasket versus Cap/Cover/Sealed; (4) Series designation—DT versus AT Series™.

Q: Are contacts included with these connector housings?

A: No. All three parts (DT06-2S-C017, DT06-2S-EP06, and AT06-2S-SS01) are connector housings only. Contacts are not included and must be sourced separately.

Q: What is the difference between a parametric equivalent and a similar manufacturer part?

A: A parametric equivalent (DT06-2S-EP06) is manufactured by the same company within the same product series and maintains all specified parameters. A similar manufacturer part (AT06-2S-SS01) is from a different manufacturer but maintains compatibility across all critical functional parameters. Parametric equivalents typically require no design changes, while similar manufacturer parts may require application verification due to differences in material composition and sealing specifications.

Q: Can I use AT06-2S-SS01 in applications requiring IP68 and IP6K9K sealing?

A: AT06-2S-SS01 features Cap/Cover and Sealed specifications rather than IP68/IP6K9K/Sealed Gasket. Application compatibility depends on whether the specific sealing performance requirements of your application are met by Cap/Cover sealing. This determination must be made based on your application's environmental exposure and protection requirements.

Q: What is the current inventory status for each part?

A: DT06-2S-C017 has 2354 pieces in stock. DT06-2S-EP06 has 5219 pieces in stock. AT06-2S-SS01 has 1669 pieces in stock. All parts are listed as New Original In Stock.

Q: Are all three parts RoHS3 compliant?

A: Yes. DT06-2S-C017, DT06-2S-EP06, and AT06-2S-SS01 are all RoHS3 compliant and REACH unaffected, confirming regulatory equivalence for applications subject to these compliance requirements.
