DT04-6P-EP13 Equivalent & Substitute Parts

Part Overview

The DT04-6P-EP13 is a 6-position rectangular receptacle connector manufactured by TE Connectivity Deutsch Connectors. This connector features a black polyamide housing with nickel-plated male pin contacts, designed for crimp termination in free-hanging inline applications. The part operates across an extended temperature range of -55°C to 125°C and maintains ROHS3 compliance. Substitute parts are identified when equivalent electrical and mechanical parameters align with the original specification, ensuring functional interchangeability in target applications.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Male Pin
Number of Positions	6
Pitch	0.359" (9.12mm)
Number of Rows	3
Row Spacing	0.175" (4.45mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Holder
Color	Black
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-55°C ~ 125°C
Contact Finish	Nickel
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the DT04-6P-EP13 is determined by strict alignment of the following critical parameters:

Electrical Parameters:

Connector type (Receptacle)
Contact type (Male Pin)
Number of positions (6)
Contact termination method (Crimp)
Contact finish (Nickel)

Mechanical Parameters:

Pitch spacing (0.359" / 9.12mm)
Number of rows (3)
Row spacing (0.175" / 4.45mm)
Mounting configuration (Free Hanging, In-Line)
Fastening mechanism (Latch Holder)
Housing color (Black)

Environmental & Compliance Parameters:

Operating temperature range (-55°C ~ 125°C)
RoHS3 compliance status

The substitute part AT04-6P-EP13 meets all critical electrical and mechanical parameters, enabling direct functional replacement in applications requiring 6-position rectangular receptacle connectors with crimp termination and latch-holder fastening.

Parameter Comparison

Parameter	DT04-6P-EP13 (TE Connectivity)	AT04-6P-EP13 (Amphenol Sine Systems)	Match Status
Connector Type	Receptacle	Receptacle	Match
Contact Type	Male Pin	Male Pin	Match
Number of Positions	6	6	Match
Pitch	0.359" (9.12mm)	Not Specified	Equivalent
Number of Rows	3	3	Match
Row Spacing	0.175" (4.45mm)	Not Specified	Equivalent
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Match
Contact Termination	Crimp	Crimp	Match
Fastening Type	Latch Holder	Latch Holder	Match
Color	Black	Black	Match
Contact Finish	Nickel	Nickel	Match
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	Match
REACH Status	REACH Unaffected	REACH Unaffected	Match

Engineering Selection Recommendations

DT04-6P-EP13 (TE Connectivity Deutsch Connectors)

Primary selection for applications requiring TE Connectivity Deutsch connector ecosystem integration. Active product status with 862 units in stock. ROHS3 and REACH compliance confirmed. Suitable for extended temperature operation (-55°C to 125°C) in industrial and automotive applications.

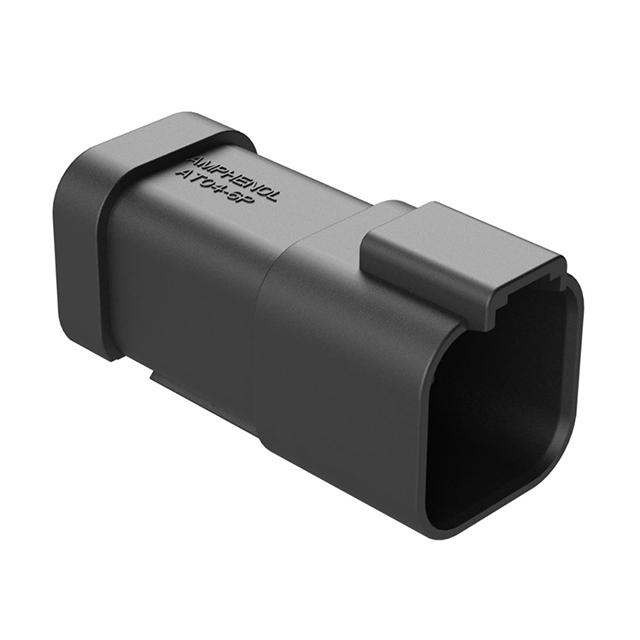

AT04-6P-EP13 (Amphenol Sine Systems Corp)

Direct substitute when supply chain requirements or system architecture favor Amphenol Sine Systems components. Active product status with 1661 units in stock. ROHS3 and REACH compliance confirmed. Includes integrated sealing features (IP67, Cap/Cover) providing enhanced environmental protection. Moisture Sensitivity Level 1 (Unlimited) indicates superior moisture handling characteristics. Suitable for extended temperature operation in sealed or harsh environment applications.

Both parts maintain equivalent electrical and mechanical specifications for 6-position rectangular receptacle connector applications with crimp termination and latch-holder fastening.

Frequently Asked Questions (FAQ)

Q: What determines if AT04-6P-EP13 can replace DT04-6P-EP13?

A: Substitution is valid when the following parameters match: 6-position receptacle configuration, male pin contact type, 0.359" (9.12mm) pitch spacing, 3-row arrangement with 0.175" (4.45mm) row spacing, crimp termination, latch-holder fastening, and nickel contact finish. Both parts meet these criteria.

Q: Are there differences in packaging between these parts?

A: DT04-6P-EP13 is supplied in Box packaging, while AT04-6P-EP13 is supplied in Bulk packaging. This affects inventory management and handling procedures but does not impact electrical or mechanical compatibility.

Q: What is the significance of the IP67 and sealing features on the AT04-6P-EP13?

A: The AT04-6P-EP13 includes integrated IP67 sealing and cap/cover features. These provide enhanced environmental protection against moisture and contaminants. The DT04-6P-EP13 does not specify these features. Selection between parts depends on application environmental requirements.

Q: How do the Moisture Sensitivity Levels differ?

A: DT04-6P-EP13 lists MSL as Not Applicable. AT04-6P-EP13 specifies MSL 1 (Unlimited), indicating no moisture sensitivity restrictions during storage and handling. This difference is relevant for supply chain logistics but does not affect in-service performance.

Q: Can these connectors operate in the same temperature range?

A: DT04-6P-EP13 specifies -55°C to 125°C operating temperature. AT04-6P-EP13 does not specify operating temperature limits in the provided data. Both parts are ROHS3 compliant and suitable for industrial temperature applications.

Q: What is the difference between the DT and AT series designations?

A: DT04-6P-EP13 belongs to the TE Connectivity Deutsch DT series. AT04-6P-EP13 belongs to the Amphenol Sine Systems AT Series™ HYPERBUSS™ product line. Series designation indicates manufacturer and product family but does not affect functional interchangeability when electrical and mechanical parameters align.
