DT04-3P-CE09 Equivalent & Substitute Parts

Part Overview

The DT04-3P-CE09 is a 3-position rectangular connector receptacle housing manufactured by TE Connectivity Deutsch Connectors. This component serves as the housing element in rectangular connector assemblies, designed for free-hanging in-line applications with crimp contact termination. The part is actively produced and maintains full compliance with ROHS3 and REACH regulations. Substitute parts are identified to address inventory availability, color preferences, or equivalent performance requirements across the DT and AT series connector families.

Substiute Parts

DT04-3P-CE09

TE Connectivity Deutsch ConnectorsIn Stock: 1277DT04-3P-CE09 Datasheet

Current PartRFQ

DT04-3P-E003

TE Connectivity Deutsch ConnectorsIn Stock: 1574DT04-3P-E003 Datasheet

Parametric EquivalentRFQ

DT04-3P-E005

TE Connectivity Deutsch ConnectorsIn Stock: 66161DT04-3P-E005 Datasheet

Parametric EquivalentRFQ

AT04-3P-SR02BLK

Amphenol Sine Systems CorpIn Stock: 2934AT04-3P-SR02BLK Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the DT04-3P-CE09 are classified into two categories based on parametric equivalence and similarity criteria.

Parametric Equivalents share all critical functional parameters with the main part: 3-position receptacle housing, 2-row configuration, male pin contact type, free-hanging in-line mounting, crimp termination, latch holder fastening, identical operating temperature range (-55°C to 125°C), and equivalent environmental protection features (IP68, IP6K9K). These parts differ only in color or insulation material composition while maintaining identical electrical and mechanical performance. Parametric equivalents are DT04-3P-E005 and DT04-3P-E003.

Similar Parts maintain the same connector type, position count, row configuration, mounting style, and termination method, but originate from a different manufacturer series (Amphenol AT series versus TE Connectivity DT series). The AT04-3P-SR02BLK shares functional compatibility but includes strain relief features and differs in insulation material specification. This part is classified as similar rather than parametric equivalent due to manufacturer and series differences.

The key parameters determining substitution eligibility are: connector type (receptacle), number of positions (3), number of rows (2), contact type (male pin), mounting type (free hanging in-line), contact termination (crimp), fastening type (latch holder), and operating temperature range (-55°C to 125°C).

Parameter Comparison

Engineering Selection Recommendations

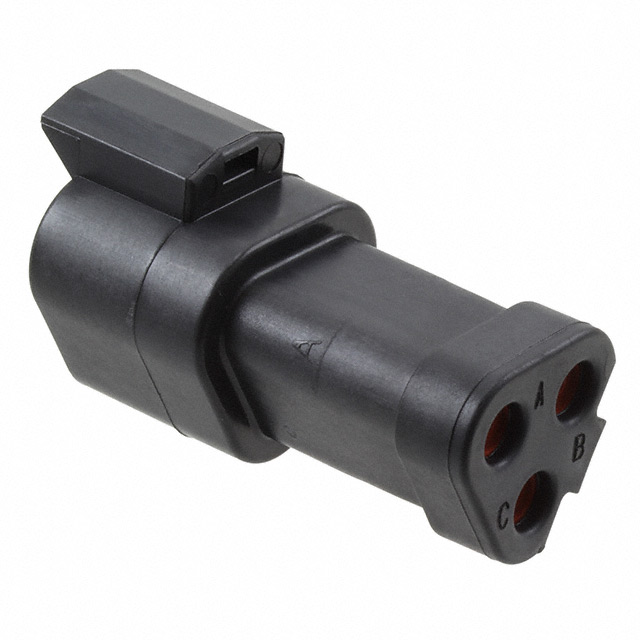

DT04-3P-E005 is a parametric equivalent suitable for direct substitution. This part maintains identical electrical and mechanical specifications to the DT04-3P-CE09, with the exception of insulation material composition (plastic versus polyamide glass-filled). Both parts are ROHS3 compliant, REACH unaffected, and actively produced. The DT04-3P-E005 offers significantly higher inventory availability (66,093 units) compared to the main part (1,225 units), making it the preferred choice for applications requiring immediate availability.

DT04-3P-E003 is a parametric equivalent with identical functional parameters to the DT04-3P-CE09. The primary distinction is color specification (gray versus black) and insulation material composition (plastic versus polyamide glass-filled). This part is ROHS3 compliant, REACH unaffected, and actively produced. Selection of this part is appropriate when color coding requirements permit gray housing or when inventory constraints necessitate alternative sourcing.

AT04-3P-SR02BLK is a similar part from the Amphenol AT series that maintains functional compatibility across all critical parameters: 3-position receptacle, 2-row configuration, male pin contacts, free-hanging in-line mounting, crimp termination, and latch holder fastening. This part operates within the identical temperature range (-55°C to 125°C) and maintains ROHS3 compliance and REACH unaffected status. The AT04-3P-SR02BLK includes strain relief features and differs in insulation material specification (thermoplastic). This part is suitable for applications where cross-manufacturer compatibility is acceptable and strain relief functionality is beneficial.

Frequently Asked Questions (FAQ)

Q: Can DT04-3P-E005 be used as a direct replacement for DT04-3P-CE09?

A: Yes. The DT04-3P-E005 is a parametric equivalent with identical connector type, position count, row configuration, contact type, mounting style, termination method, fastening type, and operating temperature range. The insulation material differs (plastic versus polyamide glass-filled), but both materials meet the specified environmental protection requirements (IP68, IP6K9K) and regulatory compliance standards (ROHS3, REACH).

Q: What is the difference between DT04-3P-E003 and DT04-3P-CE09?

A: The DT04-3P-E003 differs from the DT04-3P-CE09 in two aspects: housing color (gray versus black) and insulation material composition (plastic versus polyamide glass-filled). All other parameters—connector type, position count, row configuration, contact type, mounting style, termination method, fastening type, environmental protection features, and operating temperature range—are identical.

Q: Is the AT04-3P-SR02BLK compatible with DT04-3P-CE09 applications?

A: The AT04-3P-SR02BLK maintains functional compatibility across all critical parameters: 3-position receptacle housing, 2-row configuration, male pin contacts, free-hanging in-line mounting, crimp termination, latch holder fastening, and identical operating temperature range. However, this part originates from a different manufacturer series (Amphenol AT versus TE Connectivity DT) and includes strain relief features. Compatibility depends on application-specific requirements regarding manufacturer series consistency and strain relief functionality.

Q: What are the key parameters that determine if a part can substitute for DT04-3P-CE09?

A: Substitution eligibility is determined by the following parameters: connector type (receptacle), number of positions (3), number of rows (2), contact type (male pin), mounting type (free hanging in-line), contact termination (crimp), fastening type (latch holder), and operating temperature range (-55°C to 125°C). Parts matching all these parameters are considered functionally equivalent regardless of color or insulation material composition differences.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. All substitute parts listed—DT04-3P-E005, DT04-3P-E003, and AT04-3P-SR02BLK—are ROHS3 compliant and REACH unaffected, matching the regulatory status of the main part DT04-3P-CE09.

Q: What is the inventory status of substitute parts?

A: DT04-3P-E005 has the highest inventory availability at 66,093 units. DT04-3P-E003 has 1,504 units in stock. AT04-3P-SR02BLK has 2,888 units available. The main part DT04-3P-CE09 has 1,225 units in stock.

Q: Do substitute parts include contacts?

A: No. All parts listed—DT04-3P-CE09, DT04-3P-E005, DT04-3P-E003, and AT04-3P-SR02BLK—are connector housings only. Contacts are not included and must be sourced separately.
