DT04-3P-C015 Equivalent & Substitute Parts
Part Overview
The DT04-3P-C015 is a 3-position rectangular connector receptacle housing manufactured by TE Connectivity Deutsch Connectors. This component is classified as a receptacle with male pin contact type, designed for free-hanging in-line mounting applications. The housing features crimp-type contact termination with latch holder fastening and is constructed from glass-filled polyamide material. The part is actively produced and maintains ROHS3 compliance with REACH unaffected status.
Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector housing specifications, allowing for direct functional replacement in applications where the primary part number is unavailable or inventory constraints exist.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Connector Type | Receptacle |
| Contact Type | Male Pin |
| Number of Positions | 3 |
| Number of Rows | 2 |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | Latch Holder |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Operating Temperature Range | -55°C ~ 125°C |
| Features | IP68, IP6K9K, Reduced Wire Seals |
| RoHS Status | ROHS3 Compliant |
| REACH Status | REACH Unaffected |
Substitute Part Grouping Explanation
Substitute parts for the DT04-3P-C015 are classified into two categories based on parameter alignment:
Parametric Equivalents maintain all critical electrical and mechanical specifications including connector type (receptacle), contact type (male pin), number of positions (3), number of rows (2), mounting type (free hanging in-line), contact termination (crimp), fastening type (latch holder), insulation material composition, operating temperature range (-55°C ~ 125°C), and compliance certifications (ROHS3, REACH unaffected). Parametric equivalents differ only in housing color or minor variant designations within the same base product series.
Similar Parts maintain the core functional parameters (receptacle connector, male pin contact, 3-position, 2-row configuration, free-hanging in-line mounting, crimp termination, latch holder fastening, and identical operating temperature range) but originate from different manufacturers or product series. Similar parts may have variations in insulation material composition or feature specifications while preserving substitution capability.
Parameter Comparison
| Parameter | DT04-3P-C015 | DT04-3P-CE02 | DT04-3P-CE04 | AT04-3P-RD01 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | Amphenol Sine Systems Corp |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin |
| Number of Positions | 3 | 3 | 3 | 3 |
| Number of Rows | 2 | 2 | 2 | 2 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Contact Termination | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Latch Holder | Latch Holder | Latch Holder | Latch Holder |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Housing Color | Gray | Black | Gray | Gray |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| REACH Status | REACH Unaffected | REACH Unaffected | REACH Unaffected | REACH Unaffected |
Engineering Selection Recommendations
DT04-3P-CE02 serves as a parametric equivalent to DT04-3P-C015 within the TE Connectivity Deutsch Connectors DT series. Both parts maintain identical electrical and mechanical specifications with the exception of housing color (black versus gray). Selection of DT04-3P-CE02 is appropriate when color differentiation is not a functional requirement and inventory availability of the primary part number is constrained. Both parts carry active product status and equivalent compliance certifications.

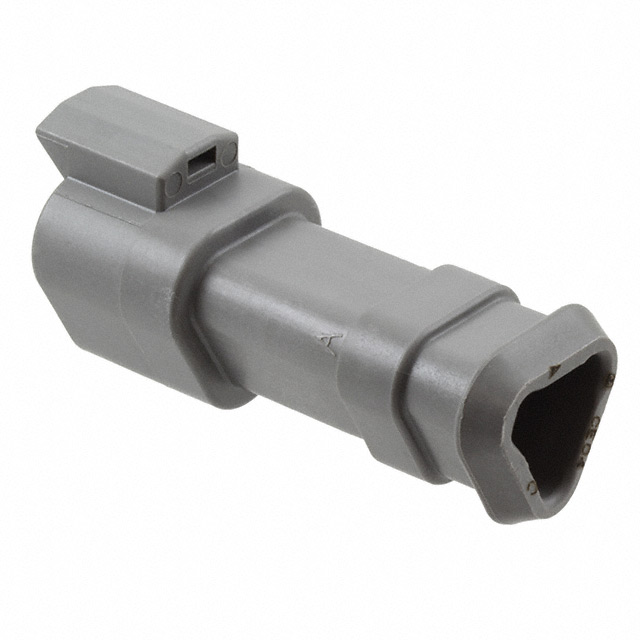

DT04-3P-CE04 functions as a parametric equivalent with identical housing color (gray) to the primary part number. This part number represents an alternative variant within the same product series and maintains all critical specifications. DT04-3P-CE04 is suitable for direct substitution when the primary part number is unavailable.
AT04-3P-RD01 is classified as a similar part from Amphenol Sine Systems Corp and maintains all core functional parameters required for substitution. This cross-manufacturer alternative preserves the 3-position, 2-row receptacle configuration with male pin contacts, free-hanging in-line mounting, crimp termination, and latch holder fastening. The AT04-3P-RD01 operates within the identical temperature range (-55°C ~ 125°C) and maintains equivalent compliance status. Selection of the Amphenol alternative is appropriate when TE Connectivity Deutsch Connectors parts are unavailable and cross-manufacturer compatibility is acceptable within the application design.
Frequently Asked Questions (FAQ)
Q: Can DT04-3P-CE02 replace DT04-3P-C015 in all applications?
A: DT04-3P-CE02 maintains all electrical and mechanical parameters equivalent to DT04-3P-C015. The only difference is housing color (black versus gray). Substitution is valid unless color specification is a functional requirement of the application.
Q: What is the difference between parametric equivalents and similar parts?
A: Parametric equivalents (DT04-3P-CE02 and DT04-3P-CE04) are from the same manufacturer and product series with identical specifications except for minor variants such as color. Similar parts (AT04-3P-RD01) originate from different manufacturers but maintain equivalent core functional parameters including connector type, contact configuration, position count, mounting method, and operating temperature range.
Q: Are all substitute parts ROHS3 compliant?
A: All listed substitute parts—DT04-3P-CE02, DT04-3P-CE04, and AT04-3P-RD01—carry ROHS3 compliance certification equivalent to the primary part number DT04-3P-C015.
Q: Does the operating temperature range differ among substitute parts?
A: All substitute parts maintain the identical operating temperature range of -55°C ~ 125°C as specified for DT04-3P-C015.
Q: What is the significance of the "Contacts Not Included" note?
A: This designation indicates that the connector housing is supplied without pre-installed contacts. Contacts must be sourced and crimped separately according to application requirements. This specification applies uniformly across all listed parts.
Q: Can AT04-3P-RD01 be used interchangeably with TE Connectivity parts in production?
A: AT04-3P-RD01 maintains functional equivalence in terms of connector type, position count, mounting configuration, and operating specifications. Cross-manufacturer substitution is valid when design specifications do not mandate a specific manufacturer requirement.
Q: Are there differences in insulation material between substitute parts?
A: DT04-3P-C015, DT04-3P-CE02, and DT04-3P-CE04 utilize polyamide (PA) nylon glass-filled insulation material. AT04-3P-RD01 specifies thermoplastic insulation material. Both material compositions support the identical operating temperature range and maintain equivalent performance characteristics for the specified application parameters.
