DT04-2P-E003 Equivalent & Substitute Parts

Part Overview

The DT04-2P-E003 is a 2-position rectangular connector receptacle housing manufactured by TE Connectivity Deutsch Connectors. This connector is designed for free-hanging, in-line applications with crimp termination and latch holder fastening. The housing features IP68 and IP6K9K protection ratings, making it suitable for harsh environmental conditions. The part is actively produced and ROHS3 compliant. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector series, allowing for functional interchangeability in applications where specific color or series variants are acceptable.

Substiute Parts

DT04-2P-E003

TE Connectivity Deutsch ConnectorsIn Stock: 1349DT04-2P-E003 Datasheet

Current PartRFQ

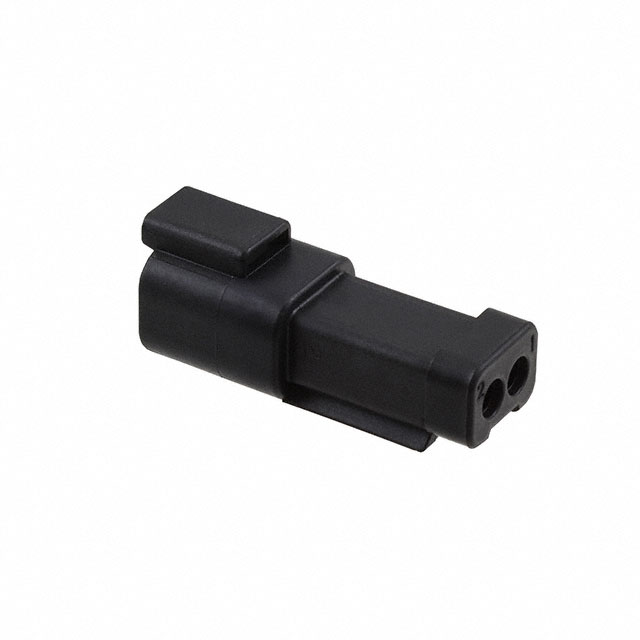

DT04-2P-E005

TE Connectivity Deutsch ConnectorsIn Stock: 4853DT04-2P-E005 Datasheet

Parametric EquivalentRFQ

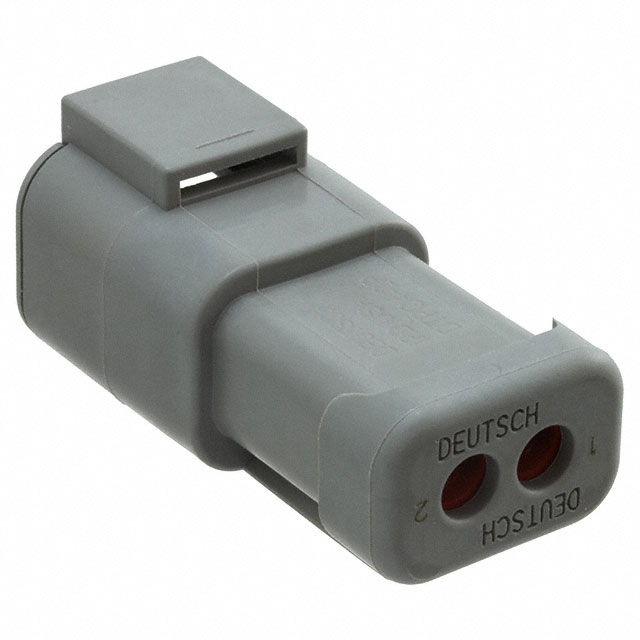

DTP04-2P-E003

TE Connectivity Deutsch ConnectorsIn Stock: 485003DTP04-2P-E003 Datasheet

Parametric EquivalentRFQ

AT04-2P-EC01

Amphenol Sine Systems CorpIn Stock: 1713AT04-2P-EC01 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the DT04-2P-E003 are classified based on strict electrical and mechanical parameter matching. The primary substitution criteria are:

Parametric Equivalents maintain all critical specifications including connector type (receptacle), contact type (male pin), number of positions (2), mounting configuration (free hanging in-line), contact termination method (crimp), fastening type (latch holder), operating temperature range (-55°C ~ 125°C), and protection features (IP68, IP6K9K). Parametric equivalents may differ only in color or series designation while preserving functional compatibility.

Similar Parts share the same core electrical and mechanical characteristics but may have variations in specific features or material composition. These parts maintain compatibility with the primary application requirements but require verification of feature parity before selection.

The following parts meet substitution criteria for the DT04-2P-E003:

• DT04-2P-E005: Parametric equivalent (color variant)
• DTP04-2P-E003: Parametric equivalent (series variant)
• AT04-2P-EC01: Similar part (alternative manufacturer)

Parameter Comparison

Engineering Selection Recommendations

DT04-2P-E005 is a direct parametric equivalent suitable for applications where color specification is not critical. This part maintains all electrical and mechanical parameters, protection ratings (IP68, IP6K9K), and operating temperature range. Both parts are manufactured by TE Connectivity Deutsch Connectors and carry ROHS3 compliance. Selection of this substitute is appropriate when gray housing color is not a design requirement.

DTP04-2P-E003 is a parametric equivalent within the TE Connectivity Deutsch DTP series. This part maintains all critical specifications including protection ratings and operating temperature range. The DTP series represents an alternative product line from the same manufacturer with equivalent functional performance. This substitute is suitable for applications where series designation flexibility is acceptable.

AT04-2P-EC01 is a similar part manufactured by Amphenol Sine Systems Corp. While this connector maintains the same core electrical and mechanical specifications (2-position receptacle, male pin contact, crimp termination, latch holder fastening, -55°C ~ 125°C operating range), it does not include IP68 and IP6K9K protection ratings. This part is suitable only for applications where enhanced environmental protection is not required. The AT Series™ connector uses thermoplastic insulation material compared to the plastic insulation of the DT series.

All substitute parts carry ROHS3 compliance and REACH unaffected status, meeting regulatory requirements equivalent to the primary part.

Frequently Asked Questions (FAQ)

Q: Can DT04-2P-E005 be used as a direct replacement for DT04-2P-E003?

A: Yes. The DT04-2P-E005 is a parametric equivalent with identical electrical and mechanical specifications. The only difference is housing color (black versus gray). Both parts maintain IP68 and IP6K9K protection ratings and operate across the same temperature range (-55°C ~ 125°C).

Q: What is the difference between DT04-2P-E003 and DTP04-2P-E003?

A: Both parts are manufactured by TE Connectivity Deutsch Connectors and maintain identical electrical and mechanical parameters. The primary difference is the product series designation (DT versus DTP). Both provide equivalent functional performance with IP68 and IP6K9K protection ratings.

Q: Is AT04-2P-EC01 compatible with applications requiring IP68 and IP6K9K ratings?

A: No. The AT04-2P-EC01 does not include IP68 and IP6K9K protection ratings. This part is suitable only for applications where enhanced environmental protection is not specified. The AT04-2P-EC01 includes only a cap (cover) feature without the advanced protection ratings of the DT series.

Q: Are contacts included with these connector housings?

A: No. All listed parts (DT04-2P-E003, DT04-2P-E005, DTP04-2P-E003, and AT04-2P-EC01) are connector housings only. Contacts must be sourced separately and are not included with the housing purchase.

Q: What is the wire gauge compatibility for AT04-2P-EC01?

A: The AT04-2P-EC01 is specified for 14-20 AWG wire gauge. This specification is provided in the part description and should be verified against application requirements before selection.

Q: Do all substitute parts meet RoHS3 compliance?

A: Yes. All listed parts (DT04-2P-E003, DT04-2P-E005, DTP04-2P-E003, and AT04-2P-EC01) are ROHS3 compliant and REACH unaffected, meeting current regulatory requirements.
