DSA9-12F Equivalent & Substitute Parts

Part Overview

The DSA9-12F is an avalanche diode rated for 1200 V DC reverse voltage and 11 A average rectified current in a DO-203AA stud mount package. Manufactured by IXYS, this component is classified as obsolete. Due to its obsolete status, equivalent and substitute parts from active manufacturers are necessary for new designs and ongoing production requirements. Substitute parts maintain the same voltage rating and package type while offering comparable or enhanced electrical characteristics from manufacturers with active product lines.

Key Parameters

Parameter	Value	Unit
Voltage - DC Reverse (Vr) (Max)	1200	V
Current - Average Rectified (Io)	11	A
Voltage - Forward (Vf) (Max) @ If	1.4 V @ 36 A	V @ A
Current - Reverse Leakage @ Vr	3	mA @ 1200 V
Speed	Standard Recovery >500ns, > 200mA (Io)	—
Mounting Type	Chassis, Stud Mount	—
Package / Case	DO-203AA, DO-4, Stud	—
Operating Temperature - Junction	-40°C ~ 180°C	°C
Technology	Avalanche	—
Product Status	Obsolete	—

Substitute Part Grouping Explanation

Substitution of the DSA9-12F is determined by the following critical parameters:

Mandatory Matching Parameters:

Voltage - DC Reverse (Vr) (Max): 1200 V
Mounting Type: Stud Mount
Package / Case: DO-203AA (DO-4)
Speed: Standard Recovery >500ns, > 200mA (Io)

Allowable Variation Parameters:

Current - Average Rectified (Io): Substitute parts must equal or exceed 11 A
Voltage - Forward (Vf) (Max) @ If: Substitute parts must be equal to or lower than 1.4 V
Current - Reverse Leakage @ Vr: Substitute parts must be equal to or lower than 3 mA @ 1200 V
Operating Temperature - Junction: Substitute parts must support the required operating range or exceed it
Technology: Standard technology substitutes are acceptable for avalanche-rated applications

All substitute parts listed maintain the 1200 V reverse voltage rating and DO-203AA stud mount package configuration. Substitute parts from Microchip Technology (1N2244, 1N2244A) provide lower current ratings (5 A) and are suitable only for applications requiring reduced current capacity. Substitute parts from Vishay General Semiconductor (VS-12F120, VS-12F120M, VS-12FR120M) provide matched or superior current ratings (12 A) and are direct functional equivalents.

Parameter Comparison

Parameter	DSA9-12F (Main)	1N2244	1N2244A	VS-12F120	VS-12F120M	VS-12FR120M
Manufacturer	IXYS	Microchip Technology	Microchip Technology	Vishay General Semiconductor	Vishay General Semiconductor	Vishay General Semiconductor
Voltage - DC Reverse (Vr) (Max)	1200 V	1200 V	1200 V	1200 V	1200 V	1200 V
Current - Average Rectified (Io)	11 A	5 A	5 A	12 A	12 A	12 A
Voltage - Forward (Vf) (Max) @ If	1.4 V @ 36 A	1.3 V @ 30 A	1.3 V @ 30 A	1.26 V @ 38 A	1.26 V @ 38 A	1.26 V @ 38 A
Speed	Standard Recovery >500ns, > 200mA (Io)	Standard Recovery >500ns, > 200mA (Io)	Standard Recovery >500ns, > 200mA (Io)	Standard Recovery >500ns, > 200mA (Io)	Standard Recovery >500ns, > 200mA (Io)	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	3 mA @ 1200 V	10 µA @ 1200 V	10 µA @ 1200 V	12 mA @ 1200 V	Not specified	Not specified
Mounting Type	Chassis, Stud Mount	Stud Mount	Stud Mount	Chassis, Stud Mount	Chassis, Stud Mount	Chassis, Stud Mount
Package / Case	DO-203AA, DO-4, Stud	DO-203AA, DO-4, Stud	DO-203AA, DO-4, Stud	DO-203AA, DO-4, Stud	DO-203AA, DO-4, Stud	DO-203AA, DO-4, Stud
Operating Temperature - Junction	-40°C ~ 180°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 175°C	-65°C ~ 175°C	-40°C ~ 180°C
Product Status	Obsolete	Active	Active	Active	Active	Active
RoHS Status	ROHS3 Compliant	Not specified	Not specified	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Technology	Avalanche	Standard	Standard	Standard	Standard	Standard, Reverse Polarity

Engineering Selection Recommendations

For Direct Functional Equivalence (11 A or Higher Current Requirement):

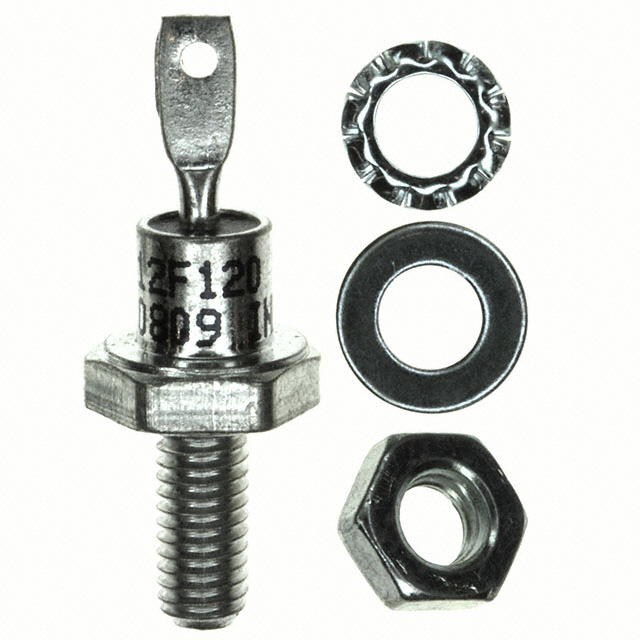

The Vishay General Semiconductor parts VS-12F120, VS-12F120M, and VS-12FR120M are the primary substitutes for the DSA9-12F. All three parts maintain the 1200 V reverse voltage rating, provide 12 A average rectified current (exceeding the original 11 A specification), and are housed in the identical DO-203AA stud mount package. These parts are active products with ROHS3 compliance and REACH unaffected status, ensuring long-term availability and regulatory compliance. The VS-12FR120M variant includes reverse polarity technology and matches the original operating temperature range of -40°C to 180°C.

For Reduced Current Applications (5 A Maximum):

The Microchip Technology parts 1N2244 and 1N2244A are suitable only for applications where the circuit current requirement does not exceed 5 A. Both parts maintain the 1200 V reverse voltage rating and DO-203AA stud mount package. These parts are active products with extended operating temperature ranges (-65°C to 200°C). Selection between 1N2244 and 1N2244A should be based on specific application requirements and availability.

Compliance and Availability:

All substitute parts are active products from established manufacturers with ROHS3 compliance and REACH unaffected status. The Vishay parts offer superior current ratings and are recommended for applications requiring the full 11 A capacity of the original DSA9-12F. Microchip parts are suitable for reduced-current applications only.

Frequently Asked Questions (FAQ)

Q: Can the 1N2244 or 1N2244A directly replace the DSA9-12F in all applications?

A: No. The 1N2244 and 1N2244A are rated for 5 A average rectified current, while the DSA9-12F is rated for 11 A. These parts are suitable only for applications where the circuit current does not exceed 5 A. For applications requiring 11 A or higher current capacity, use VS-12F120, VS-12F120M, or VS-12FR120M.

Q: What is the difference between VS-12F120, VS-12F120M, and VS-12FR120M?

A: All three parts share identical electrical specifications: 1200 V reverse voltage, 12 A average rectified current, and DO-203AA stud mount package. The primary difference is that VS-12FR120M includes reverse polarity technology. VS-12FR120M also matches the original DSA9-12F operating temperature range (-40°C to 180°C), while VS-12F120 and VS-12F120M are rated to -65°C to 175°C.

Q: Are all substitute parts compatible with the original DO-203AA stud mount footprint?

A: Yes. All substitute parts listed are specified for DO-203AA, DO-4, Stud mounting. Physical and electrical compatibility with the original stud mount configuration is maintained across all substitutes.

Q: What is the significance of the reverse leakage current difference between the DSA9-12F and substitute parts?

A: The DSA9-12F specifies 3 mA reverse leakage at 1200 V. The 1N2244 and 1N2244A specify 10 µA, which is significantly lower. The VS-12F120 specifies 12 mA, which is higher. Reverse leakage current affects heat dissipation and circuit performance in high-impedance applications. Selection should be based on specific circuit requirements.

Q: Is the DSA9-12F still available for purchase?

A: The DSA9-12F is classified as obsolete. However, 2800 pieces are reported in stock as new original inventory. For new designs and long-term production, active substitute parts from Vishay General Semiconductor or Microchip Technology are recommended.

Q: What is the difference between avalanche technology (DSA9-12F) and standard technology (substitute parts)?

A: The DSA9-12F uses avalanche diode technology, while all substitute parts use standard diode technology. Both technologies support the same 1200 V reverse voltage rating and standard recovery speed (>500ns). Standard technology substitutes are functionally compatible for the specified electrical parameters.

Q: Which substitute part should I select for a new design?

A: For applications requiring 11 A or higher current capacity, select VS-12F120, VS-12F120M, or VS-12FR120M from Vishay General Semiconductor. These parts are active products with full compliance certifications. For applications requiring 5 A or lower, select 1N2244 or 1N2244A from Microchip Technology. All parts maintain the 1200 V reverse voltage rating and DO-203AA stud mount package.
