DRSCN30 Relay Socket DIN Rail – Equivalent & Substitute Parts

Part Overview

The DRSCN30 is a 4-position DIN rail relay socket manufactured by Sensata-Crydom, designed for use with CN Series relays. This component provides screw terminal connectivity and is classified as obsolete. Due to its obsolete status, identifying functionally equivalent active alternatives is essential for ongoing system maintenance and new design implementations.

Substiute Parts

DRSCN30

Sensata-CrydomIn Stock: 1097DRSCN30 Datasheet

Current PartRFQ

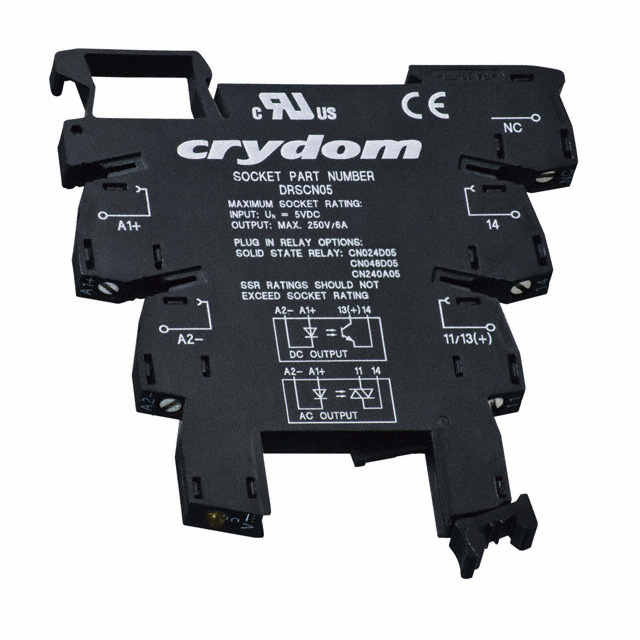

DRSCN05

Sensata TechnologiesIn Stock: 696DRSCN05 Datasheet

MFR RecommendedRFQ

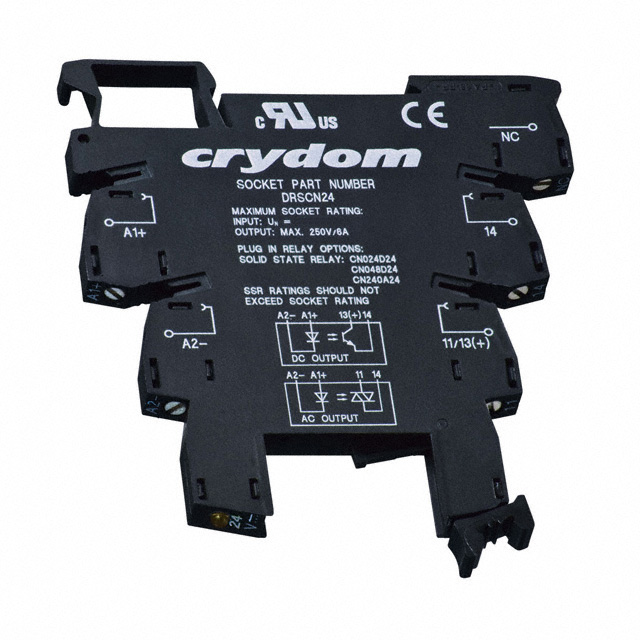

DRSCN24

Sensata-CrydomIn Stock: 1164DRSCN24 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the DRSCN30 is determined by the following critical parameters:

• Number of Positions: 4 (exact match required)
• Mounting Type: DIN Rail (exact match required)
• Termination Style: Screw Terminal (exact match required)
• For Use With/Related Products: CN Series (exact match required)
• Type: Socket (exact match required)

The substitute parts DRSCN05 and DRSCN24 meet all these criteria. Both are active products within the DRSCN series, maintaining identical electrical and mechanical specifications to the obsolete DRSCN30. The primary distinction between substitutes lies in product status and compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

Both DRSCN05 and DRSCN24 are functionally equivalent to the DRSCN30 based on electrical and mechanical parameters. Selection between the two active substitutes should be based on the following factors:

DRSCN24 maintains the original Sensata-Crydom manufacturer designation and is the preferred substitute for direct replacement applications requiring continuity with the original design source.

DRSCN05, manufactured by Sensata Technologies, provides an alternative from the same corporate entity with identical functional specifications and active product status.

Both substitutes carry ROHS3 compliance and REACH unaffected status, meeting current regulatory requirements for new designs and system upgrades.

Frequently Asked Questions (FAQ)

Q: Can DRSCN05 and DRSCN24 be used interchangeably with DRSCN30?

A: Yes. Both substitutes maintain identical specifications for number of positions (4), mounting type (DIN Rail), termination style (Screw Terminal), and CN Series compatibility. Electrical and mechanical compatibility is assured.

Q: Why is DRSCN30 listed as obsolete?

A: Product obsolescence indicates the part is no longer manufactured. DRSCN05 and DRSCN24 are active alternatives within the same DRSCN series.

Q: What is the difference between DRSCN05 and DRSCN24?

A: Both parts are functionally identical. DRSCN24 is manufactured by Sensata-Crydom (original DRSCN30 manufacturer), while DRSCN05 is manufactured by Sensata Technologies. Both are ROHS3 compliant and REACH unaffected.

Q: Are there packaging differences between the substitutes?

A: DRSCN05 is supplied in Box packaging, and DRSCN24 is supplied in Box packaging. Both are suitable for standard component handling and storage.

Q: Do the substitutes meet current compliance standards?

A: Yes. Both DRSCN05 and DRSCN24 are ROHS3 compliant and REACH unaffected, meeting current regulatory requirements for electronic components.
