DPPM12S33K-F Equivalent & Substitute Parts Reference

Part Overview

The DPPM12S33K-F is a 0.033 µF film capacitor manufactured by Cornell Dubilier Electronics (CDE), rated for 1200V DC operation with ±10% tolerance. This radial polypropylene metallized capacitor is designed for high-frequency switching, high-pulse applications, and snubber circuits. The part is currently Active in product status with 1099 units in stock. Equivalent and substitute parts are identified when component availability is limited, supply chain disruptions occur, or design requirements permit operation within alternative electrical and mechanical specifications.

Substiute Parts

DPPM12S33K-F

Cornell Dubilier Electronics (CDE)In Stock: 1163DPPM12S33K-F Datasheet

Current PartRFQ

715P333516MD3

Cornell Dubilier Electronics (CDE)In Stock: 1877715P333516MD3 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the DPPM12S33K-F is permissible when the alternative part maintains the following critical parameters:

Mandatory Matching Parameters:

• Capacitance value: 0.033 µF (exact match required)
• Dielectric material: Polypropylene (PP), Metallized
• Mounting type: Through Hole
• Package type: Radial
• Termination: PC Pins

Allowable Parameter Variations:

• Voltage Rating - DC: Equal to or greater than 1200V
• Voltage Rating - AC: Equal to or greater than 475V
• Tolerance: Equal to or tighter than ±10%
• Operating Temperature Range: Must encompass or exceed -40°C to 105°C
• Physical dimensions: May vary within PCB layout constraints
• RoHS/REACH compliance: Must maintain or exceed current certification level

The substitute part 715P333516MD3 meets all mandatory matching parameters and exceeds voltage ratings (1600V DC, 500V AC) and tolerance specifications (±5%), qualifying it as a direct electrical substitute with enhanced performance margins.

Parameter Comparison

Engineering Selection Recommendations

Primary Part: DPPM12S33K-F

Use the DPPM12S33K-F when:

• Original design specifications require the DPPM series characteristics
• Operating temperature must reach 105°C
• Exact tolerance of ±10% is acceptable for the application
• Physical dimensions of 31.00mm x 14.00mm fit the PCB layout
• Supply availability is confirmed at 1099 units in stock

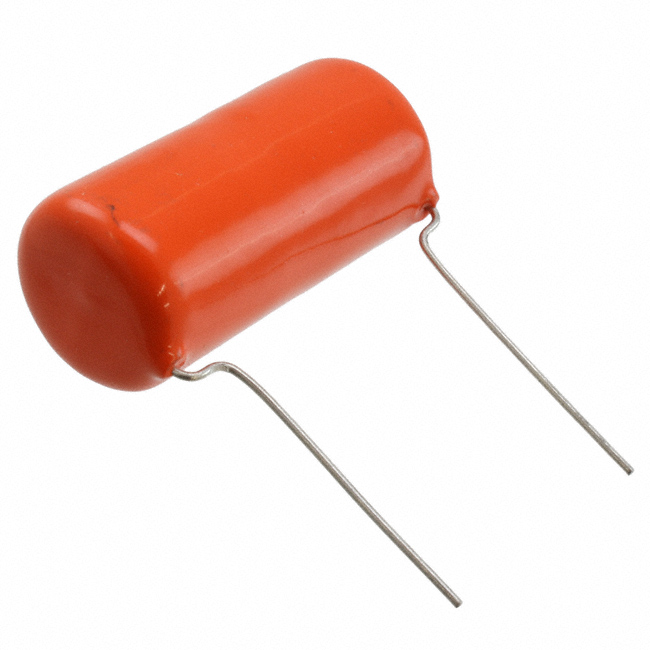

Substitute Part: 715P333516MD3

Use the 715P333516MD3 when:

• DPPM12S33K-F supply is unavailable or lead times exceed project requirements
• Application can operate within the -55°C to 85°C temperature range
• Enhanced voltage margins (1600V DC, 500V AC) provide design safety
• Tighter tolerance (±5%) improves circuit performance
• Physical dimensions of 20.60mm diameter x 41.90mm length accommodate PCB layout
• Orange Drop® 715P series performance characteristics are acceptable
• Both parts maintain ROHS3 compliance and REACH Unaffected status

Critical Consideration:

The operating temperature range differs between parts. The DPPM12S33K-F operates to 105°C, while the 715P333516MD3 operates to 85°C maximum. Substitution is valid only if the application's maximum operating temperature does not exceed 85°C.

Frequently Asked Questions (FAQ)

Q: Can the 715P333516MD3 directly replace the DPPM12S33K-F in all applications?

A: Direct replacement is valid when the application's maximum operating temperature does not exceed 85°C. The DPPM12S33K-F is rated to 105°C, while the 715P333516MD3 is rated to 85°C maximum. All other electrical parameters (capacitance, voltage ratings, tolerance, dielectric material) are compatible or superior in the substitute part.

Q: What is the impact of the ±5% tolerance in the 715P333516MD3 compared to the ±10% tolerance in the DPPM12S33K-F?

A: The ±5% tolerance in the 715P333516MD3 is tighter than the ±10% tolerance in the DPPM12S33K-F. This means the substitute part will have capacitance values closer to the nominal 0.033 µF specification, which may improve circuit performance and stability in applications sensitive to capacitance variation.

Q: Are there physical dimension constraints when substituting the 715P333516MD3 for the DPPM12S33K-F?

A: Yes. The DPPM12S33K-F measures 31.00mm x 14.00mm with a height of 23.50mm and lead spacing of 26.50mm. The 715P333516MD3 measures 20.60mm diameter x 41.90mm length with a height of 28.00mm and lead spacing of 27.80mm. PCB layout must accommodate the larger axial dimension (41.90mm vs. 31.00mm) and slightly increased lead spacing (27.80mm vs. 26.50mm).

Q: Do both parts meet the same compliance standards?

A: Yes. Both the DPPM12S33K-F and 715P333516MD3 are ROHS3 Compliant and REACH Unaffected, meeting current environmental and regulatory requirements.

Q: What voltage margin does the 715P333516MD3 provide over the DPPM12S33K-F?

A: The 715P333516MD3 provides a 400V DC margin (1600V vs. 1200V) and a 25V AC margin (500V vs. 475V). These enhanced voltage ratings provide additional design safety and stress reduction on the component during operation.

Q: Can the DPPM12S33K-F be used as a substitute for the 715P333516MD3?

A: No. The DPPM12S33K-F has lower voltage ratings (1200V DC vs. 1600V DC) and a wider tolerance (±10% vs. ±5%), making it unsuitable as a substitute for applications designed around the 715P333516MD3 specifications.

Q: What is the inventory status for both parts?

A: The DPPM12S33K-F has 1099 units in stock. The 715P333516MD3 has 1860 units in stock. Both parts are listed as Active in product status.
