DPF10-250FI-D Equivalent & Substitute Parts

Part Overview

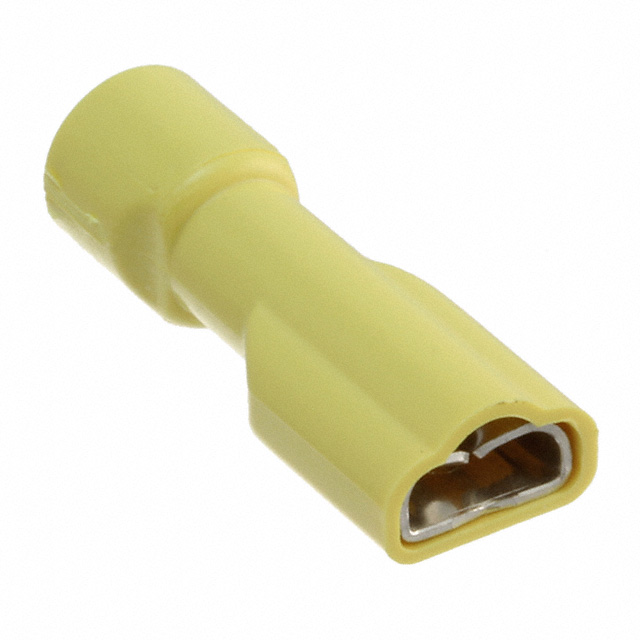

The DPF10-250FI-D is a 0.250" (6.35mm) Quick Connect Female 10-12 AWG Crimp Connector with full insulation, manufactured by Panduit Corp as part of the DiscoGrip™ series. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing maintenance, repair, and new design applications where this connector type is specified.

Substiute Parts

DPF10-250FI-D

Panduit CorpIn Stock: 1291DPF10-250FI-D Datasheet

Current PartRFQ

DNF10-250FI-L

Panduit CorpIn Stock: 3906DNF10-250FI-L Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the DPF10-250FI-D is determined by strict equivalence across the following critical parameters:

• Tab Width and Thickness: 0.250" (6.35mm) width and 0.032" (0.81mm) thickness ensure mechanical compatibility with mating connectors
• Wire Gauge Range: 10-12 AWG specification defines the conductor cross-section compatibility
• Termination Method: Crimp termination must remain consistent
• Gender and Insulation: Female gender and full insulation are functional requirements
• Contact Material and Finish: Brass with tin finish ensures electrical performance and corrosion resistance
• Overall Length: 0.950" (24.13mm) maintains spatial compatibility in assemblies
• Mounting Configuration: Free hanging (in-line) orientation must be preserved

The DNF10-250FI-L meets all these criteria and is identified as the manufacturer-recommended substitute.

Parameter Comparison

Engineering Selection Recommendations

The DNF10-250FI-L is the direct functional equivalent for the obsolete DPF10-250FI-D. Both components are manufactured by Panduit Corp and maintain identical electrical and mechanical specifications across all critical parameters. The substitute part carries Active product status, ensuring continued availability and supply chain reliability.

Both parts maintain full compliance with ROHS3 and REACH regulatory requirements, supporting deployment in regulated applications. The transition from the DiscoGrip™ series (DPF10) to the Pan-Term® series (DNF10) represents a product line evolution while preserving functional compatibility.

Frequently Asked Questions (FAQ)

Q: Can DNF10-250FI-L be used as a direct replacement for DPF10-250FI-D?

A: Yes. Both connectors share identical tab width (0.250"), tab thickness (0.032"), wire gauge range (10-12 AWG), overall length (0.950"), contact material (brass with tin finish), and mounting configuration. Mechanical and electrical compatibility is assured.

Q: What is the primary difference between these two parts?

A: The DPF10-250FI-D is obsolete and belongs to the DiscoGrip™ series, while the DNF10-250FI-L is an active product in the Pan-Term® series. The substitute offers continued availability and supply chain support.

Q: Are there any compliance differences?

A: No. Both parts maintain identical RoHS3 and REACH compliance status, supporting use in regulated industries without modification to design documentation.

Q: Does insulation diameter variation affect substitution?

A: The DPF10-250FI-D specifies insulation diameter of 0.140" ~ 0.218" (4.66mm ~ 5.54mm), while the DNF10-250FI-L specifies 0.220" (5.59mm). Both ranges accommodate 10-12 AWG wire, and the substitute's specification falls within the functional range for this wire gauge category.

Q: What inventory considerations apply?

A: The DPF10-250FI-D has 1,186 pieces in stock (obsolete status), while the DNF10-250FI-L has 3,839 pieces available (active status). For new designs and ongoing production, the substitute ensures superior supply chain continuity.
