Panasonic DP2-80 Equivalent & Substitute Parts Reference

Part Overview

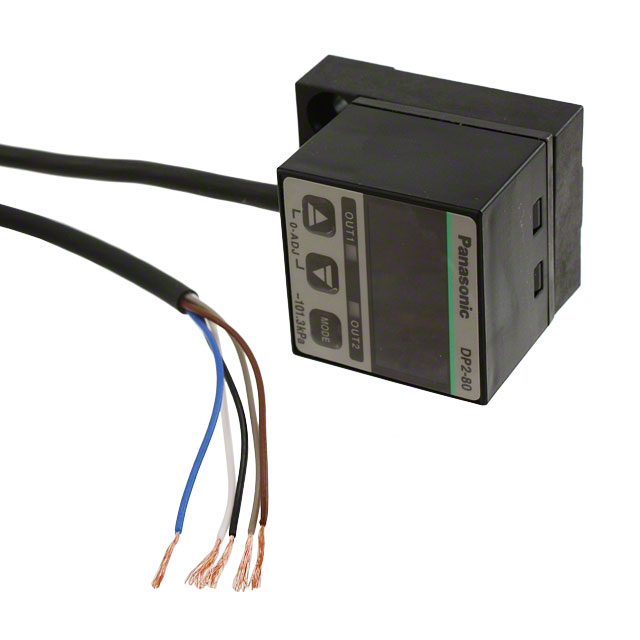

The Panasonic Industrial Automation Sales DP2-80 is a digital vacuum sensor with an NPN open collector output, designed for industrial automation applications. It operates on a supply voltage range of 12V to 24V, features a Female - M5 threaded port, and supports connector termination. Product status for the DP2-80 is obsolete, necessitating alternative model identification to ensure availability in new and ongoing automation projects requiring similar electrical and mechanical specifications.

Substiute Parts

DP2-80

Panasonic Industrial Automation SalesIn Stock: 1140DP2-80 Datasheet

Current PartRFQ

DP-101-M

Panasonic Industrial Automation SalesIn Stock: 1071DP-101-M Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts are identified strictly by matching essential electrical and mechanical parameters with the DP2-80. These parameters include manufacturer, supply voltage, output type, port size and style, termination, operating temperature range, maximum and operating pressure ratings, compliance status (RoHS, MSL), and industrial automation applicability. Substitute parts listed in this reference conform exactly to these provided specifications and compliance metrics.

Parameter Comparison

Engineering Selection Recommendations

The DP2-80 sensor is obsolete; selection of substitute parts should be based on product status and compliance certifications. The DP-101-M sensor is active and conforms to RoHS3, MSL, ECCN, and HTSUS requirements identical to the DP2-80, supporting continuity for applications requiring compliance and regulatory alignment.

Frequently Asked Questions (FAQ)

Q1: What determines if DP-101-M is an acceptable substitute for DP2-80?
A1: Substitution is determined by matching manufacturer, supply voltage, output type, port size, port style, termination method, operating temperature, pressure ratings, and compliance certification.

Q2: Does package type or termination style affect compatibility for substitution?
A2: Compatibility requires identical termination style (“Connector”) and port geometry (“Female - M5, Threaded”), as used in both DP2-80 and DP-101-M.

Q3: Are there differences in pressure type and ratings to consider?
A3: The DP2-80 is specified for vacuum; DP-101-M is a vented gauge model. Operating pressure and maximum pressure ratings are similar in magnitude and compatible per listed parameters.

Q4: How is regulatory compliance maintained when substituting?
A4: Both parts are RoHS compliant, with identical MSL, ECCN, and HTSUS, maintaining regulatory and export conformity.

Q5: What is the significance of product status for engineering selection?
A5: The DP2-80 is obsolete; substitute selection relies on available, active products within the same compliance and parameter profile for assured long-term usage.
