DLP2000FQC Digital Micromirror Device Equivalent & Substitute Parts

Part Overview

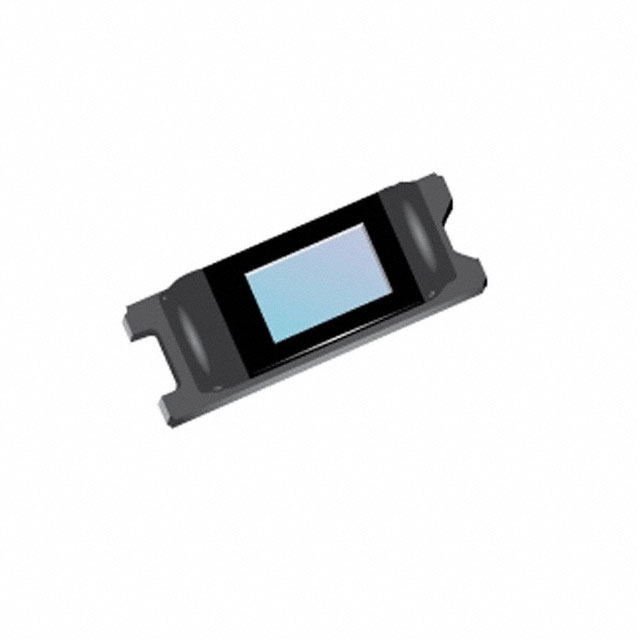

The DLP2000FQC is a Digital Micromirror Device (DMD) manufactured by Texas Instruments in a 42-CLGA package (14.12x4.97mm). This component is classified as obsolete, indicating that direct procurement of this exact part number may face supply constraints. The DLP2000FQC serves as a core imaging and light modulation component in applications requiring digital micromirror technology. Identifying equivalent and substitute parts ensures design continuity and supply chain reliability for systems currently utilizing this device.

Substiute Parts

DLP2000FQC

Texas InstrumentsIn Stock: 1027DLP2000FQC Datasheet

Current PartRFQ

DLP3010AFQK

Texas InstrumentsIn Stock: 2373DLP3010AFQK Datasheet

DirectRFQ

DLP2000AFQC

Texas InstrumentsIn Stock: 1150DLP2000AFQC Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the DLP2000FQC is determined by the following critical parameters:

Primary Substitution Criteria:

• Manufacturer: Texas Instruments (DMD technology continuity)
• Type: Digital Micromirror Device (DMD)
• Mounting Type: Surface Mount
• Compliance: ROHS3 Compliant, REACH Unaffected, EAR99 classification

Package Compatibility Considerations:

• The DLP2000FQC uses a 42-CLGA package (14.12x4.97mm)
• Substitute parts may utilize different package geometries depending on application requirements
• Physical dimensions and pin configurations must align with PCB layout constraints

The substitute parts listed maintain Texas Instruments DMD technology and surface mount compatibility. Substitutes are grouped into two categories: direct manufacturer-recommended alternatives and functionally equivalent devices with different package specifications.

Parameter Comparison

Engineering Selection Recommendations

DLP2000AFQC (Manufacturer-Recommended Substitute): This part is the primary recommended substitute for the obsolete DLP2000FQC. Both devices share identical package specifications (42-CLGA, 14.12x4.97mm) and mounting type (Surface Mount). The DLP2000AFQC maintains active product status with Texas Instruments, ensuring long-term availability and supply chain stability. Compliance certifications (ROHS3, REACH Unaffected, EAR99) are equivalent. This substitute requires no PCB layout modifications and provides direct functional replacement.

DLP3010AFQK (Alternative Substitute): The DLP3010AFQK is an active Texas Instruments DMD device with a larger 57-CLGA package (18.2x7mm). This substitute is suitable for applications where PCB space permits the larger package footprint. The DLP3010AFQK maintains identical compliance standards and mounting methodology. Selection of this alternative requires PCB redesign to accommodate the increased package dimensions.

Both substitutes are active products with established supply availability, ensuring procurement reliability compared to the obsolete DLP2000FQC.

Frequently Asked Questions (FAQ)

Q: Can DLP2000AFQC directly replace DLP2000FQC without PCB modifications? A: Yes. Both parts use identical 42-CLGA packages (14.12x4.97mm) and surface mount mounting type. No PCB layout changes are required.

Q: What is the primary difference between DLP2000AFQC and DLP3010AFQK? A: The DLP2000AFQC maintains the same 42-CLGA package as the original DLP2000FQC. The DLP3010AFQK uses a larger 57-CLGA package (18.2x7mm). Package selection depends on available PCB space and application requirements.

Q: Are all three parts ROHS3 compliant? A: Yes. DLP2000FQC, DLP2000AFQC, and DLP3010AFQK are all ROHS3 compliant and REACH unaffected.

Q: Why is DLP2000FQC classified as obsolete? A: Obsolete status indicates that Texas Instruments has discontinued active production and support for this specific part number. DLP2000AFQC is the active replacement.

Q: What are the compliance and export classifications for these parts? A: All three parts are classified as EAR99 under export control and use HTSUS code 8542.39.0001. All maintain REACH unaffected status.

Q: Can DLP3010AFQK be used in applications originally designed for DLP2000FQC? A: Functional compatibility exists, but the larger package footprint (18.2x7mm versus 14.12x4.97mm) requires PCB redesign. Consult application-specific requirements before selection.
