DIN-096CSC-W-HM Equivalent & Substitute Parts

Part Overview

The DIN-096CSC-W-HM is a 96-position DIN 41612 backplane connector receptacle with female sockets, gold contact finish, and through-hole solder termination. This 3M component is classified as obsolete, making equivalent substitute parts necessary for ongoing system maintenance and new design implementations. The connector features a 0.100" (2.54mm) pitch across three rows in Style C configuration, rated for 3A continuous current and operating temperatures from -55°C to 125°C.

Key Parameters

Parameter	Value
Manufacturer Part Number	DIN-096CSC-W-HM
Manufacturer	3M
Series	DIN 41612
Connector Type	Receptacle, Female Sockets
Number of Positions	96
Pitch	0.100" (2.54mm)
Number of Rows	3
Style	C
Mounting Type	Through Hole
Termination	Solder
Contact Finish	Gold
Operating Temperature	-55°C to 125°C
Current Rating	3A
Material Flammability	UL94 V-0
Product Status	Obsolete
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the DIN-096CSC-W-HM is determined by strict alignment with the following core parameters:

Critical Matching Parameters:

Connector type: Receptacle, Female Sockets
Number of positions: 96
Pitch: 0.100" (2.54mm)
Number of rows: 3
Style: C
Mounting type: Through Hole
Operating temperature range: -55°C to 125°C
Material flammability: UL94 V-0

Acceptable Variations:

Contact finish: Gold or Gold-Palladium finishes are functionally equivalent for this application
Termination method: Solder, Kinked Pin with Solder, and Press-Fit terminations are acceptable alternatives
Current rating: Substitutes rated at 2A meet the functional requirements where the original 3A rating is not a design constraint
Insulation material: PBT, PA, or PCT glass-filled polymers are acceptable alternatives
Compliance status: Active products with ROHS3 compliance are preferred over obsolete parts

Substitute parts are grouped by manufacturer and product status to facilitate direct replacement decisions.

Parameter Comparison

Parameter	DIN-096CSC-W-HM (3M)	09032962855 (HARTING)	09032966824222 (HARTING)	09032966841 (HARTING)	09032966845222 (HARTING)	09032967855 (HARTING)	09034962824 (HARTING)	1-1393640-0 (TE)	1-1393642-6 (TE)	1-148059-5 (TE)	148059-5 (TE)
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets
Number of Positions	96	96	96	96	96	96	96	96	96	96	96
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	3	3	3	3	3	3	3	3	3	3	3
Style	C	C	C	C	C	C	C	C	C	C	C
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Kinked Pin, Solder	Solder	Solder	Kinked Pin, Solder	Kinked Pin, Solder	Solder	Solder	Wire Wrap	Press-Fit	Press-Fit
Contact Finish	Gold	Gold or Gold-Palladium	Gold-Palladium	Gold-Palladium	Gold-Palladium	Gold-Palladium	Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold	Gold
Operating Temperature	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C	-55°C to 125°C
Current Rating	3A	2A	2A	2A	2A	2A	2A	Not specified	Not specified	Not specified	Not specified
Material Flammability	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Product Status	Obsolete	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
RoHS Status	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS non-compliant

Engineering Selection Recommendations

Primary Substitutes (HARTING DIN 41612 Series):

The HARTING 09032962855, 09032966824222, 09032966841, 09032966845222, 09032967855, and 09034962824 are active products with ROHS3 compliance. These connectors maintain full mechanical and electrical compatibility with the DIN-096CSC-W-HM across all critical parameters. Selection among HARTING variants depends on specific termination and insulation material requirements:

09032962855: Kinked pin solder termination with PBT insulation
09032966824222: Solder termination with PA insulation, Level/Class 2
09032966841: Solder termination with PCT insulation, Level/Class 2
09032966845222: Kinked pin solder termination, Level/Class 2
09032967855: Kinked pin solder termination with PBT insulation, Level/Class 3
09034962824: Solder termination with mounting clips, Level/Class 1

Secondary Substitutes (TE Connectivity Eurocard Series):

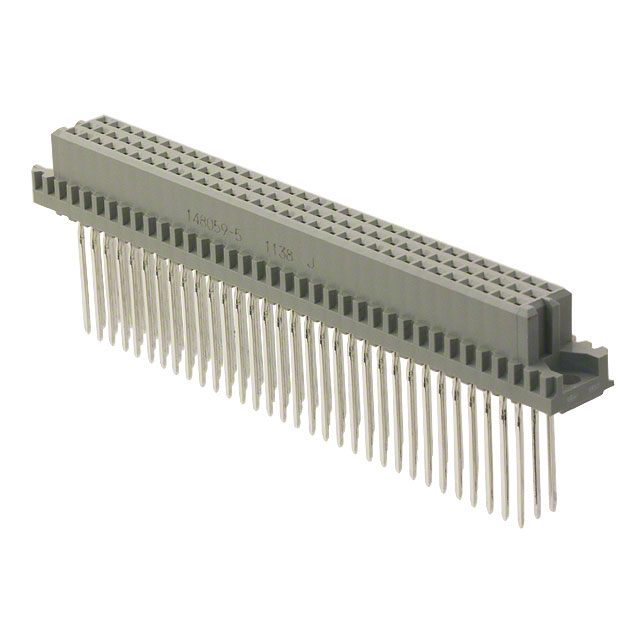

The TE Connectivity 1-1393640-0, 1-1393642-6, 1-148059-5, and 148059-5 are active products offering alternative termination methods. The 1-1393640-0 and 1-1393642-6 provide solder and wire wrap termination options respectively. The 1-148059-5 and 148059-5 employ press-fit termination technology. Note that 148059-5 carries RoHS non-compliant status and should be avoided in new designs requiring regulatory compliance.

Compliance Considerations:

All recommended substitutes except 148059-5 meet current RoHS requirements. For applications requiring ROHS3 compliance, HARTING variants and TE Connectivity 1-1393640-0, 1-1393642-6, and 1-148059-5 are appropriate selections.

Frequently Asked Questions (FAQ)

Q: Can I substitute the DIN-096CSC-W-HM with any of the listed alternatives?

A: All listed substitutes maintain the critical mechanical and electrical parameters: 96 positions, 0.100" pitch, 3-row configuration, Style C, through-hole mounting, and -55°C to 125°C operating range. Substitution is valid provided your application does not require the original 3A current rating as a hard constraint, as most alternatives are rated at 2A.

Q: What is the difference between solder, kinked pin solder, and press-fit termination?

A: Solder termination requires manual soldering to the PCB. Kinked pin solder termination provides mechanical retention during assembly before soldering. Press-fit termination uses spring-loaded contacts that compress into plated PCB holes without soldering. Selection depends on your assembly process and PCB design capabilities.

Q: Are Gold and Gold-Palladium contact finishes interchangeable?

A: Yes. Both finishes provide equivalent electrical performance and corrosion resistance for this connector class. Gold-Palladium finishes offer enhanced durability in high-cycle mating applications.

Q: Why do some substitutes show different insulation materials?

A: PBT, PA, and PCT are all glass-filled thermoplastic polymers meeting UL94 V-0 flammability requirements. Material selection affects mechanical properties and environmental resistance but does not impact electrical compatibility for this application.

Q: Should I avoid the 148059-5 part number?

A: The 148059-5 is RoHS non-compliant. Use this part only in legacy systems where RoHS compliance is not required. For new designs, select from the compliant alternatives listed.

Q: What does Level/Class designation mean?

A: Level/Class refers to contact retention and mating cycle durability specifications within the DIN 41612 standard. Class 1 provides basic retention, Class 2 provides enhanced retention, and Class 3 provides maximum retention. All classes are mechanically compatible with the original part.

Q: Can I use a substitute with different termination than the original solder termination?

A: Yes, provided your PCB design and assembly process support the alternative termination method. Kinked pin solder and press-fit terminations are direct mechanical alternatives to standard solder termination.
