DIN-048CSC-S3L-HM Equivalent & Substitute Parts

Part Overview

The DIN-048CSC-S3L-HM is a 48-position DIN 41612 backplane connector receptacle manufactured by 3M. This female socket connector features gold-plated contacts, through-hole solder termination, and is rated for -55°C to 125°C operation with a 3A current capacity. The part is RoHS compliant and actively produced. Equivalent and substitute parts are identified to support procurement flexibility, inventory management, and design continuity across compatible DIN 41612 connector families.

Key Parameters

Parameter	Value
Connector Type	Receptacle, Female Sockets
Number of Positions	48
Pitch	0.100" (2.54mm)
Number of Rows	3
Style	C/2 (1/2 C)
Mounting Type	Through Hole
Termination	Solder
Contact Finish	Gold
Operating Temperature Range	-55°C to 125°C
Material Flammability Rating	UL94 V-0
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution of the DIN-048CSC-S3L-HM is determined by strict alignment of the following parameters:

Connector Type: Receptacle, Female Sockets (required match)
Number of Positions: 48 (required match)
Pitch: 0.100" (2.54mm) (required match)
Number of Rows: 3 (required match)
Mounting Type: Through Hole (required match)
Termination: Solder (required match)
Operating Temperature Range: -55°C to 125°C (required match or better)
Material Flammability Rating: UL94 V-0 (required match)
Moisture Sensitivity Level: 1 (required match)

Substitute parts are grouped into two categories:

Category A - Direct Style Match (C/2 Configuration): Parts with identical C/2 (1/2 C) style designation from TE Connectivity AMP Connectors (Eurocard series) and 3M. These provide the highest mechanical and electrical compatibility.

Category B - Compatible Style Variant (2C Configuration): The HARTING 09232486824 features a 2C style designation, which represents a different mechanical configuration within the DIN 41612 standard. While maintaining the same 48-position, 3-row, 2.54mm pitch geometry, the 2C style may have different keying or mounting characteristics and requires design verification for mechanical fit.

Category C - Header Configuration (Not Recommended for Direct Substitution): The HARTING 09281326902 is a header (male pins) connector, not a receptacle. This part is listed for reference only and is not suitable as a direct substitute for receptacle applications.

Parameter Comparison

Manufacturer Part Number	Manufacturer	Connector Type	Positions	Style	Contact Finish	Operating Temp (°C)	Current Rating (A)	RoHS Status	Inventory (Pcs)
DIN-048CSC-S3L-HM	3M	Receptacle, Female Sockets	48	C/2 (1/2 C)	Gold	-55 to 125	3	RoHS Compliant	3172
09232486824	HARTING	Receptacle, Female Sockets	48	2C	Not specified	Not specified	Not specified	ROHS3 Compliant	2662
09281326902	HARTING	Header, Male Pins	48 (32 loaded)	2R	Gold-Palladium	-55 to 125	2	ROHS3 Compliant	1193

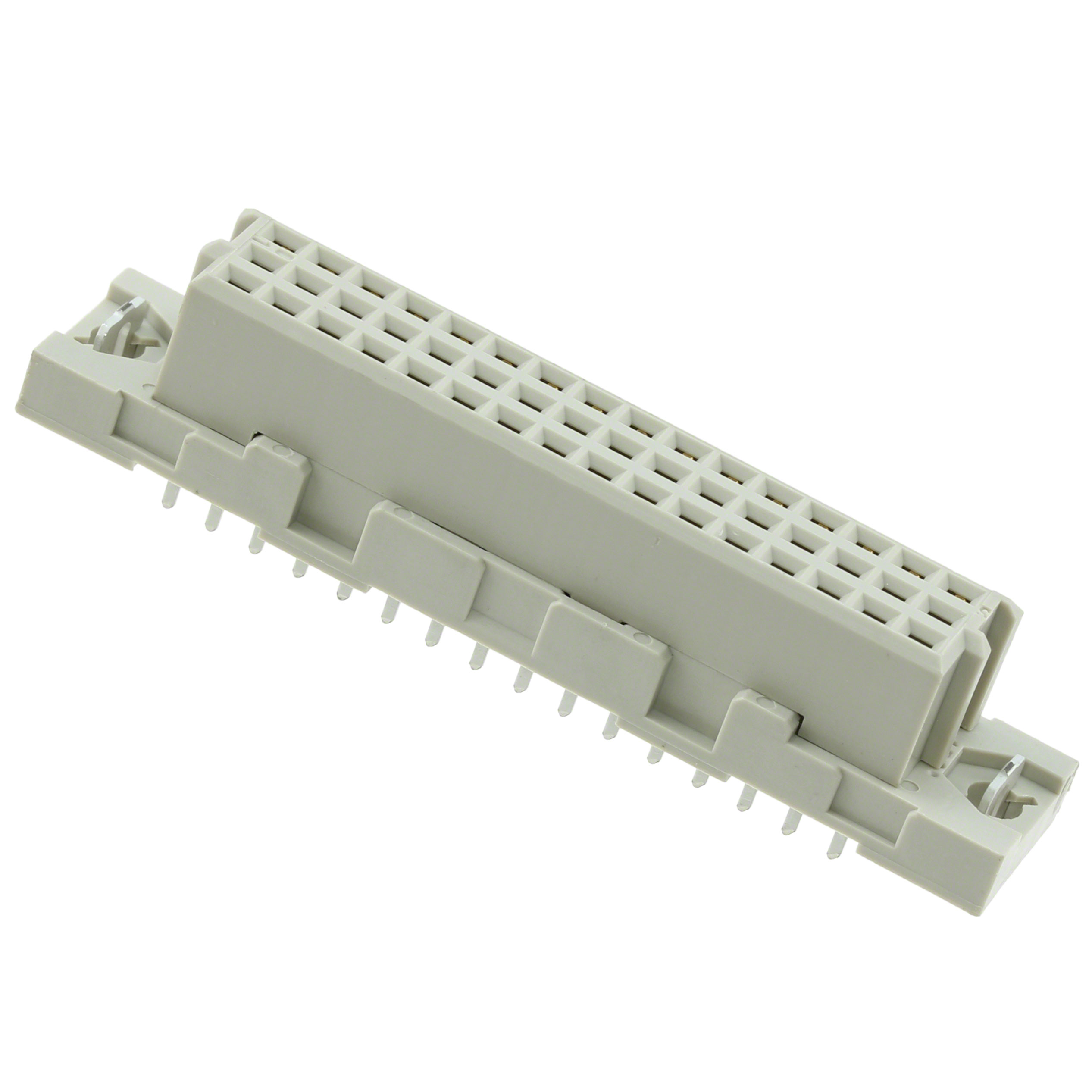

2-1393641-5	TE Connectivity AMP Connectors	Receptacle, Female Sockets	48	C/2 (1/2 C)	Gold or Gold-Palladium	-55 to 125	Not specified	ROHS3 Compliant	1199
535070-4	TE Connectivity AMP Connectors	Receptacle, Female Sockets	48	C/2 (1/2 C)	Gold	-55 to 125	Not specified	Not applicable	1379
535070-5	TE Connectivity AMP Connectors	Receptacle, Female Sockets	48	C/2 (1/2 C)	Gold	-55 to 125	Not specified	RoHS non-compliant	834
535071-4	TE Connectivity AMP Connectors	Receptacle, Female Sockets	48	C/2 (1/2 C)	Gold	-55 to 125	Not specified	RoHS non-compliant	2780

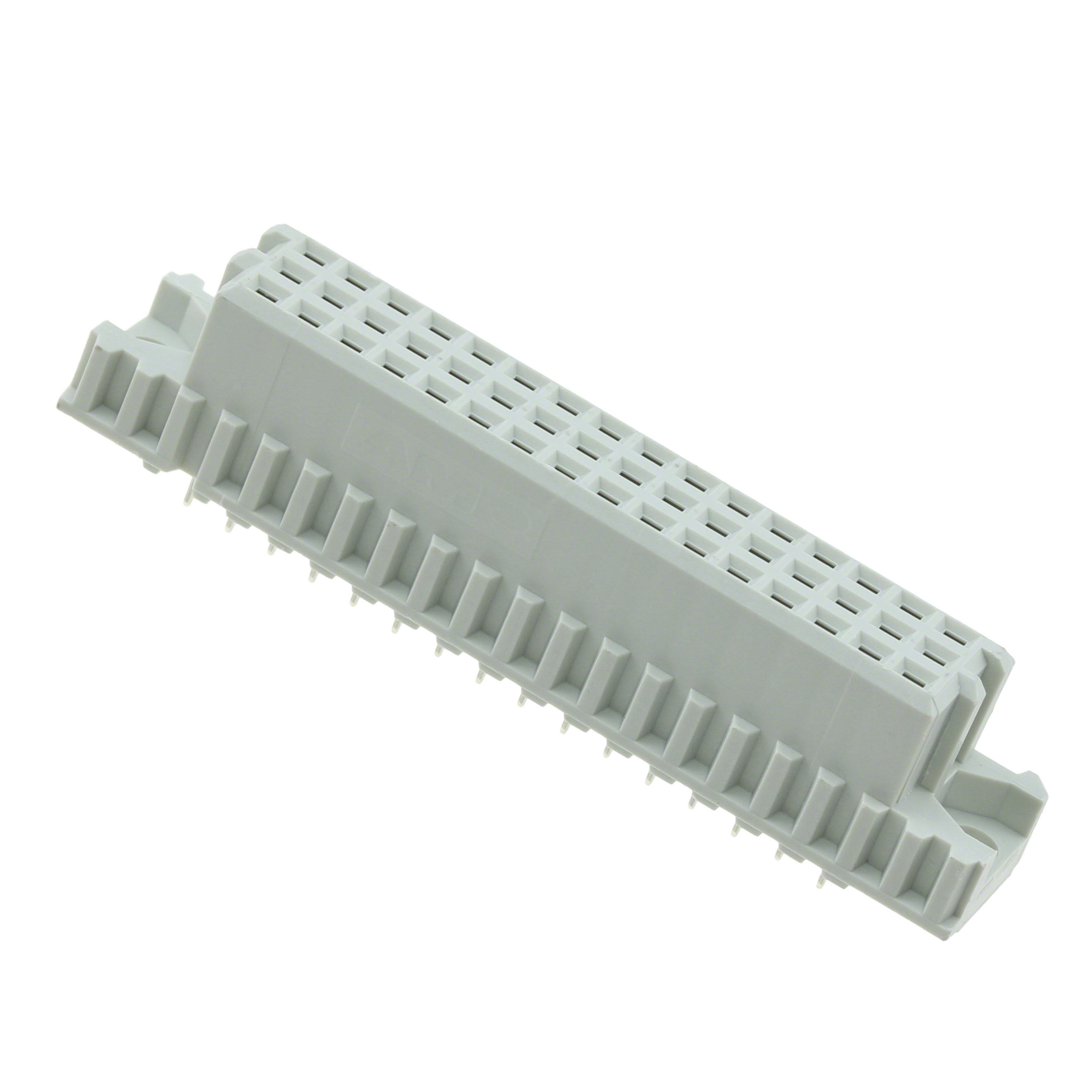

535091-5	TE Connectivity AMP Connectors	Receptacle, Female Sockets	48	C/2 (1/2 C)	Gold	-55 to 125	Not specified	RoHS non-compliant	738
5535070-4	TE Connectivity AMP Connectors	Receptacle, Female Sockets	48	C/2 (1/2 C)	Gold	-55 to 125	Not specified	RoHS Compliant	1306
5535070-5	TE Connectivity AMP Connectors	Receptacle, Female Sockets	48	C/2 (1/2 C)	Gold	-55 to 125	Not specified	RoHS Compliant	3590

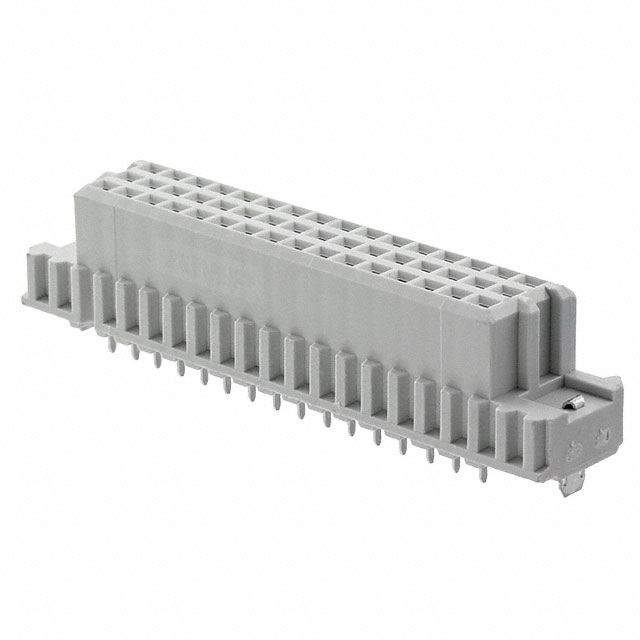

5536397-5	TE Connectivity AMP Connectors	Receptacle, Female Sockets	48	C/2 (1/2 C)	Not specified	Not specified	1.5	ROHS3 Compliant	2653

Engineering Selection Recommendations

Primary Substitutes (Recommended)

For new designs and procurement requiring RoHS compliance and active product status, select from:

5535070-5 (TE Connectivity): RoHS Compliant, Eurocard series, 3590 units in stock. Highest inventory availability.
5535070-4 (TE Connectivity): RoHS Compliant, Eurocard series, 1306 units in stock.
2-1393641-5 (TE Connectivity): ROHS3 Compliant, Eurocard series, 1199 units in stock.

These parts maintain C/2 style compatibility, gold contact finish, -55°C to 125°C operating range, and current RoHS compliance status.

Secondary Substitutes (Legacy/Non-Compliant)

For applications where RoHS compliance is not required or legacy inventory must be cleared:

535070-4, 535071-4, 535091-5 (TE Connectivity): All feature C/2 style, gold contacts, and -55°C to 125°C operation. RoHS status is not applicable or non-compliant. Use only in non-regulated applications.

Conditional Substitutes (Requires Design Verification)

09232486824 (HARTING): 2C style variant. Mechanical fit and keying compatibility must be verified before use. ROHS3 Compliant, 2662 units in stock.

Not Recommended for Direct Substitution

09281326902 (HARTING): Header (male pins) configuration. Intended for mating with receptacle connectors, not as a receptacle replacement.

Frequently Asked Questions (FAQ)

Q: Can I substitute the DIN-048CSC-S3L-HM with any 48-position DIN connector?

A: No. Substitution requires exact matching of connector type (receptacle vs. header), style designation (C/2 vs. 2C), pitch (2.54mm), row count (3), and mounting method (through-hole solder). Only parts meeting all these criteria are electrically and mechanically compatible.

Q: What is the difference between C/2 and 2C style designations?

A: Both are DIN 41612 standard configurations with 48 positions in 3 rows at 2.54mm pitch. The style designation indicates different mechanical keying and orientation characteristics. C/2 (1/2 C) and 2C are not interchangeable without design verification of mechanical fit and connector orientation.

Q: Are the TE Connectivity Eurocard series parts (535070, 535071, 535091, 5535070, 5536397) fully interchangeable?

A: All listed TE Connectivity parts share the same C/2 style, 48-position, 3-row, 2.54mm pitch configuration and are mechanically compatible. However, RoHS compliance status varies. For new designs, use ROHS3 Compliant variants (5535070-4, 5535070-5, 2-1393641-5, 5536397-5). Legacy parts (535070-4, 535070-5, 535071-4, 535091-5) are available for existing applications but are not RoHS compliant.

Q: Why is the HARTING 09281326902 listed if it is not a direct substitute?

A: This header connector is listed for reference in applications where a mating pair (receptacle + header) is required. It is not suitable as a replacement for the receptacle DIN-048CSC-S3L-HM.

Q: What is the current rating difference between the main part (3A) and substitute 5536397-5 (1.5A)?

A: The DIN-048CSC-S3L-HM is rated for 3A per contact, while 5536397-5 is rated for 1.5A. The 5536397-5 includes a Board Lock feature for mechanical retention. Use 5536397-5 only in applications where the 1.5A current rating is sufficient and board-level locking is required.

Q: Are all substitute parts available in bulk packaging?

A: Yes. All listed substitute parts are supplied in bulk packaging with current inventory levels ranging from 738 to 3590 units.

Q: What compliance certifications should I verify before selecting a substitute?

A: Verify RoHS status (RoHS Compliant, ROHS3 Compliant, or non-compliant), REACH status, and product status (Active). For regulated applications, use only ROHS3 Compliant or RoHS Compliant variants. The DIN-048CSC-S3L-HM is RoHS Compliant and REACH Unaffected.
