DGD0590FU-7 Equivalent & Substitute Parts

Part Overview

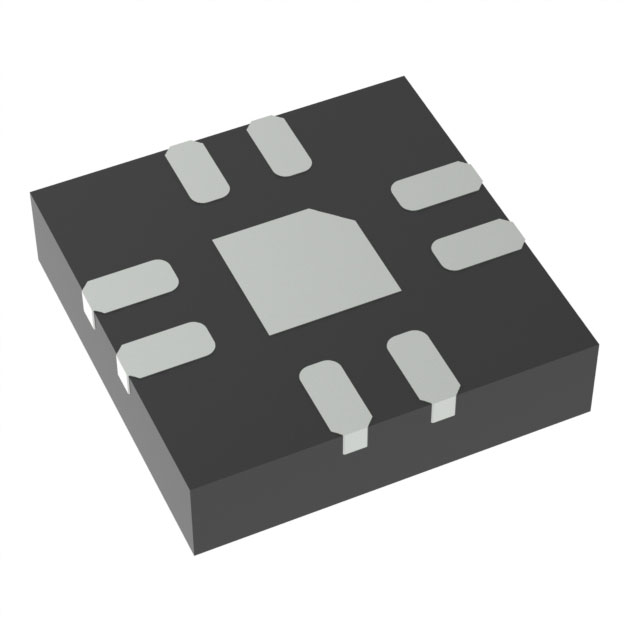

The DGD0590FU-7 is a half-bridge gate driver IC manufactured by Diodes Incorporated, designed for driving N-channel MOSFETs in half-bridge configurations. This device operates with a supply voltage range of 4.5V to 5.5V and delivers peak output currents of 1A (source) and 3A (sink). The part is currently classified as obsolete, making identification of active equivalent parts essential for ongoing design support and procurement continuity.

Substiute Parts

DGD0590FU-7

Diodes IncorporatedIn Stock: 1031DGD0590FU-7 Datasheet

Current PartRFQ

DGD0590AFU-7

Diodes IncorporatedIn Stock: 10577DGD0590AFU-7 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The DGD0590AFU-7 qualifies as a direct substitute for the DGD0590FU-7 based on the following critical parameters:

Electrical Compatibility:

• Identical driven configuration (half-bridge)
• Identical number of drivers (2)
• Identical gate type (N-channel MOSFET)
• Identical supply voltage range (4.5V ~ 5.5V)
• Identical peak output currents (1A source, 3A sink)
• Identical input type (non-inverting)
• Identical bootstrap voltage rating (50V maximum)
• Identical rise/fall times (27ns, 29ns typical)

Mechanical Compatibility:

• Identical package type (8-VQFN Exposed Pad)
• Identical supplier device package (V-QFN3030-8 Type TH)

Regulatory Compliance:

• Identical RoHS3 compliance status
• Identical REACH status (unaffected)
• Identical ECCN and HTSUS classifications

The primary distinction is product status: DGD0590AFU-7 is active with high inventory availability, whereas DGD0590FU-7 is obsolete. The DGD0590AFU-7 is supplied in Tape & Reel packaging with MSL 3 (168 hours) versus the original part's MSL 1 (unlimited).

Parameter Comparison

Engineering Selection Recommendations

The DGD0590AFU-7 is the direct active equivalent for the obsolete DGD0590FU-7. Selection of the substitute part is based on:

Product Status: The DGD0590AFU-7 maintains active production status with substantial inventory availability (10,518 pcs), ensuring long-term supply chain reliability compared to the obsolete original part.

Regulatory Compliance: Both parts maintain identical ROHS3 compliance and REACH unaffected status, satisfying equivalent environmental and regulatory requirements.

Electrical and Mechanical Specifications: All functional parameters, electrical ratings, and package specifications are identical, enabling direct pin-for-pin and functional replacement without circuit modification.

Packaging Consideration: The substitute part is supplied in standard Tape & Reel format, which is the industry standard for automated assembly processes. The MSL 3 rating (168 hours) requires standard moisture control during storage and handling, consistent with modern manufacturing practices.

Frequently Asked Questions (FAQ)

Q: Can DGD0590AFU-7 be used as a direct replacement for DGD0590FU-7?

A: Yes. The DGD0590AFU-7 is electrically and mechanically identical to the DGD0590FU-7. All electrical parameters, pin configurations, and functional specifications match exactly. No circuit modifications are required.

Q: What is the difference between these two part numbers?

A: The primary differences are product status and packaging format. DGD0590FU-7 is obsolete; DGD0590AFU-7 is active production. DGD0590AFU-7 is supplied in Tape & Reel packaging with MSL 3 (168 hours) moisture sensitivity, while DGD0590FU-7 was supplied in bulk with MSL 1 (unlimited).

Q: Are there any compatibility concerns with the MSL 3 rating?

A: No. MSL 3 (168 hours) is standard for modern surface-mount components. This rating indicates the component can be exposed to 85°C / 85% relative humidity for up to 168 hours before soldering. Standard moisture control procedures during storage and handling ensure full compatibility.

Q: Is the Tape & Reel packaging compatible with my assembly process?

A: Yes. Tape & Reel is the standard packaging format for automated pick-and-place assembly equipment. If manual assembly is required, the component can be removed from the tape for individual handling.

Q: Do both parts have identical electrical performance?

A: Yes. Rise/fall times, output current ratings, supply voltage range, bootstrap voltage rating, and all other electrical specifications are identical between DGD0590FU-7 and DGD0590AFU-7.

Q: What is the operating temperature range for the substitute part?

A: The DGD0590AFU-7 operates across -40°C to 150°C junction temperature, identical to the original part.
