DF9BA-41P-1V(69) Equivalent & Substitute Parts

Part Overview

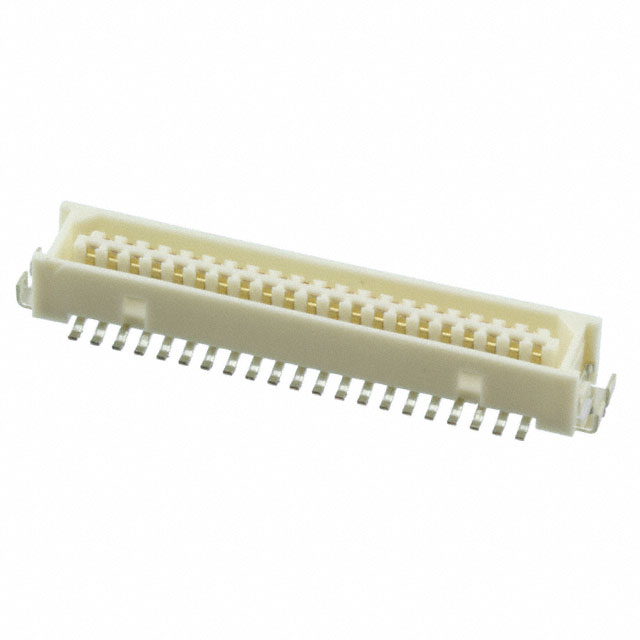

The DF9BA-41P-1V(69) is a 41-position connector header manufactured by Hirose Electric Co Ltd, designed for surface mount applications with center strip contacts and gold plating. This component is classified as obsolete, making identification of suitable substitute parts essential for ongoing production and maintenance applications. The DF9 series provides reliable interconnection solutions for applications requiring dual-row header configurations with 1.00mm pitch spacing.

Substiute Parts

DF9BA-41P-1V(69)

Hirose Electric Co LtdIn Stock: 997DF9BA-41P-1V(69) Datasheet

Current PartRFQ

DF9B-41P-1V(69)

Hirose Electric Co LtdIn Stock: 859DF9B-41P-1V(69) Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the DF9BA-41P-1V(69) is determined by the following critical parameters:

• Number of Positions: Must be 41
• Pitch: Must be 0.039" (1.00mm)
• Number of Rows: Must be 2
• Mounting Type: Must be Surface Mount
• Contact Finish: Must be Gold
• Connector Type: Must be Header, Center Strip Contacts
• Series: DF9 family compatibility

The primary substitute part DF9B-41P-1V(69) maintains all critical electrical and mechanical parameters while offering active product status and improved availability. This part represents a direct functional equivalent with identical pin configuration, pitch spacing, and contact specifications.

Parameter Comparison

Engineering Selection Recommendations

The DF9B-41P-1V(69) is the primary substitute for the obsolete DF9BA-41P-1V(69). This substitution is supported by:

• Identical electrical specifications and pin configuration
• Matching mechanical dimensions and mounting requirements
• Active product status with confirmed inventory availability
• RoHS compliance certification for the substitute part
• Equivalent moisture sensitivity rating
• Minimal variation in mated stacking height (0.2mm difference)

The transition from DF9BA to DF9B represents a product line evolution within the DF9 series, maintaining full compatibility for applications requiring 41-position surface mount headers with 1.00mm pitch and gold-plated contacts.

Frequently Asked Questions (FAQ)

Q: Can DF9B-41P-1V(69) be used as a direct replacement for DF9BA-41P-1V(69)?

A: Yes. Both parts share identical pin counts, pitch spacing, row configuration, and contact specifications. The primary difference is product status and RoHS compliance of the substitute.

Q: What is the significance of the mated stacking height difference between the two parts?

A: The DF9BA-41P-1V(69) has a 4.5mm mated stacking height while the DF9B-41P-1V(69) has 4.3mm. This 0.2mm variation is within typical mechanical tolerances for connector applications and does not affect functional compatibility in standard PCB assembly processes.

Q: Does the RoHS compliance of DF9B-41P-1V(69) affect compatibility?

A: RoHS compliance is an environmental and regulatory attribute that does not impact electrical or mechanical compatibility. The substitute part meets or exceeds the specifications of the original part.

Q: Are there packaging differences between these parts?

A: The DF9BA-41P-1V(69) packaging is not specified in available data. The DF9B-41P-1V(69) is supplied in Tape & Reel (TR) format, which is standard for surface mount components and facilitates automated assembly processes.

Q: What is the Moisture Sensitivity Level (MSL) rating?

A: Both parts carry an MSL rating of 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.
