DF80-40P-0.5SD(52) Equivalent & Substitute Parts

Part Overview

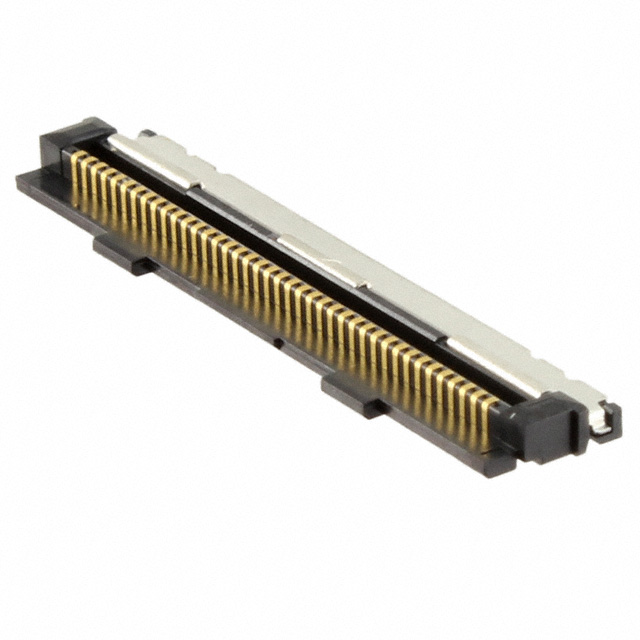

The DF80-40P-0.5SD(52) is a 40-position rectangular plug connector manufactured by Hirose Electric Co Ltd, designed for solder termination with gold-plated contacts. This connector features a 0.50mm pitch, outer shroud contact design, and latch lock fastening suitable for discrete or ribbon cable applications with wire gauges of 32-36 AWG and 40-46 AWG.

The DF80-40P-0.5SD(52) is classified as obsolete. Identifying equivalent substitute parts is necessary to maintain design continuity and ensure component availability for new production runs, repairs, and system upgrades.

Substiute Parts

DF80-40P-0.5SD(52)

Hirose Electric Co LtdIn Stock: 1130DF80-40P-0.5SD(52) Datasheet

Current PartRFQ

DF80D-40P-0.5SD(52)

Hirose Electric Co LtdIn Stock: 1143DF80D-40P-0.5SD(52) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the DF80-40P-0.5SD(52) is determined by strict equivalence across the following critical parameters:

• Connector type (Plug)
• Number of positions (40)
• Pitch specification (0.50mm)
• Contact type (Outer Shroud Contact)
• Cable termination method (Solder)
• Wire gauge compatibility (32-36 AWG, 40-46 AWG)
• Contact finish (Gold)
• Fastening mechanism (Latch Lock)
• Features (Closed End)
• Color (Black)

The substitute part DF80D-40P-0.5SD(52) meets all these criteria and is therefore classified as a direct equivalent. The primary distinction is product status: the substitute is active and available, whereas the original part is obsolete.

Parameter Comparison

Engineering Selection Recommendations

The DF80D-40P-0.5SD(52) is the direct substitute for the obsolete DF80-40P-0.5SD(52). Both parts are manufactured by Hirose Electric Co Ltd and maintain identical electrical and mechanical specifications across all critical parameters.

Selection of the DF80D-40P-0.5SD(52) is supported by:

• Active product status ensuring ongoing availability and supply chain reliability
• RoHS compliance certification, meeting current environmental and regulatory standards
• Identical connector specifications, pitch, contact configuration, and termination method
• Equivalent moisture sensitivity rating and environmental performance
• Availability in Tape & Reel packaging for automated assembly processes

Frequently Asked Questions (FAQ)

Q: Can the DF80D-40P-0.5SD(52) be used as a direct replacement for the DF80-40P-0.5SD(52)?

A: Yes. Both parts share identical specifications for connector type, position count, pitch, contact type, termination method, wire gauge compatibility, contact finish, fastening mechanism, and features. The substitute is electrically and mechanically equivalent.

Q: What is the primary difference between these two parts?

A: The DF80-40P-0.5SD(52) is obsolete, while the DF80D-40P-0.5SD(52) is active and currently manufactured. The substitute also includes RoHS compliance certification and is available in Tape & Reel packaging.

Q: Are there any mounting type differences?

A: The original part specifies both Free Hanging (In-Line) and Right Angle mounting options. The substitute specifies Free Hanging (In-Line) mounting. Verify mounting requirements for your specific application.

Q: What packaging options are available for the substitute part?

A: The DF80D-40P-0.5SD(52) is supplied in Tape & Reel (TR) packaging, suitable for automated assembly and high-volume production environments.

Q: Does the substitute part meet RoHS requirements?

A: Yes. The DF80D-40P-0.5SD(52) is RoHS compliant, meeting current environmental and regulatory standards for electronic component manufacturing and use.
