DF6-6P-3.96C Equivalent & Substitute Parts
Part Overview
The DF6-6P-3.96C is a 6-position rectangular connector housing manufactured by Hirose Electric Co Ltd with a 0.156" (3.96mm) pitch. This board-in connector features male pins with crimp termination and is designed for board-mount applications. The product is currently obsolete, making equivalent and substitute parts necessary for ongoing system maintenance, repairs, and legacy design support. Substitute connectors from the active DF63 series provide functional compatibility while offering current manufacturing availability and updated compliance certifications.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer Part Number | DF6-6P-3.96C |
| Manufacturer | Hirose Electric Co Ltd |
| Category | Rectangular Connectors |
| Series | DF6 |
| Number of Positions | 6 |
| Pitch | 0.156" (3.96mm) |
| Connector Type | Board-In |
| Contact Type | Male Pin |
| Number of Rows | 1 |
| Mounting Type | Board Mount |
| Contact Termination | Crimp |
| Color | White |
| Product Status | Obsolete |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Substitute Part Grouping Explanation
Substitution for the DF6-6P-3.96C is determined by the following critical parameters that must remain consistent:
- Number of Positions: 6 positions required
- Pitch: 0.156" (3.96mm) spacing maintained
- Number of Rows: Single row configuration
- Contact Termination: Crimp termination capability
- Electrical Ratings: Voltage and current compatibility

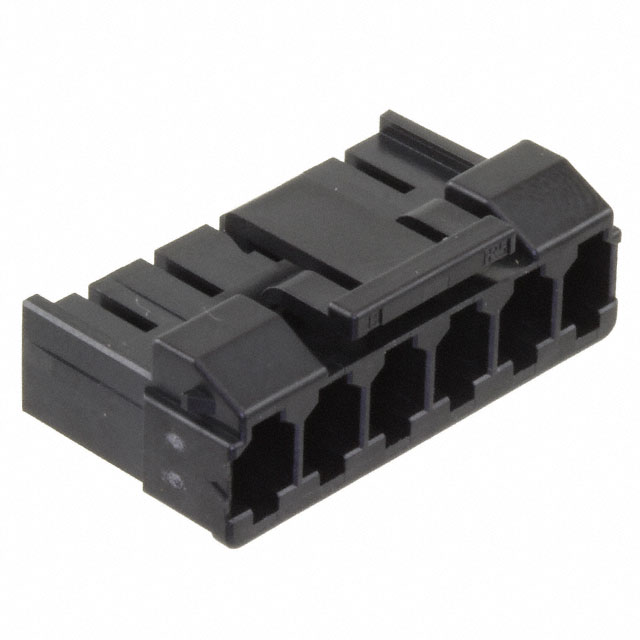

The DF63 series substitutes meet these core requirements while transitioning from the obsolete DF6 series. The DF63-6P-3.96DSA provides a header connector alternative with through-hole mounting and solder termination. The DF63-6S-3.96C provides a socket housing option with crimp termination, designed for mating with compatible pin connectors.
Parameter Comparison
| Parameter | DF6-6P-3.96C (Main Part) | DF63-6P-3.96DSA (Substitute) | DF63-6S-3.96C (Substitute) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Number of Positions | 6 | 6 | 6 |
| Pitch | 0.156" (3.96mm) | 0.156" (3.96mm) | 0.156" (3.96mm) |
| Number of Rows | 1 | 1 | 1 |
| Contact Type | Male Pin | Male Pin | Female Socket |
| Mounting Type | Board Mount | Through Hole | Free Hanging (In-Line) |
| Contact Termination | Crimp | Solder | Crimp |
| Product Status | Obsolete | Active | Active |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Operating Temperature | Not specified | -55°C ~ 105°C | -55°C ~ 105°C |
| Voltage Rating | Not specified | 600VAC/DC | Not specified |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) |
Engineering Selection Recommendations
DF63-6P-3.96DSA Selection: This substitute is appropriate for applications requiring a transition from board-in to through-hole mounting. The shift from crimp to solder termination requires PCB redesign and assembly process modification. This part is active in production with ROHS3 compliance and provides extended operating temperature range (-55°C ~ 105°C) and defined voltage rating (600VAC/DC).
DF63-6S-3.96C Selection: This substitute maintains crimp termination compatibility with the original DF6-6P-3.96C, reducing assembly process changes. The socket housing (female contact) is designed for mating with compatible pin connectors. This part is active in production with ROHS3 compliance and equivalent operating temperature range.
Both substitutes are manufactured by Hirose Electric Co Ltd, maintaining supply chain consistency and design heritage. Selection between the two depends on existing assembly infrastructure and mating connector requirements in the target application.
Frequently Asked Questions (FAQ)
Q: Can DF63-6P-3.96DSA directly replace DF6-6P-3.96C?
A: Direct replacement requires PCB modification. The DF63-6P-3.96DSA uses through-hole mounting and solder termination, whereas the DF6-6P-3.96C uses board-in mounting with crimp termination. The 0.156" (3.96mm) pitch and 6-position configuration are identical, but mounting footprint and assembly process differ.
Q: What is the difference between DF63-6P-3.96DSA and DF63-6S-3.96C?
A: DF63-6P-3.96DSA is a header connector with male pins and solder termination for through-hole mounting. DF63-6S-3.96C is a socket housing with female contacts and crimp termination for free-hanging in-line applications. The socket housing is typically mated with a compatible pin connector.
Q: Are all three connectors RoHS compliant?
A: Yes. The DF6-6P-3.96C is RoHS Compliant. Both DF63 substitutes are ROHS3 Compliant, which represents an updated compliance standard.
Q: What is the moisture sensitivity level for these connectors?
A: All three connectors have Moisture Sensitivity Level (MSL) 1, indicating unlimited shelf life without moisture control requirements.
Q: Do the substitute parts include contacts?
A: No. The DF6-6P-3.96C and DF63-6S-3.96C housings are supplied without contacts. Contacts must be sourced separately and crimped into the housing. The DF63-6P-3.96DSA header connector includes integrated male pins.
Q: What operating temperature range applies to these connectors?
A: The DF6-6P-3.96C does not specify an operating temperature range. Both DF63 substitutes operate across -55°C ~ 105°C.
