DF62W-6EP-2.2C Equivalent & Substitute Parts

Part Overview

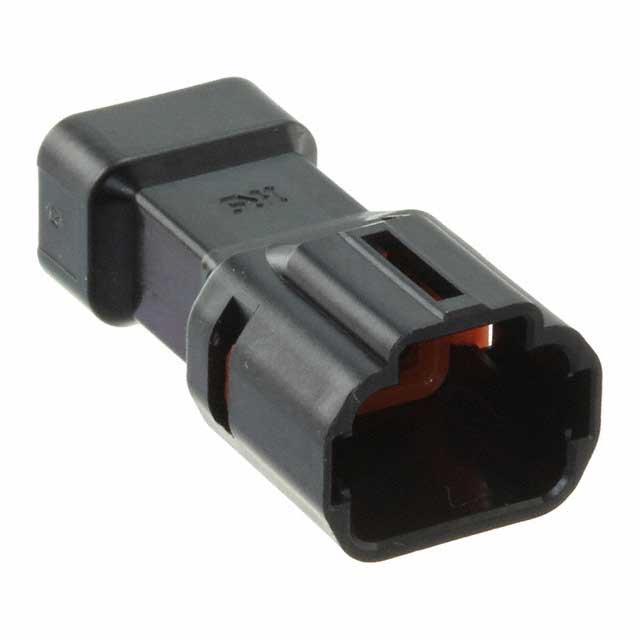

The DF62W-6EP-2.2C is a 6-position rectangular connector housing manufactured by Hirose Electric Co., Ltd. This plug-type connector features a 2.20mm pitch configuration with male pin contacts and is designed for free-hanging, in-line applications. The connector is water resistant and constructed from polybutylene terephthalate (PBT) insulation material, suitable for operating environments ranging from -35°C to 105°C. As an active product with ROHS3 compliance and unlimited moisture sensitivity rating, this connector remains in production. Substitute parts may be required due to packaging availability, inventory constraints, or specific application requirements while maintaining identical electrical and mechanical specifications.

Substiute Parts

DF62W-6EP-2.2C

Hirose Electric Co., Ltd.In Stock: 830DF62W-6EP-2.2C Datasheet

Current PartRFQ

DF62WC-6EP-2.2C

Hirose Electric Co LtdIn Stock: 869DF62WC-6EP-2.2C Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the DF62W-6EP-2.2C is based on strict equivalence of electrical and mechanical parameters. The substitute part DF62WC-6EP-2.2C maintains identical specifications across all critical dimensions and functional characteristics:

Key Parameters Determining Substitutability:

• Number of positions: 6
• Pitch configuration: 0.087" (2.20mm)
• Row spacing: 0.079" (2.00mm)
• Contact type: Male pin
• Connector type: Plug
• Mounting type: Free hanging (in-line)
• Contact termination: Crimp
• Fastening type: Latch holder
• Insulation material: Polybutylene terephthalate (PBT)
• Operating temperature range: -35°C to 105°C
• Water resistant feature
• Color: Black

The substitute part differs only in packaging format (bulk versus bag) and base product number designation, with no impact on connector form, fit, or function.

Parameter Comparison

Engineering Selection Recommendations

Both the DF62W-6EP-2.2C and DF62WC-6EP-2.2C are active products with identical ROHS3 compliance and REACH unaffected status. Selection between these parts should be based on packaging requirements and inventory availability. The main part is supplied in bulk packaging, while the substitute is supplied in bag packaging. Both parts maintain full compliance with applicable regulatory standards and certifications. No technical performance differentiation exists between these two part numbers.

Frequently Asked Questions (FAQ)

Q: Are DF62W-6EP-2.2C and DF62WC-6EP-2.2C electrically identical?

A: Yes. Both connectors feature identical electrical specifications including 6 positions, 2.20mm pitch, male pin contacts, and crimp termination. They are functionally equivalent for all circuit applications.

Q: What is the difference between these two part numbers?

A: The primary difference is packaging format. DF62W-6EP-2.2C is supplied in bulk packaging, while DF62WC-6EP-2.2C is supplied in bag packaging. All mechanical and electrical characteristics are identical.

Q: Can DF62WC-6EP-2.2C be used as a direct replacement for DF62W-6EP-2.2C?

A: Yes. The substitute part maintains identical form, fit, and function. No design modifications or compatibility adjustments are required.

Q: Are both parts ROHS3 compliant?

A: Yes. Both DF62W-6EP-2.2C and DF62WC-6EP-2.2C are ROHS3 compliant and REACH unaffected.

Q: What is the operating temperature range for these connectors?

A: Both parts operate across -35°C to 105°C, suitable for industrial and commercial applications.

Q: Do these connectors include contacts?

A: No. Both the main part and substitute are connector housings only. Contacts must be sourced separately and crimped into the housing.
