DF62-7S-2.2C Equivalent & Substitute Parts

Part Overview

The DF62-7S-2.2C is a 7-position rectangular connector housing manufactured by Hirose Electric Co., Ltd., designed for socket applications with a 2.20mm pitch. This connector belongs to the DF62 series and features a female socket contact type with crimp termination and latch lock fastening. The part is currently classified as obsolete, making equivalent and substitute parts necessary for ongoing system support and new designs requiring compatible interconnect solutions.

Key Parameters

Parameter	Value
Manufacturer Part Number	DF62-7S-2.2C
Manufacturer	Hirose Electric Co., Ltd.
Series	DF62
Connector Type	Socket
Contact Type	Female Socket
Number of Positions	7
Pitch	0.087" (2.20mm)
Number of Rows	3
Row Spacing	0.079" (2.00mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Operating Temperature Range	-35°C to 105°C
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution for the DF62-7S-2.2C is determined by strict equivalence across the following critical parameters:

Connector Type & Contact Configuration: Socket housing with female socket contacts
Position Count & Pitch: 7 positions at 0.087" (2.20mm) pitch
Physical Layout: 3 rows with 0.079" (2.00mm) row spacing
Termination & Fastening: Crimp contact termination with latch lock fastening
Material & Temperature Rating: PBT insulation rated -35°C to 105°C
Moisture Sensitivity: MSL 1 (Unlimited)

All substitute parts maintain identical electrical and mechanical specifications. Variations exist only in product status (active vs. obsolete), color options (white or black), and regulatory compliance certifications (RoHS and REACH status).

Parameter Comparison

Parameter	DF62-7S-2.2C	DF62B-7S-2.2C	DF62B-7S-2.2C(11)	DF62C-7S-2.2C	DF62C-7S-2.2C(11)
Connector Type	Socket	Socket	Socket	Socket	Socket
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket
Number of Positions	7	7	7	7	7
Pitch	0.087" (2.20mm)	0.087" (2.20mm)	0.087" (2.20mm)	0.087" (2.20mm)	0.087" (2.20mm)
Number of Rows	3	3	3	3	3
Row Spacing	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp	Crimp	Crimp
Fastening Type	Latch Lock	Latch Lock	Latch Lock	Latch Lock	Latch Lock
Color	White	White	Black	White	Black
Insulation Material	PBT	PBT	PBT	PBT	PBT
Operating Temperature	-35°C to 105°C	-35°C to 105°C	-35°C to 105°C	-35°C to 105°C	-35°C to 105°C
MSL	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Product Status	Obsolete	Active	Active	Active	Active
RoHS Status	Not specified	RoHS Compliant	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant
REACH Status	Not specified	Not specified	Not specified	REACH Unaffected	REACH Unaffected

Engineering Selection Recommendations

Primary Substitutes (Active Status with Current Compliance)

DF62C-7S-2.2C and DF62C-7S-2.2C(11) are the recommended substitutes. Both parts carry active product status and meet ROHS3 compliance with REACH Unaffected designation, ensuring alignment with current regulatory requirements. The DF62C series represents the latest generation within the DF62 family.

Secondary Substitutes (Active Status with RoHS Compliance)

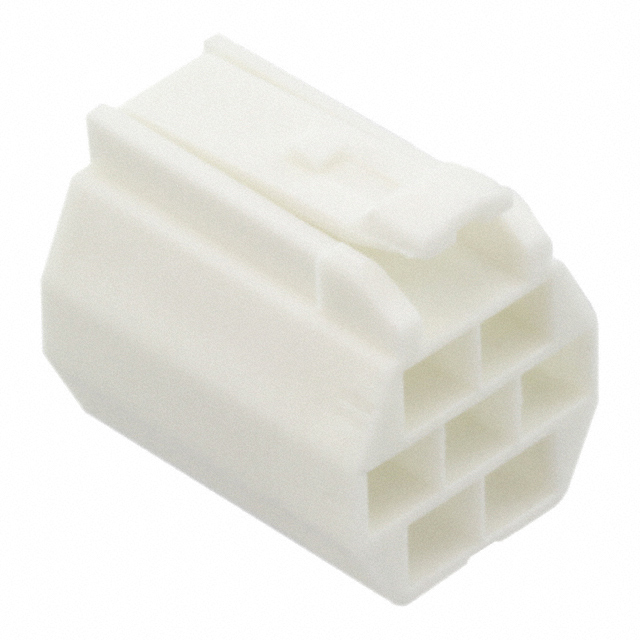

DF62B-7S-2.2C and DF62B-7S-2.2C(11) are active alternatives with RoHS Compliant certification. These parts provide functional equivalence and current availability but do not carry REACH Unaffected status.

Color Selection

Standard color variants (white housing) are DF62B-7S-2.2C and DF62C-7S-2.2C. Black housing variants are designated with the (11) suffix: DF62B-7S-2.2C(11) and DF62C-7S-2.2C(11). Color selection is determined by application requirements and does not affect electrical or mechanical compatibility.

Frequently Asked Questions (FAQ)

Q: Can DF62B-7S-2.2C directly replace DF62-7S-2.2C?

A: Yes. Both parts share identical electrical and mechanical specifications: 7-position socket housing, 2.20mm pitch, 3-row configuration, crimp termination, and latch lock fastening. The DF62B variant is active and RoHS Compliant, making it a direct functional equivalent.

Q: What is the difference between DF62B and DF62C series substitutes?

A: Both series maintain identical connector specifications. The DF62C series carries ROHS3 Compliant and REACH Unaffected certifications, representing the current generation. The DF62B series carries RoHS Compliant status. Selection depends on regulatory compliance requirements for your application.

Q: Does the (11) suffix affect compatibility?

A: No. The (11) suffix indicates black housing color only. All electrical and mechanical parameters remain identical to non-suffixed variants. Compatibility is determined by connector type, position count, pitch, and termination method, not housing color.

Q: Are contacts included with these connector housings?

A: No. All DF62 series socket housings are supplied without contacts. Contacts must be sourced separately and crimped into the housing according to Hirose specifications.

Q: What is the significance of MSL 1 (Unlimited)?

A: MSL 1 indicates the component has unlimited shelf life and requires no special moisture control during storage or handling. This classification applies to all listed substitute parts.

Q: Can I mix white and black housing variants in the same assembly?

A: Yes, from a functional standpoint. All variants maintain identical electrical and mechanical specifications. Assembly decisions regarding color consistency are determined by design and aesthetic requirements, not compatibility.
