DF62-5S-2.2C Equivalent & Substitute Parts

Part Overview

The DF62-5S-2.2C is a 5-position rectangular connector housing manufactured by Hirose Electric Co Ltd, designed for socket applications with a 2.20mm pitch. This component is classified as obsolete, which necessitates identification of active equivalent parts to maintain design continuity and ensure supply chain availability. The connector features a female socket contact type with crimp termination and latch lock fastening, suitable for free hanging in-line mounting applications.

Substiute Parts

DF62-5S-2.2C

Hirose Electric Co LtdIn Stock: 1098DF62-5S-2.2C Datasheet

Current PartRFQ

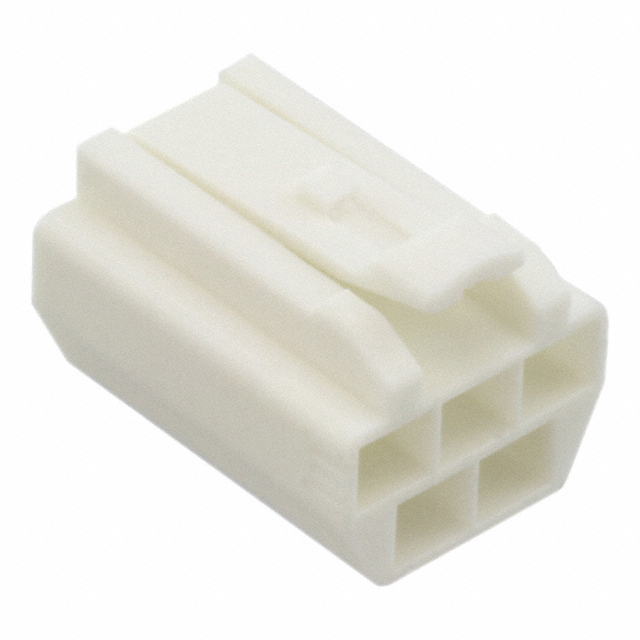

DF62B-5S-2.2C

Hirose Electric Co LtdIn Stock: 2719DF62B-5S-2.2C Datasheet

DirectRFQ

DF62C-5S-2.2C

Hirose Electric Co LtdIn Stock: 1325DF62C-5S-2.2C Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the DF62-5S-2.2C is determined by strict equivalence across the following critical parameters:

• Number of Positions: 5
• Pitch: 0.087" (2.20mm)
• Number of Rows: 2
• Row Spacing: 0.079" (2.00mm)
• Connector Type: Socket
• Contact Type: Female Socket
• Contact Termination: Crimp
• Fastening Type: Latch Lock
• Mounting Type: Free Hanging (In-Line)
• Insulation Material: Polybutylene Terephthalate (PBT)
• Color: White
• Operating Temperature Range: -35°C ~ 105°C

Both identified substitute parts, DF62B-5S-2.2C and DF62C-5S-2.2C, maintain complete parameter equivalence with the main part across all specified electrical and mechanical characteristics. The primary distinction between these substitutes and the obsolete main part is their active product status and enhanced compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

Both DF62B-5S-2.2C and DF62C-5S-2.2C are direct functional equivalents to the obsolete DF62-5S-2.2C. Selection between these two active alternatives should be based on the following factors:

DF62B-5S-2.2C is available in bulk packaging with 2698 units in stock and carries ROHS3 compliance and REACH unaffected status.

DF62C-5S-2.2C is the manufacturer-recommended substitute, available in bulk packaging with 1232 units in stock, and carries identical ROHS3 compliance and REACH unaffected status.

Both parts satisfy equivalent electrical and mechanical requirements for direct substitution. The choice between them depends on inventory availability and procurement lead time requirements.

Frequently Asked Questions (FAQ)

Q: Can DF62B-5S-2.2C and DF62C-5S-2.2C be used interchangeably with DF62-5S-2.2C?

A: Yes. Both substitute parts maintain complete electrical and mechanical equivalence across all specified parameters, including pitch, number of positions, row spacing, contact type, termination method, and operating temperature range.

Q: What is the primary reason for substitution?

A: The DF62-5S-2.2C is classified as obsolete. DF62B-5S-2.2C and DF62C-5S-2.2C are active products that provide continued supply availability while maintaining full functional compatibility.

Q: Are there packaging differences between the main part and substitutes?

A: The main part DF62-5S-2.2C does not specify packaging information. Both substitute parts are supplied in bulk packaging.

Q: Do the substitute parts meet current compliance standards?

A: Yes. Both DF62B-5S-2.2C and DF62C-5S-2.2C are ROHS3 compliant and REACH unaffected, meeting current regulatory requirements.

Q: Which substitute part is recommended by the manufacturer?

A: DF62C-5S-2.2C is designated as the manufacturer-recommended substitute.

Q: Are contacts included with these connector housings?

A: No. All three parts (main and substitutes) are supplied as housings only. Contacts must be sourced separately.
