DF62-3EP-2.2C Equivalent & Substitute Parts

Part Overview

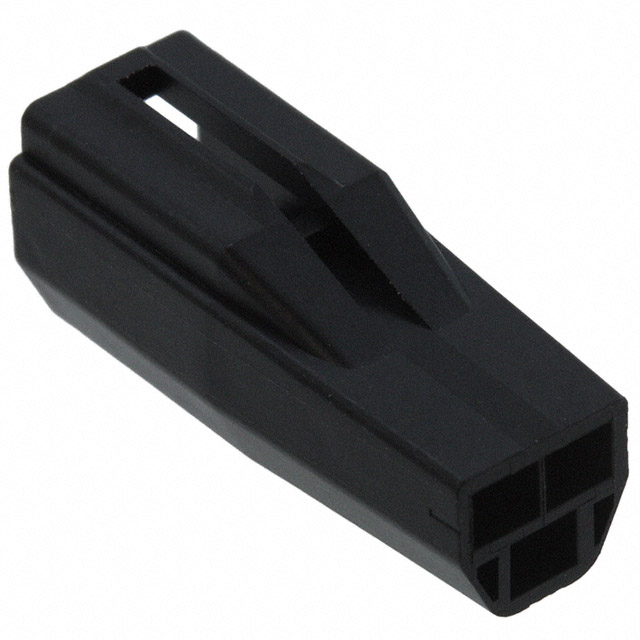

The DF62-3EP-2.2C is a 3-position rectangular connector housing manufactured by Hirose Electric Co Ltd. This plug housing is designed for crimp contact termination with a 2.20mm pitch and operates across a temperature range of -35°C to 105°C. The part is classified as obsolete, making identification of active equivalent models essential for ongoing procurement and system maintenance.

Substiute Parts

DF62-3EP-2.2C

Hirose Electric Co LtdIn Stock: 1099DF62-3EP-2.2C Datasheet

Current PartRFQ

DF62B-3EP-2.2C

Hirose Electric Co LtdIn Stock: 3613DF62B-3EP-2.2C Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the DF62-3EP-2.2C is determined by strict equivalence across the following critical parameters:

• Connector type (Plug housing)
• Contact type (Male pin)
• Number of positions (3)
• Pitch specification (0.087" / 2.20mm)
• Row configuration (2 rows with 0.079" / 2.00mm spacing)
• Mounting type (Free hanging, in-line)
• Contact termination method (Crimp)
• Fastening mechanism (Latch holder)
• Insulation material (PBT)
• Operating temperature range (-35°C ~ 105°C)

The DF62B-3EP-2.2C meets all these criteria and represents the active production equivalent within the DF62 series.

Parameter Comparison

Engineering Selection Recommendations

The DF62B-3EP-2.2C is the direct equivalent for the obsolete DF62-3EP-2.2C. Both parts maintain identical electrical and mechanical specifications across all critical parameters. The DF62B variant is currently in active production status with significantly higher inventory availability (3556 pcs vs. 1007 pcs).

The DF62B-3EP-2.2C carries ROHS3 compliance and REACH unaffected status, providing enhanced regulatory alignment for new designs and ongoing procurement. Both parts share identical ECCN and HTSUS classifications.

Frequently Asked Questions (FAQ)

Q: Can DF62B-3EP-2.2C directly replace DF62-3EP-2.2C in existing assemblies?

A: Yes. The DF62B-3EP-2.2C maintains identical specifications for connector type, position count, pitch, row spacing, mounting configuration, contact termination, fastening mechanism, insulation material, and operating temperature range. Direct mechanical and electrical compatibility is established.

Q: What is the primary difference between these two part numbers?

A: The DF62-3EP-2.2C is obsolete, while DF62B-3EP-2.2C is in active production. The DF62B variant includes ROHS3 compliance and REACH unaffected status documentation. All functional parameters remain identical.

Q: Are there packaging differences between these parts?

A: The DF62-3EP-2.2C packaging is not specified in available data. The DF62B-3EP-2.2C is supplied in bulk packaging. Confirm packaging requirements with your procurement specification.

Q: Do these connector housings include contacts?

A: No. Both the DF62-3EP-2.2C and DF62B-3EP-2.2C are housing-only components. Crimp contacts must be sourced separately and are not included with these parts.

Q: What is the moisture sensitivity level for these parts?

A: Both parts carry MSL 1 (Unlimited), indicating no moisture sensitivity restrictions during storage or handling.
