DF62-13S-2.2C Equivalent & Substitute Parts

Part Overview

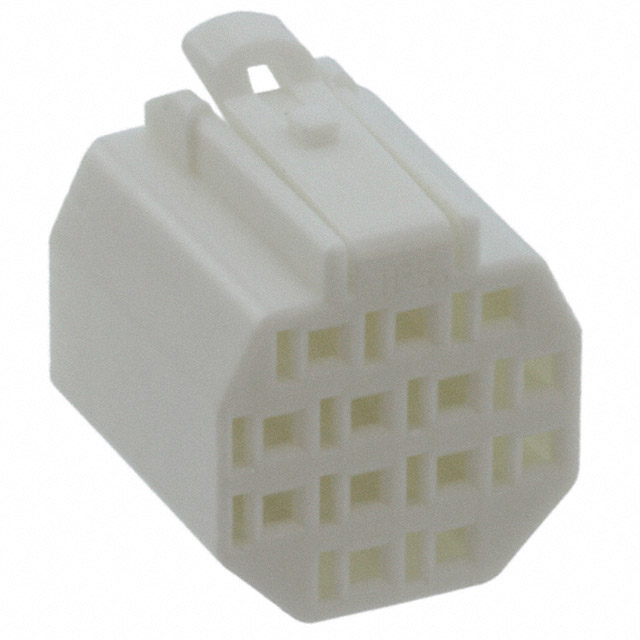

The DF62-13S-2.2C is a 13-position rectangular connector housing manufactured by Hirose Electric Co Ltd, designed for socket applications with a 2.20mm pitch. This part is classified as obsolete, which necessitates identification of active equivalent alternatives that maintain electrical and mechanical compatibility. Substitute parts must preserve the core connector specifications: 13 positions, 2.20mm pitch, 4-row configuration, female socket contact type, and crimp termination.

Key Parameters

Parameter	Value
Manufacturer Part Number	DF62-13S-2.2C
Manufacturer	Hirose Electric Co Ltd
Category	Rectangular Connectors
Series	DF62
Number of Positions	13
Pitch	0.087" (2.20mm)
Number of Rows	4
Row Spacing	0.079" (2.00mm)
Connector Type	Socket
Contact Type	Female Socket
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	White
Insulation Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-35°C ~ 105°C
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution of the DF62-13S-2.2C is determined by strict equivalence across the following critical parameters:

Number of Positions: 13
Pitch: 0.087" (2.20mm)
Number of Rows: 4
Row Spacing: 0.079" (2.00mm)
Connector Type: Socket
Contact Type: Female Socket
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Fastening Type: Latch Lock
Insulation Material: Polybutylene Terephthalate (PBT)
Operating Temperature Range: -35°C ~ 105°C

All identified substitute parts maintain these core electrical and mechanical parameters. Variations in color (White vs. Black) and base product designation (DF62B, DF62C) do not affect functional compatibility. All substitute parts are active products with current manufacturing status and RoHS3 compliance.

Parameter Comparison

Parameter	DF62-13S-2.2C	DF62B-13S-2.2C	DF62B-13S-2.2C(11)	DF62C-13S-2.2C	DF62C-13S-2.2C(11)
Number of Positions	13	13	13	13	13
Pitch	0.087" (2.20mm)	0.087" (2.20mm)	0.087" (2.20mm)	0.087" (2.20mm)	0.087" (2.20mm)
Number of Rows	4	4	4	4	4
Row Spacing	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Connector Type	Socket	Socket	Socket	Socket	Socket
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp	Crimp	Crimp
Fastening Type	Latch Lock	Latch Lock	Latch Lock	Latch Lock	Latch Lock
Color	White	White	Black	White	Black
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Operating Temperature	-35°C ~ 105°C	-35°C ~ 105°C	-35°C ~ 105°C	-35°C ~ 105°C	-35°C ~ 105°C
Product Status	Obsolete	Active	Active	Active	Active
RoHS Status	Not specified	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
REACH Status	Not specified	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected

Engineering Selection Recommendations

All four substitute parts are functionally equivalent to the DF62-13S-2.2C and maintain full electrical and mechanical compatibility. Selection among substitutes should be based on the following criteria:

Product Status: All substitute parts carry Active product status, ensuring continued manufacturing availability and supply chain reliability compared to the obsolete DF62-13S-2.2C.

Regulatory Compliance: All substitute parts are ROHS3 Compliant and REACH Unaffected, meeting current environmental and regulatory requirements for component procurement.

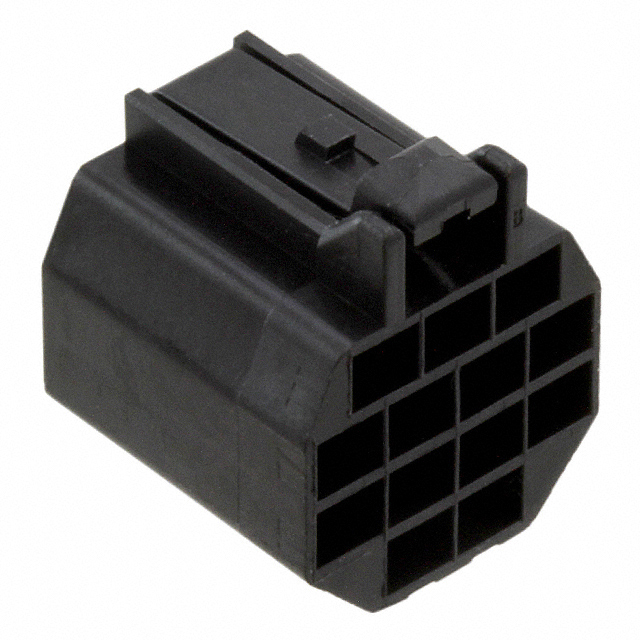

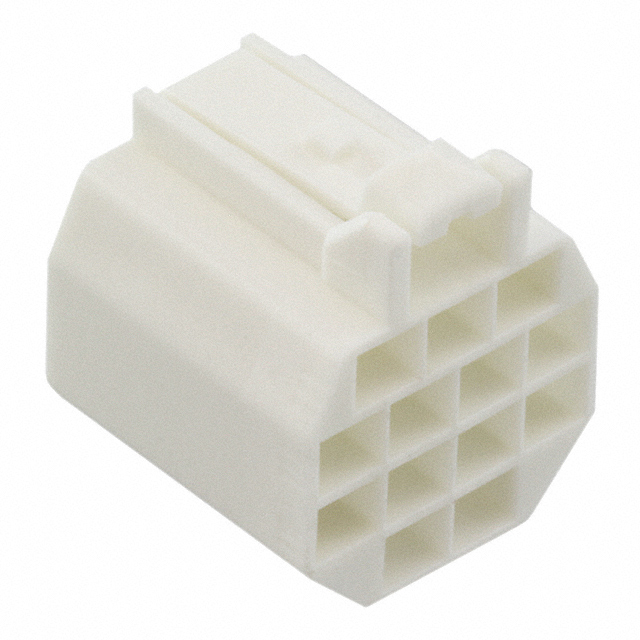

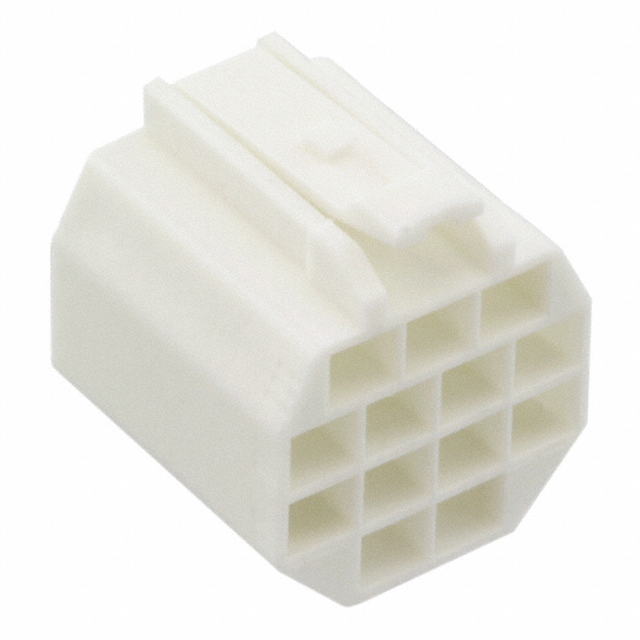

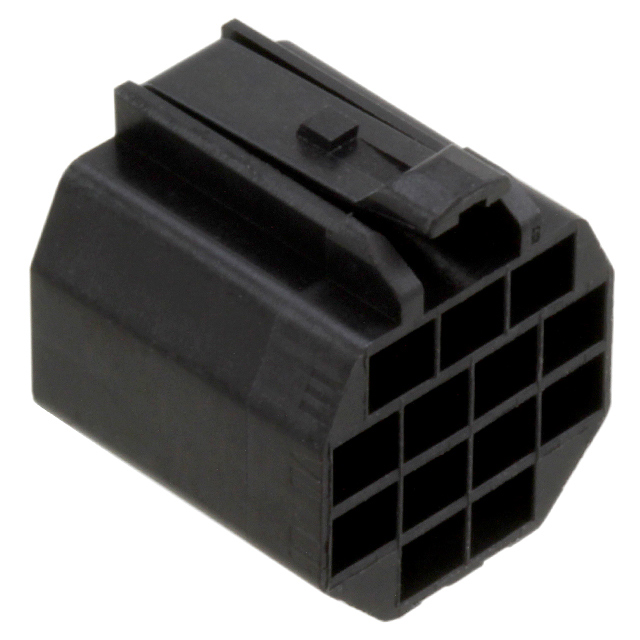

Color Selection: DF62B-13S-2.2C and DF62C-13S-2.2C are available in White to match the original part color. DF62B-13S-2.2C(11) and DF62C-13S-2.2C(11) are available in Black for applications where color differentiation is required.

Base Product Designation: DF62B and DF62C represent different product generations within the DF62 series. Both are functionally equivalent for the 13-position, 2.20mm pitch configuration.

Inventory Availability: DF62B-13S-2.2C offers the highest current inventory (7974 units), followed by DF62B-13S-2.2C(11) (5450 units), DF62C-13S-2.2C(11) (964 units), and DF62C-13S-2.2C (944 units).

Frequently Asked Questions (FAQ)

Q: Are all substitute parts electrically compatible with the DF62-13S-2.2C?

A: Yes. All substitute parts maintain identical electrical specifications: 13 positions, 2.20mm pitch, female socket contact type, crimp termination, and -35°C to 105°C operating temperature range. They are direct functional equivalents.

Q: Does the color difference between White and Black variants affect compatibility?

A: No. Color is a cosmetic parameter and does not affect electrical or mechanical compatibility. Selection between White and Black variants should be based on application requirements or design specifications.

Q: What is the difference between DF62B and DF62C base product designations?

A: Both DF62B and DF62C are active product lines within the DF62 series. For the 13-position, 2.20mm pitch socket housing configuration, both maintain identical electrical and mechanical parameters. Selection between them should be based on availability and supply chain considerations.

Q: Are the substitute parts RoHS compliant?

A: Yes. All substitute parts are ROHS3 Compliant and REACH Unaffected, meeting current environmental regulations for electronic component procurement.

Q: Can I use these substitute parts as direct replacements without design modifications?

A: Yes. All substitute parts are mechanically and electrically equivalent to the DF62-13S-2.2C. No design modifications are required for substitution.

Q: What is the significance of the "(11)" designation in part numbers?

A: The "(11)" designation indicates a Black color variant. Parts without this designation are White. All other specifications remain identical.
