DF62-13EP-2.2C Equivalent & Substitute Parts
Part Overview

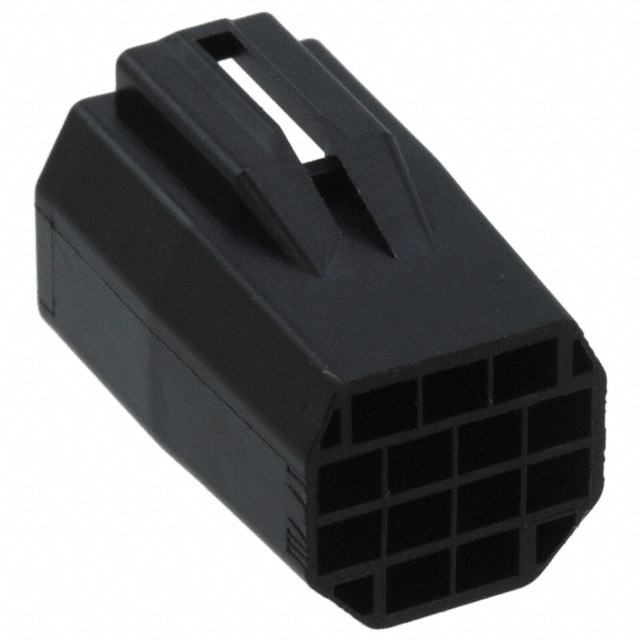

The DF62-13EP-2.2C is a 13-position rectangular connector housing manufactured by Hirose Electric Co Ltd, designed for plug applications with 2.20mm pitch and male pin contacts. This part is classified as obsolete, making identification of active equivalent components essential for ongoing production and maintenance applications. The connector features a 4-row configuration with 0.079" row spacing and crimp-type contact termination suitable for free-hanging inline mounting.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer Part Number | DF62-13EP-2.2C |
| Manufacturer | Hirose Electric Co Ltd |
| Series | DF62 |
| Connector Type | Plug |
| Number of Positions | 13 |
| Pitch | 0.087" (2.20mm) |
| Number of Rows | 4 |
| Row Spacing | 0.079" (2.00mm) |
| Contact Type | Male Pin |
| Contact Termination | Crimp |
| Mounting Type | Free Hanging (In-Line) |
| Fastening Type | Latch Holder |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Operating Temperature Range | -35°C ~ 105°C |
| Product Status | Obsolete |
Substitute Part Grouping Explanation
Substitution for the DF62-13EP-2.2C is determined by strict equivalence across the following critical parameters:
- Connector type (Plug)
- Number of positions (13)
- Pitch specification (0.087" / 2.20mm)
- Number of rows (4)
- Row spacing (0.079" / 2.00mm)
- Contact type (Male Pin)
- Contact termination method (Crimp)
- Mounting configuration (Free Hanging In-Line)
- Fastening mechanism (Latch Holder)
- Insulation material (PBT)
- Operating temperature range (-35°C ~ 105°C)
The DF62-13EP-2.2C has two direct substitutes within the DF62 series that maintain full electrical and mechanical compatibility. Both substitute parts are manufactured by Hirose Electric Co Ltd and carry active product status.
Parameter Comparison
| Parameter | DF62-13EP-2.2C | DF62B-13EP-2.2C | DF62B-13EP-2.2C(10) |
|---|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Series | DF62 | DF62 | DF62 |
| Connector Type | Plug | Plug | Plug |
| Number of Positions | 13 | 13 | 13 |
| Pitch | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) |
| Number of Rows | 4 | 4 | 4 |
| Row Spacing | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Contact Type | Male Pin | Male Pin | Male Pin |
| Contact Termination | Crimp | Crimp | Crimp |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fastening Type | Latch Holder | Latch Holder | Latch Holder |
| Insulation Material | PBT | PBT | PBT |
| Operating Temperature | -35°C ~ 105°C | -35°C ~ 105°C | -35°C ~ 105°C |
| Product Status | Obsolete | Active | Active |
| Color | Black | Black | White |
| RoHS Status | Not specified | ROHS3 Compliant | ROHS3 Compliant |
| REACH Status | Not specified | REACH Unaffected | REACH Unaffected |
Engineering Selection Recommendations
Both DF62B-13EP-2.2C and DF62B-13EP-2.2C(10) are direct functional equivalents to the obsolete DF62-13EP-2.2C. Selection between these two active alternatives is determined by color requirement and application context.

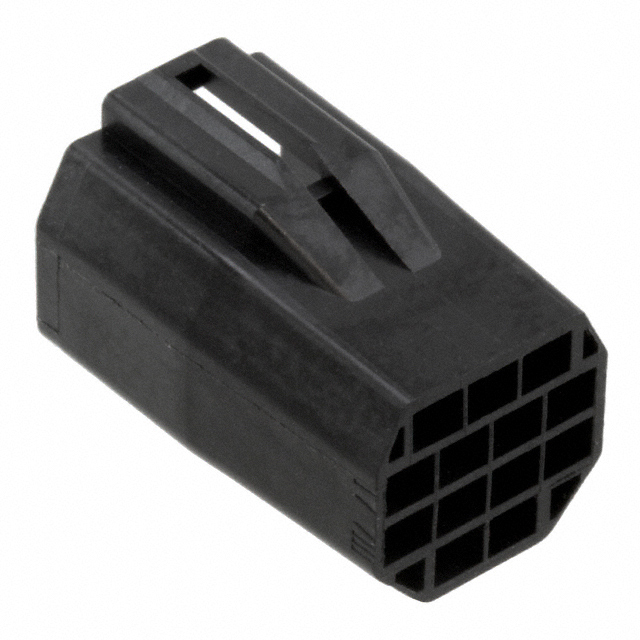

DF62B-13EP-2.2C maintains the original black housing color of the DF62-13EP-2.2C and carries ROHS3 compliance and REACH unaffected status. This part is the primary replacement for direct color matching in existing designs.

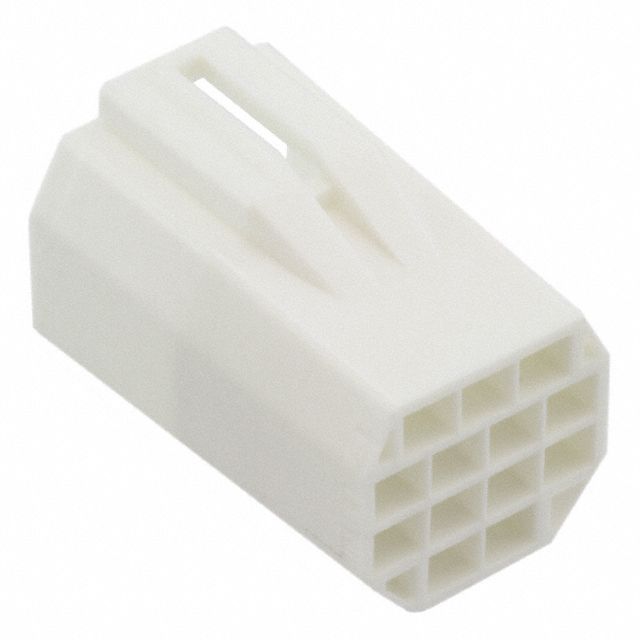

DF62B-13EP-2.2C(10) provides identical electrical and mechanical specifications with a white housing variant. This option is suitable for applications where color differentiation is required or where the white housing meets design requirements. This part also carries ROHS3 compliance and REACH unaffected status.
Both substitute parts are manufactured by Hirose Electric Co Ltd and maintain full compatibility with the original DF62-13EP-2.2C across all critical electrical and mechanical parameters.
Frequently Asked Questions (FAQ)
Q: Can DF62B-13EP-2.2C be used as a direct replacement for DF62-13EP-2.2C?
A: Yes. The DF62B-13EP-2.2C maintains identical electrical and mechanical specifications including connector type, position count, pitch, row configuration, contact type, termination method, and operating temperature range. The primary difference is product status (active versus obsolete) and regulatory compliance certifications.
Q: What is the difference between DF62B-13EP-2.2C and DF62B-13EP-2.2C(10)?
A: Both parts are electrically and mechanically identical. The sole difference is housing color: DF62B-13EP-2.2C features black housing while DF62B-13EP-2.2C(10) features white housing. Selection depends on application color requirements or design specifications.
Q: Are there packaging differences between the substitute parts?
A: Both substitute parts are supplied in bulk packaging. The original DF62-13EP-2.2C packaging specification was not provided in the technical data.
Q: Do the substitute parts meet current regulatory requirements?
A: Yes. Both DF62B-13EP-2.2C and DF62B-13EP-2.2C(10) carry ROHS3 compliance and REACH unaffected status, meeting current regulatory requirements for electronic components.
Q: Are contacts included with these connector housings?
A: No. All three parts (original and substitutes) are connector housings only. Contacts must be sourced separately and crimped into the housing according to Hirose specifications.
Q: What is the moisture sensitivity level for these parts?
A: All three parts carry MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.
