DF6-1P-3.96C Equivalent & Substitute Parts

Part Overview

The DF6-1P-3.96C is a rectangular connector housing manufactured by Hirose Electric Co Ltd, designed as a board-in male pin connector with 1 position and 3.96mm pitch. This component is classified as obsolete, which necessitates identification of active equivalent alternatives to maintain supply chain continuity and support ongoing production requirements. The part is RoHS compliant and carries an MSL rating of 1 (Unlimited), indicating minimal moisture sensitivity.

Substiute Parts

DF6-1P-3.96C

Hirose Electric Co LtdIn Stock: 1092DF6-1P-3.96C Datasheet

Current PartRFQ

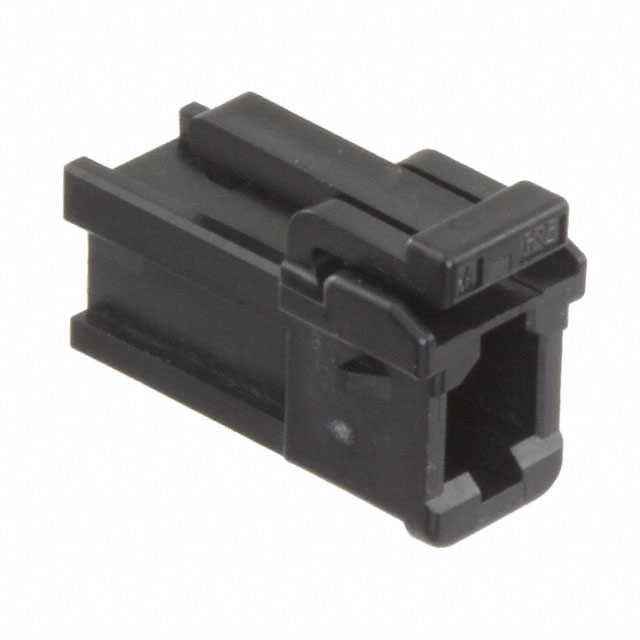

DF63-1S-3.96C

Hirose Electric Co LtdIn Stock: 1160DF63-1S-3.96C Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The DF63-1S-3.96C is identified as a manufacturer-recommended substitute for the DF6-1P-3.96C. Substitution eligibility is determined by the following critical parameters:

• Connector Category: Both parts are rectangular connectors manufactured by Hirose Electric Co Ltd
• Position Count: Both housings accommodate 1 position
• Pitch Specification: Both maintain 3.96mm pitch spacing
• Row Configuration: Both feature single-row design
• Contact Termination: Both utilize crimp termination methodology
• Electrical Compatibility: The socket contact type of the substitute is designed to mate with male pin contacts, enabling functional pairing within connector systems
• Compliance Standards: Both parts maintain RoHS compliance and MSL 1 rating

The primary distinction lies in connector type (board-in versus free-hanging socket) and contact gender (male pin versus female socket), which reflects the complementary nature of mating connector pairs rather than direct form-factor replacement.

Parameter Comparison

Engineering Selection Recommendations

The DF63-1S-3.96C is designated as the manufacturer-recommended substitute and carries active product status, ensuring ongoing availability and supply chain support. Both parts maintain equivalent compliance certifications: RoHS compliance and MSL 1 rating. The substitute part achieves ROHS3 compliance, representing current regulatory alignment. The DF63-1S-3.96C provides documented operating temperature specifications (-55°C ~ 105°C) and material composition (PBT with glass fill), offering enhanced technical transparency compared to the obsolete DF6-1P-3.96C.

Selection of the DF63-1S-3.96C is supported by manufacturer recommendation, active product status, and maintained electrical and mechanical compatibility within the 3.96mm pitch connector ecosystem.

Frequently Asked Questions (FAQ)

Q: Can the DF63-1S-3.96C directly replace the DF6-1P-3.96C in existing designs?

A: The DF63-1S-3.96C is a mating component rather than a direct form-factor replacement. The DF6-1P-3.96C is a board-mounted male pin housing, while the DF63-1S-3.96C is a free-hanging female socket housing. Both maintain 1-position, 3.96mm pitch specifications and crimp termination, enabling functional pairing within connector assemblies.

Q: What is the significance of the product status difference?

A: The DF6-1P-3.96C is classified as obsolete, indicating discontinued manufacturing and limited availability. The DF63-1S-3.96C maintains active status, ensuring current production, documented specifications, and reliable supply chain access.

Q: Are there compliance differences between these parts?

A: Both parts are RoHS compliant with MSL 1 rating. The DF63-1S-3.96C achieves ROHS3 compliance, representing alignment with current regulatory requirements. Both parts are ECCN EAR99 classified.

Q: What mounting configuration differences exist?

A: The DF6-1P-3.96C is designed for board mount installation. The DF63-1S-3.96C is configured as free-hanging in-line, providing flexibility in connector positioning within cable and harness assemblies.

Q: Are contacts included with these housings?

A: Neither the DF6-1P-3.96C nor the DF63-1S-3.96C include contacts. Contacts must be sourced separately and crimped into the housings according to Hirose specifications.
