DF60-6P-10.16DSA(26) Equivalent & Substitute Parts

Part Overview

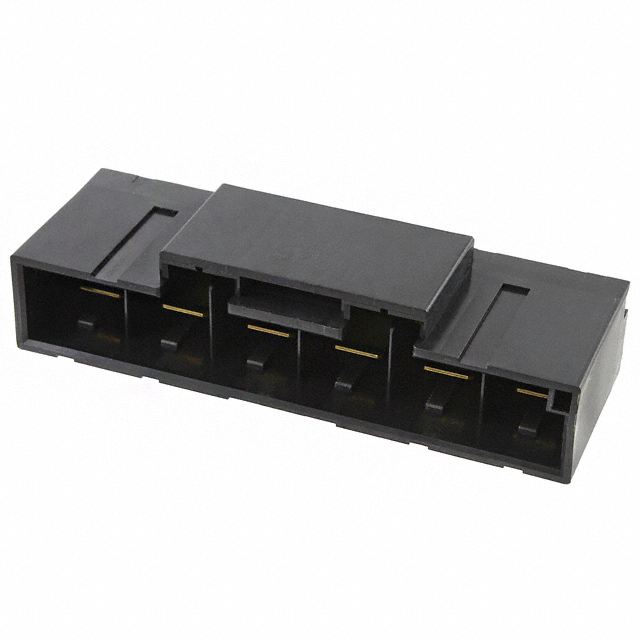

The DF60-6P-10.16DSA(26) is a rectangular connector header manufactured by Hirose Electric Co Ltd, part of the EnerBee™ DF60 series. This through-hole connector features 6 positions with 0.400" (10.16mm) pitch spacing and is designed for board-to-cable/wire applications. The part is currently listed as obsolete, making identification of active equivalent models necessary for ongoing procurement and design continuity.

Key Parameters

Parameter	Value
Manufacturer Part Number	DF60-6P-10.16DSA(26)
Manufacturer	Hirose Electric Co Ltd
Series	EnerBee™ DF60
Connector Type	Header
Number of Positions	6
Pitch - Mating	0.400" (10.16mm)
Contact Type	Male Blade
Mounting Type	Through Hole
Shrouding	Shrouded - 4 Wall
Termination	Solder
Operating Temperature	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Product Status	Obsolete

Substitute Part Grouping Explanation

The DF60-6P-10.16DSA(27) qualifies as a direct substitute based on the following critical parameters that determine functional compatibility:

Connector Series: Both parts belong to the EnerBee™ DF60 series
Number of Positions: Identical at 6 positions
Pitch - Mating: Identical at 0.400" (10.16mm)
Contact Type: Both feature Male Blade contacts
Mounting Type: Both are Through Hole
Shrouding Configuration: Both have Shrouded - 4 Wall design
Termination Method: Both use Solder termination
Operating Temperature Range: Identical at -55°C ~ 105°C
Material Flammability Rating: Both meet UL94 V-0
RoHS Compliance: Both are RoHS compliant

The primary distinction is that DF60-6P-10.16DSA(27) maintains active product status, whereas DF60-6P-10.16DSA(26) is obsolete.

Parameter Comparison

Parameter	DF60-6P-10.16DSA(26)	DF60-6P-10.16DSA(27)
Manufacturer	Hirose Electric Co Ltd	Hirose Electric Co Ltd
Series	EnerBee™ DF60	EnerBee™ DF60
Product Status	Obsolete	Active
Connector Type	Header	Header
Number of Positions	6	6
Pitch - Mating	0.400" (10.16mm)	0.400" (10.16mm)
Contact Type	Male Blade	Male Blade
Number of Rows	1	1
Style	Board to Cable/Wire	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Mounting Type	Through Hole	Through Hole
Termination	Solder	Solder
Fastening Type	Latch Holder	Latch Holder
Contact Length - Post	0.150" (3.81mm)	0.150" (3.81mm)
Insulation Height	0.846" (21.50mm)	0.846" (21.50mm)
Contact Shape	Rectangular	Rectangular
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)	8.00µin (0.203µm)
Contact Material	Copper Alloy	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Polybutylene Terephthalate (PBT)
Features	Board Guide	Board Guide
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0	UL94 V-0
Insulation Color	Black	Black
Current Rating	Varies by Wire Gauge	Varies by Wire Gauge
RoHS Status	RoHS Compliant	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)
ECCN	EAR99	EAR99
HTSUS	8536.69.4040	8536.69.4040

Engineering Selection Recommendations

The DF60-6P-10.16DSA(27) is the appropriate selection for new designs and procurement activities. This part maintains active product status with Hirose Electric Co Ltd, ensuring ongoing availability and supply chain continuity. Both parts meet identical electrical and mechanical specifications for connector pitch, position count, contact configuration, and operating temperature range.

The DF60-6P-10.16DSA(27) carries ROHS3 compliance certification, representing current regulatory alignment. Both parts maintain UL94 V-0 flammability ratings and unlimited moisture sensitivity classification, confirming suitability for standard industrial applications.

The insulation material differs between the two parts: the obsolete DF60-6P-10.16DSA(26) uses Liquid Crystal Polymer (LCP) with glass filling, while the active DF60-6P-10.16DSA(27) uses Polybutylene Terephthalate (PBT). Both materials meet the specified flammability and thermal requirements. The DF60-6P-10.16DSA(27) additionally specifies a voltage rating of 1000VAC/DC and includes contact finish thickness for post termination at 8.00µin (0.203µm).

Frequently Asked Questions (FAQ)

Q: Can DF60-6P-10.16DSA(27) be used as a direct replacement for DF60-6P-10.16DSA(26)?

A: Yes. Both connectors share identical pitch spacing (0.400"/10.16mm), position count (6), contact type (Male Blade), mounting method (Through Hole), and operating temperature range (-55°C ~ 105°C). The mechanical and electrical interfaces are compatible.

Q: What is the primary reason to transition from DF60-6P-10.16DSA(26) to DF60-6P-10.16DSA(27)?

A: The DF60-6P-10.16DSA(26) is obsolete. The DF60-6P-10.16DSA(27) maintains active product status, ensuring reliable procurement and supply availability.

Q: Are there differences in insulation material between these parts?

A: Yes. The DF60-6P-10.16DSA(26) uses Liquid Crystal Polymer (LCP) with glass filling, while the DF60-6P-10.16DSA(27) uses Polybutylene Terephthalate (PBT). Both materials satisfy the UL94 V-0 flammability requirement and the specified operating temperature range.

Q: What packaging options are available?

A: The DF60-6P-10.16DSA(26) is available in standard packaging. The DF60-6P-10.16DSA(27) is supplied in bulk packaging.

Q: Do both parts meet RoHS requirements?

A: Yes. The DF60-6P-10.16DSA(26) is RoHS Compliant. The DF60-6P-10.16DSA(27) is ROHS3 Compliant, representing current regulatory standards.

Q: What is the moisture sensitivity level for these connectors?

A: Both parts carry Moisture Sensitivity Level (MSL) 1, indicating unlimited shelf life without special storage requirements.

Q: Are there any voltage rating specifications?

A: The DF60-6P-10.16DSA(27) specifies a voltage rating of 1000VAC/DC. The DF60-6P-10.16DSA(26) does not include a stated voltage rating in the provided specifications.
