DF60-6P-10.16DS(26) Equivalent & Substitute Parts

Part Overview

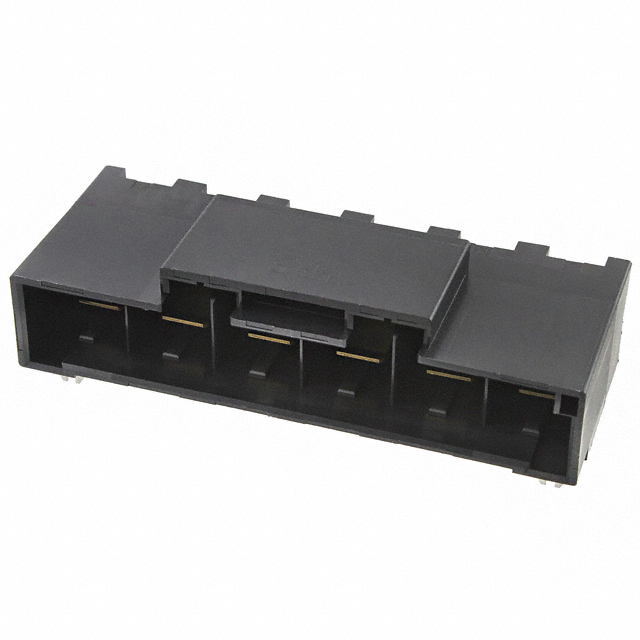

The DF60-6P-10.16DS(26) is a rectangular connector header manufactured by Hirose Electric Co Ltd, part of the EnerBee™ DF60 series. This through-hole, right-angle connector features 6 positions with 0.400" (10.16mm) pitch spacing and is designed for board-to-cable/wire applications. The part is currently in Last Time Buy status, indicating limited availability. Identifying equivalent substitute parts ensures design continuity and supply chain reliability for applications requiring this connector specification.

Substiute Parts

DF60-6P-10.16DS(26)

Hirose Electric Co LtdIn Stock: 708DF60-6P-10.16DS(26) Datasheet

Current PartRFQ

DF60-6P-10.16DS(27)

Hirose Electric Co LtdIn Stock: 1211DF60-6P-10.16DS(27) Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the DF60-6P-10.16DS(26) is determined by the following critical parameters:

• Connector Type & Series: Must be Header type from the EnerBee™ DF60 series
• Position Count & Pitch: Must maintain 6 positions with 0.400" (10.16mm) mating pitch
• Mounting Configuration: Must be Through Hole, Right Angle orientation
• Contact Specification: Must use Male Blade contacts with Rectangular shape
• Shrouding: Must feature Shrouded - 4 Wall design
• Termination & Fastening: Must use Solder termination with Latch Holder fastening
• Environmental Compliance: Must maintain UL94 V-0 flammability rating and RoHS compliance
• Operating Temperature: Must support -55°C ~ 105°C range

The substitute part DF60-6P-10.16DS(27) meets all these critical parameters while differing only in packaging format and certain secondary material specifications.

Parameter Comparison

Engineering Selection Recommendations

The DF60-6P-10.16DS(27) is a direct functional substitute for the DF60-6P-10.16DS(26). Both parts maintain identical electrical and mechanical specifications across all critical parameters including connector type, position count, pitch spacing, mounting configuration, and contact specifications.

Key selection factors:

Product Status: The DF60-6P-10.16DS(26) is designated Last Time Buy, indicating production discontinuation. The DF60-6P-10.16DS(27) maintains Active status with higher inventory availability (1172 Pcs vs 690 Pcs), providing superior supply chain continuity.

Compliance: Both parts meet UL94 V-0 flammability requirements and maintain MSL 1 (Unlimited) moisture sensitivity ratings. The DF60-6P-10.16DS(27) carries ROHS3 Compliant status, representing current regulatory alignment.

Material Specification: The primary difference lies in insulation material composition. The DF60-6P-10.16DS(26) uses Liquid Crystal Polymer (LCP) Glass Filled, while the DF60-6P-10.16DS(27) uses Polybutylene Terephthalate (PBT). Both materials satisfy the operating temperature range of -55°C ~ 105°C and UL94 V-0 requirements.

Packaging: The DF60-6P-10.16DS(26) is supplied in Tray packaging, while the DF60-6P-10.16DS(27) is supplied in Bulk packaging. This difference affects handling and storage procedures but does not impact functional performance.

For new designs or replenishment of existing applications, the DF60-6P-10.16DS(27) is the recommended selection due to active product status and improved supply availability.

Frequently Asked Questions (FAQ)

Q: Are the DF60-6P-10.16DS(26) and DF60-6P-10.16DS(27) electrically interchangeable?

A: Yes. Both parts maintain identical electrical specifications including contact type, pitch spacing, contact finish, and operating voltage/current ratings. They are electrically interchangeable in all applications.

Q: What is the significance of the different insulation materials?

A: The DF60-6P-10.16DS(26) uses Liquid Crystal Polymer (LCP) Glass Filled insulation, while the DF60-6P-10.16DS(27) uses Polybutylene Terephthalate (PBT). Both materials meet the same flammability rating (UL94 V-0) and operating temperature range (-55°C ~ 105°C). Material selection does not affect mechanical fit or electrical performance in standard applications.

Q: Does packaging format affect connector performance?

A: No. The Tray packaging of the DF60-6P-10.16DS(26) and Bulk packaging of the DF60-6P-10.16DS(27) are supply formats only. They do not affect the connector's electrical or mechanical characteristics. Packaging selection is determined by procurement and inventory management requirements.

Q: Why is the DF60-6P-10.16DS(26) marked as Last Time Buy?

A: Last Time Buy status indicates that the manufacturer is discontinuing production of this specific part number variant. The DF60-6P-10.16DS(27) remains in Active production status, making it the recommended choice for ongoing applications and new designs.

Q: Can I use the DF60-6P-10.16DS(27) as a direct replacement in existing PCB designs?

A: Yes. The DF60-6P-10.16DS(27) maintains identical mechanical dimensions, mounting configuration, and contact positioning as the DF60-6P-10.16DS(26). No PCB redesign is required for substitution.

Q: What is the difference between RoHS Compliant and ROHS3 Compliant?

A: ROHS3 Compliant represents the current regulatory standard (RoHS 3 Directive 2015/863/EU), which includes restrictions on additional substances beyond the original RoHS directive. Both designations indicate compliance with hazardous substance restrictions, with ROHS3 representing the more current regulatory framework.
