DF60-3S-10.16C Equivalent & Substitute Parts

Part Overview

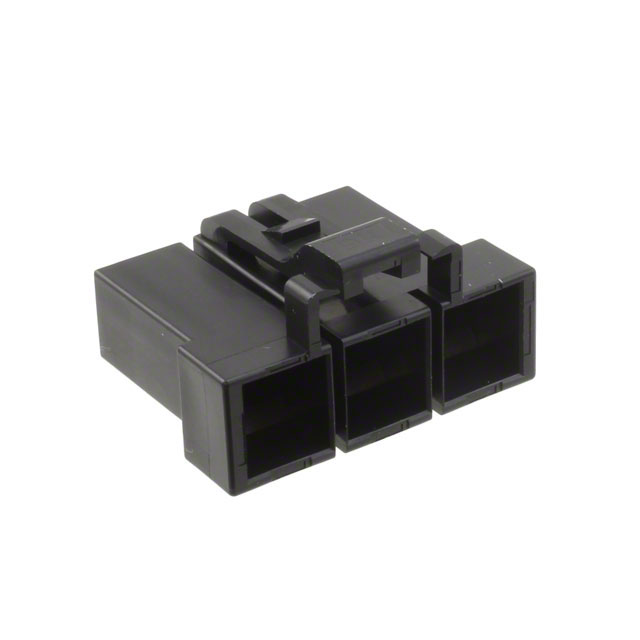

The DF60-3S-10.16C is a 3-position rectangular connector housing manufactured by Hirose Electric Co Ltd, part of the EnerBee™ DF60 series. This receptacle connector features a 0.400" (10.16mm) pitch and is designed for free hanging in-line mounting applications with crimp contact termination and latch lock fastening. The part is currently listed as obsolete, making identification of suitable alternatives necessary for ongoing system support and component procurement.

Substiute Parts

DF60-3S-10.16C

Hirose Electric Co LtdIn Stock: 1138DF60-3S-10.16C Datasheet

Current PartRFQ

DF60A-3S-10.16C

Hirose Electric Co LtdIn Stock: 980DF60A-3S-10.16C Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the DF60-3S-10.16C is determined by strict equivalence across the following critical parameters:

• Connector type (Receptacle)
• Contact type (Female Socket)
• Number of positions (3)
• Pitch specification (0.400" / 10.16mm)
• Number of rows (1)
• Mounting type (Free Hanging In-Line)
• Contact termination method (Crimp)
• Fastening type (Latch Lock)
• Color (Black)

The substitute part DF60A-3S-10.16C meets all these criteria and represents a direct functional equivalent within the EnerBee™ DF60 connector family.

Parameter Comparison

Engineering Selection Recommendations

The DF60A-3S-10.16C is the direct substitute for the obsolete DF60-3S-10.16C. Both parts share identical mechanical and electrical specifications across all critical parameters. The primary distinction is product status: the DF60A variant is currently active in production, whereas the original DF60 is obsolete.

The DF60A-3S-10.16C provides additional compliance documentation, specifically ROHS3 certification and REACH unaffected status, which may be required for new designs or regulatory compliance in certain applications. Both parts maintain the same moisture sensitivity level (MSL 1) and export classification (EAR99).

Frequently Asked Questions (FAQ)

Q: Can DF60A-3S-10.16C directly replace DF60-3S-10.16C in existing assemblies?

A: Yes. Both parts are functionally equivalent across all mechanical and electrical parameters, including connector type, contact configuration, pitch, mounting method, and termination type. The DF60A variant is the active production equivalent.

Q: What is the primary reason to transition from DF60-3S-10.16C to DF60A-3S-10.16C?

A: The original DF60-3S-10.16C is obsolete. The DF60A-3S-10.16C is the active production part within the same EnerBee™ DF60 series and provides continued component availability and supply chain support.

Q: Are there differences in operating temperature or material specifications?

A: The DF60A-3S-10.16C specifies an operating temperature range of -55°C to 105°C and uses Polybutylene Terephthalate (PBT) glass-filled insulation material. These specifications were not provided for the original DF60-3S-10.16C in the available documentation.

Q: Do both parts require separate contact procurement?

A: Yes. Both the DF60-3S-10.16C and DF60A-3S-10.16C are connector housings only. Contacts are not included and must be procured separately.

Q: What is the difference in packaging between the two parts?

A: The DF60-3S-10.16C packaging specification was not provided. The DF60A-3S-10.16C is supplied in bulk packaging.
