DF60-2S-10.16C Equivalent & Substitute Parts

Part Overview

The DF60-2S-10.16C is a 2-position rectangular connector housing manufactured by Hirose Electric Co Ltd, part of the EnerBee™ DF60 series. This receptacle connector features a 0.400" (10.16mm) pitch and is designed for crimp termination with latch lock fastening. The part is currently listed as obsolete, making identification of suitable substitutes essential for ongoing system maintenance and component procurement.

Substiute Parts

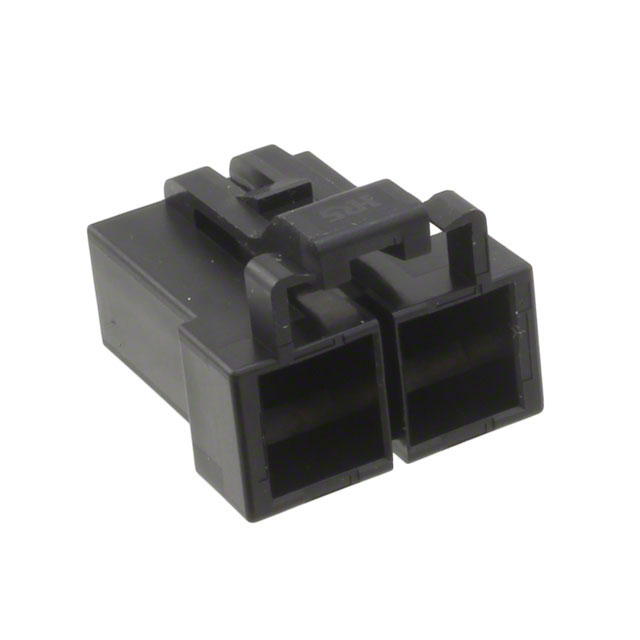

DF60-2S-10.16C

Hirose Electric Co LtdIn Stock: 1156DF60-2S-10.16C Datasheet

Current PartRFQ

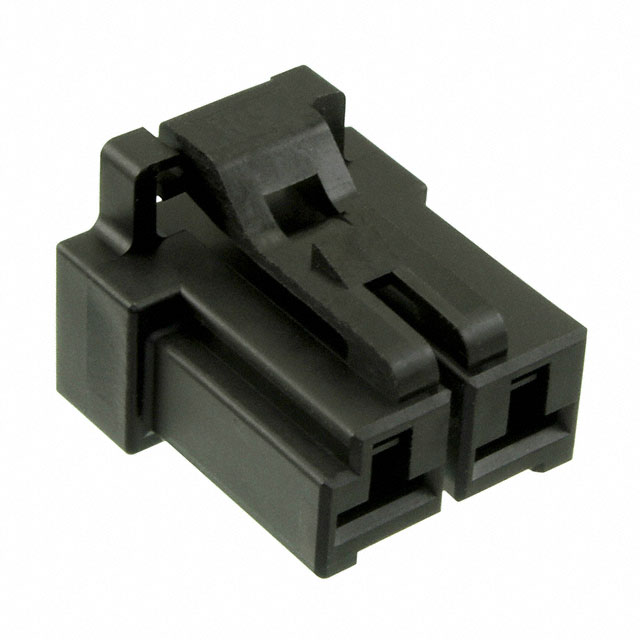

DF60A-2S-10.16C

Hirose Electric Co LtdIn Stock: 1183DF60A-2S-10.16C Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The DF60A-2S-10.16C qualifies as a direct substitute for the DF60-2S-10.16C based on the following critical parameters:

• Identical connector type (Receptacle) and contact type (Female Socket)
• Matching number of positions (2) and pitch specification (0.400" / 10.16mm)
• Same mounting configuration (Free Hanging In-Line) and termination method (Crimp)
• Identical fastening type (Latch Lock) and color (Black)
• Equivalent moisture sensitivity level (MSL 1 - Unlimited)
• Same series family (EnerBee™ DF60)

The primary distinction is product status: DF60A-2S-10.16C is active and currently in stock, whereas DF60-2S-10.16C is obsolete.

Parameter Comparison

Engineering Selection Recommendations

The DF60A-2S-10.16C is the appropriate substitute for the obsolete DF60-2S-10.16C. Both parts maintain identical electrical and mechanical specifications across all critical connector parameters. The substitute part offers the additional advantage of active product status with confirmed current availability.

The DF60A-2S-10.16C provides documented compliance certifications including ROHS3 and REACH status, along with specified operating temperature range (-55°C ~ 105°C) and insulation material composition (PBT, Glass Filled). These specifications support long-term supply chain reliability and regulatory compliance requirements.

Frequently Asked Questions (FAQ)

Q: Can DF60A-2S-10.16C directly replace DF60-2S-10.16C in existing assemblies?

A: Yes. Both parts share identical connector type, contact configuration, pitch, mounting method, and termination specifications. No design modifications are required.

Q: What is the primary reason for substitution?

A: The DF60-2S-10.16C is obsolete. The DF60A-2S-10.16C is the active equivalent with current manufacturing and inventory support.

Q: Are there packaging differences between these parts?

A: The main part packaging is not specified. The substitute part is supplied in bulk packaging. Verify packaging requirements for your procurement process.

Q: Do both parts use the same contact specifications?

A: Yes. Both are 2-position receptacles with female socket contacts, crimp termination, and latch lock fastening. Contacts are not included with either housing.

Q: What compliance certifications apply to the substitute part?

A: The DF60A-2S-10.16C is ROHS3 compliant and REACH unaffected. Operating temperature range is -55°C ~ 105°C with PBT glass-filled insulation material.
