DF60-1S-10.16C Equivalent & Substitute Parts

Part Overview

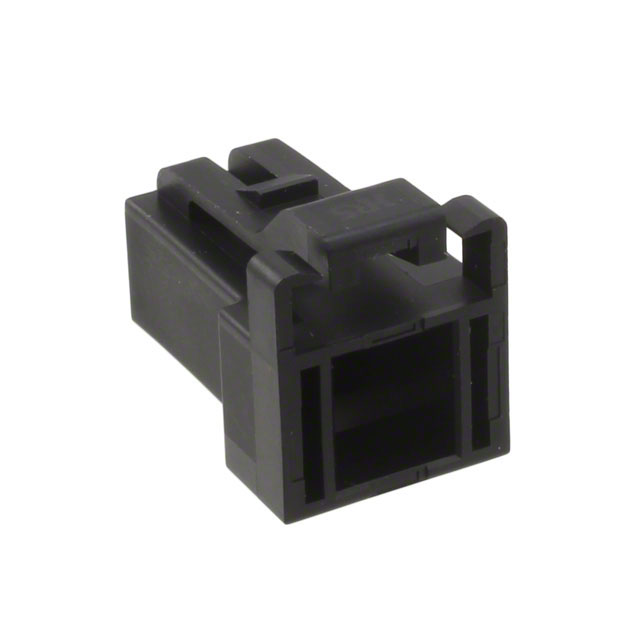

The DF60-1S-10.16C is a rectangular connector receptacle housing manufactured by Hirose Electric Co Ltd, designed for single-position applications with a 10.16mm pitch. This component is part of the EnerBee™ DF60 series and features a female socket contact configuration with crimp termination and latch lock fastening.

The DF60-1S-10.16C is currently classified as obsolete. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production and maintenance requirements for systems utilizing this connector housing.

Substiute Parts

DF60-1S-10.16C

Hirose Electric Co LtdIn Stock: 797DF60-1S-10.16C Datasheet

Current PartRFQ

DF60A-1S-10.16C

Hirose Electric Co LtdIn Stock: 1401DF60A-1S-10.16C Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the DF60-1S-10.16C is determined by strict equivalence across the following critical parameters:

• Connector type (Receptacle)
• Contact type (Female Socket)
• Number of positions (1)
• Mounting configuration (Free Hanging In-Line)
• Contact termination method (Crimp)
• Fastening mechanism (Latch Lock)
• Physical color specification (Black)
• Series compatibility (EnerBee™ DF60 family)

The substitute part DF60A-1S-10.16C maintains identical specifications across all these parameters, ensuring mechanical and electrical compatibility within the EnerBee™ DF60 connector family.

Parameter Comparison

Engineering Selection Recommendations

The DF60A-1S-10.16C is the direct substitute for the obsolete DF60-1S-10.16C. The substitute part is currently in active production status with confirmed inventory availability (1386 pcs in stock versus 784 pcs for the original part).

Both parts maintain identical mechanical and electrical specifications. The DF60A-1S-10.16C carries RoHS3 compliance and REACH unaffected status, providing regulatory alignment for new designs and ongoing applications. MSL rating of 1 (Unlimited) applies to both parts, indicating no moisture sensitivity constraints during storage or handling.

Selection of the DF60A-1S-10.16C is supported by active product status, regulatory compliance documentation, and confirmed supply chain availability.

Frequently Asked Questions (FAQ)

Q: Can the DF60A-1S-10.16C be used as a direct replacement for the DF60-1S-10.16C?

A: Yes. Both parts are identical in connector type, contact configuration, number of positions, mounting method, termination type, and fastening mechanism. The DF60A-1S-10.16C is the active production equivalent.

Q: What is the difference between the DF60-1S-10.16C and DF60A-1S-10.16C?

A: The primary difference is product status. The DF60-1S-10.16C is obsolete, while the DF60A-1S-10.16C is in active production. All functional and mechanical parameters are equivalent.

Q: Are there packaging differences between these parts?

A: The DF60-1S-10.16C is supplied in standard packaging, while the DF60A-1S-10.16C is supplied in bulk packaging. Both configurations contain identical connector housings.

Q: Do these parts require contacts to be purchased separately?

A: Yes. Both the DF60-1S-10.16C and DF60A-1S-10.16C are connector housings only. Contacts are not included and must be sourced separately for complete assembly.

Q: What is the operating temperature range for these connectors?

A: The DF60A-1S-10.16C operates across -55°C to 105°C. This specification applies to the active substitute part.

Q: Are these parts RoHS compliant?

A: The DF60A-1S-10.16C is RoHS3 compliant. Compliance documentation should be verified for the obsolete DF60-1S-10.16C through the manufacturer.
