DF60-1P-10.16DS(26) Equivalent & Substitute Parts

Part Overview

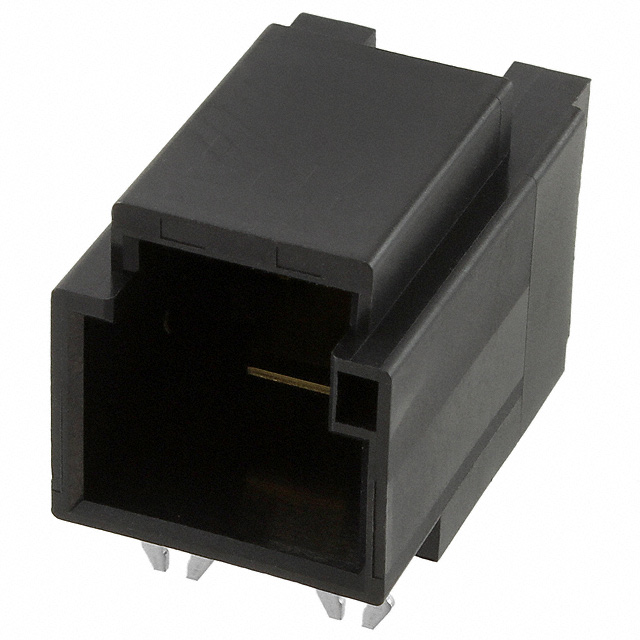

The DF60-1P-10.16DS(26) is a rectangular connector header manufactured by Hirose Electric Co Ltd, part of the EnerBee™ DF60 series. This through-hole, right-angle connector is designed for board-to-cable/wire applications with a single position and shrouded 4-wall construction. The part is currently in Last Time Buy status, indicating end-of-life production. Identifying equivalent substitute parts is necessary to ensure design continuity and maintain supply chain reliability for ongoing production and maintenance requirements.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Blade
Number of Positions	1
Number of Rows	1
Mounting Type	Through Hole, Right Angle
Shrouding	Shrouded - 4 Wall
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.150" (3.81mm)
Insulation Height	0.683" (17.35mm)
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Operating Temperature Range	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
RoHS Status	RoHS Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

The DF60-1P-10.16DS(27) qualifies as a direct substitute for the DF60-1P-10.16DS(26) based on the following critical parameters that determine functional equivalence:

Connector Type, Contact Type, and Position Configuration: Both parts are single-position male blade headers
Mounting and Orientation: Both feature through-hole, right-angle mounting with identical shrouded 4-wall construction
Termination and Fastening: Both use solder termination with latch holder fastening
Physical Dimensions: Contact post length (0.150" / 3.81mm) and insulation height (0.683" / 17.35mm) are identical
Contact Material and Finish: Both use copper alloy with gold mating surface finish
Operating Environment: Both support -55°C ~ 105°C temperature range and UL94 V-0 flammability rating
Regulatory Compliance: Both are RoHS compliant with MSL 1 rating

The primary differences between these parts are packaging format (Tray vs. Bulk), insulation material composition, product status, and certain post-finish specifications. These differences do not affect functional interchangeability in the application.

Parameter Comparison

Parameter	DF60-1P-10.16DS(26)	DF60-1P-10.16DS(27)
Manufacturer	Hirose Electric Co Ltd	Hirose Electric Co Ltd
Series	EnerBee™ DF60	EnerBee™ DF60
Connector Type	Header	Header
Contact Type	Male Blade	Male Blade
Number of Positions	1	1
Number of Rows	1	1
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Termination	Solder	Solder
Fastening Type	Latch Holder	Latch Holder
Contact Length - Post	0.150" (3.81mm)	0.150" (3.81mm)
Insulation Height	0.683" (17.35mm)	0.683" (17.35mm)
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)	8.00µin (0.203µm)
Contact Material	Copper Alloy	Copper Alloy
Operating Temperature Range	-55°C ~ 105°C	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0	UL94 V-0
Insulation Color	Black	Black
RoHS Status	RoHS Compliant	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)
Packaging	Tray	Bulk
Product Status	Last Time Buy	Active
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Polybutylene Terephthalate (PBT)
Contact Finish - Post	Not specified	Gold
Contact Finish Thickness - Post	Not specified	8.00µin (0.203µm)
Voltage Rating	Not specified	1000VAC/DC

Engineering Selection Recommendations

The DF60-1P-10.16DS(27) is the recommended substitute for the DF60-1P-10.16DS(26). The substitute part maintains functional equivalence across all critical electrical and mechanical parameters while offering the advantage of Active product status, ensuring continued availability and supply chain stability. The DF60-1P-10.16DS(27) carries ROHS3 compliance and includes documented voltage rating specifications (1000VAC/DC), providing enhanced regulatory clarity for new designs and ongoing production. Both parts meet identical environmental and safety certifications, including UL94 V-0 flammability rating and MSL 1 moisture sensitivity classification.

Frequently Asked Questions (FAQ)

Q: Are DF60-1P-10.16DS(26) and DF60-1P-10.16DS(27) mechanically interchangeable?

A: Yes. Both parts share identical mounting type (through-hole, right-angle), contact post length (0.150" / 3.81mm), insulation height (0.683" / 17.35mm), and shrouding configuration (4-wall). They are mechanically interchangeable in board-level applications.

Q: What is the difference in insulation material between these parts?

A: The DF60-1P-10.16DS(26) uses Liquid Crystal Polymer (LCP) with glass filling, while the DF60-1P-10.16DS(27) uses Polybutylene Terephthalate (PBT). Both materials meet UL94 V-0 flammability requirements and operate across the same temperature range (-55°C ~ 105°C).

Q: Does packaging format affect electrical performance?

A: No. The Tray packaging of DF60-1P-10.16DS(26) and Bulk packaging of DF60-1P-10.16DS(27) are logistics and handling considerations only. Electrical and mechanical performance remain identical.

Q: Why is DF60-1P-10.16DS(27) listed as Active while DF60-1P-10.16DS(26) is Last Time Buy?

A: Product status reflects manufacturing lifecycle. The DF60-1P-10.16DS(26) has reached end-of-life production, while DF60-1P-10.16DS(27) remains in active production, ensuring long-term supply availability.

Q: Are there compliance differences between these parts?

A: Both parts are RoHS compliant. The DF60-1P-10.16DS(27) carries ROHS3 designation, representing the current RoHS compliance standard. Both parts have MSL 1 (Unlimited) moisture sensitivity rating and meet identical environmental specifications.

Q: What is the voltage rating for these connectors?

A: The DF60-1P-10.16DS(27) is rated for 1000VAC/DC. The DF60-1P-10.16DS(26) does not have a documented voltage rating in the provided specifications.
