DF5-1822SCF(51) Equivalent & Substitute Parts

Part Overview

The DF5-1822SCF(51) is a socket contact connector manufactured by Hirose Electric Co Ltd, designed for 18-22 AWG wire gauges with crimp termination and tin contact finish. This component is classified as obsolete, which necessitates identification of active equivalent parts to maintain supply chain continuity and ensure design compatibility in applications requiring rectangular connector socket contacts.

Substiute Parts

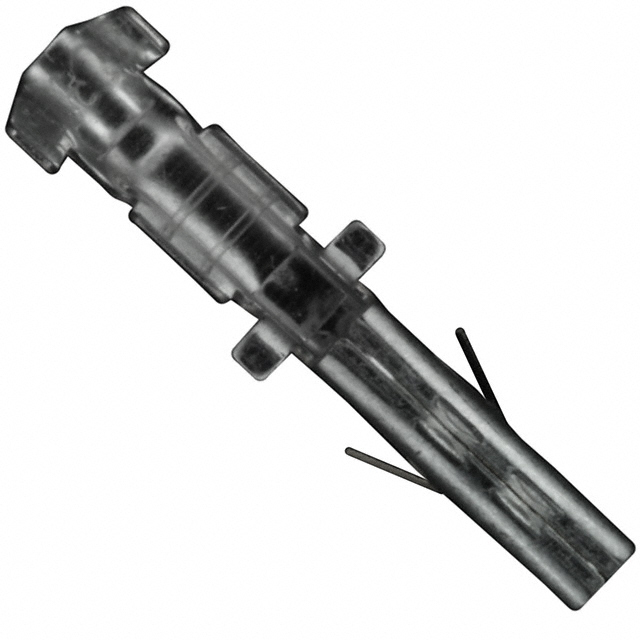

DF5-1822SCF(51)

Hirose Electric Co LtdIn Stock: 973DF5-1822SCF(51) Datasheet

Current PartRFQ

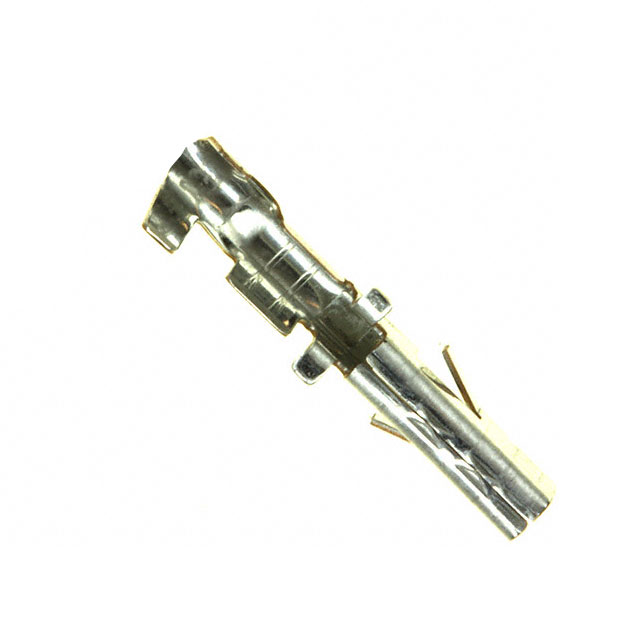

DF5-1822SCF

Hirose Electric Co LtdIn Stock: 10169DF5-1822SCF Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the DF5-1822SCF(51) is determined by strict equivalence across the following critical parameters:

• Series designation (DF5)
• Socket contact type
• Crimp termination method
• Wire gauge specification (18-22 AWG)
• Tin contact finish
• Base product number (DF5-1822)
• Moisture sensitivity level (MSL 1)

The direct substitute DF5-1822SCF maintains identical electrical and mechanical specifications while offering active product status and improved inventory availability.

Parameter Comparison

Engineering Selection Recommendations

The DF5-1822SCF serves as the direct functional equivalent to the obsolete DF5-1822SCF(51). Both components share identical electrical and mechanical specifications within the DF5 rectangular connector series. The substitute part offers the following advantages:

• Active product status ensures continued manufacturer support and long-term availability
• RoHS compliance certification provides regulatory alignment for applications subject to hazardous substance restrictions
• Significantly higher inventory levels (10119 units versus 877 units) support production scheduling and supply chain reliability
• Identical MSL rating, contact specifications, and termination method ensure drop-in compatibility

Selection of the DF5-1822SCF is appropriate for all applications currently specified with the DF5-1822SCF(51).

Frequently Asked Questions (FAQ)

Q: Are DF5-1822SCF(51) and DF5-1822SCF electrically and mechanically identical?

A: Yes. Both components are socket contacts within the DF5 series, rated for 18-22 AWG wire gauges with crimp termination and tin finish. Electrical and mechanical specifications are equivalent.

Q: What is the significance of the "(51)" designation in DF5-1822SCF(51)?

A: The "(51)" suffix typically indicates a specific packaging or manufacturing variant. The base product number DF5-1822 and core specifications remain unchanged. The substitute DF5-1822SCF provides identical functionality.

Q: Does the packaging difference affect compatibility?

A: Packaging format (Cut Tape versus unspecified) does not affect component performance or electrical characteristics. Packaging selection is determined by assembly process requirements and inventory management practices.

Q: Is RoHS compliance required for my application?

A: RoHS compliance is a regulatory requirement for products sold in specific markets. The substitute DF5-1822SCF carries RoHS Compliant certification, while the main part status is not specified. Verify regulatory requirements for your end application.

Q: Can I use DF5-1822SCF in existing designs specified for DF5-1822SCF(51)?

A: Yes. Identical specifications across wire gauge, contact termination, finish, and MSL rating support direct substitution without design modification.
